30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) AIR INTAKE/FILTRATION ASSEMBLY KOHLER ENGINE CH20QS-64678 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

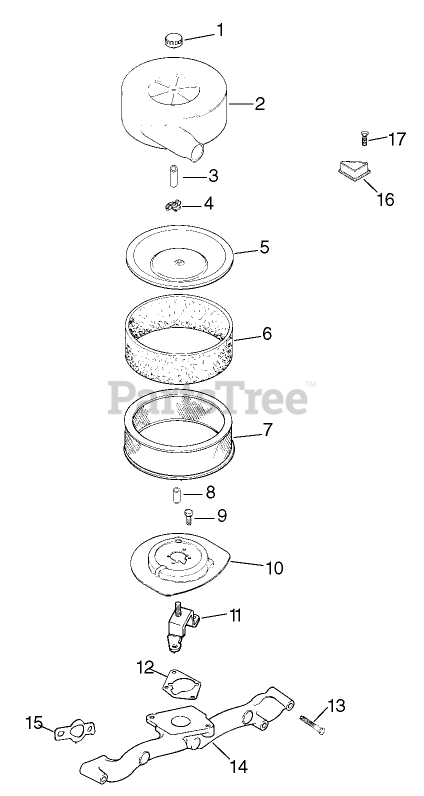

AIR INTAKE/FILTRATION ASSEMBLY KOHLER ENGINE CH20QS-64678 Parts Diagram

  • Title

1

Kohler 12 341 01-S

Knob-Cover,AirCleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

2

Kohler 24 096 54-S

Cover-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$182.99

$

Usually ships in 2-5 days

0

3

Kohler 231032-S

Seal-Breather

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

In Stock, only 2 left!

0

4

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

5

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

6

Kohler 24 083 02-S

Element-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

Usually ships in 2-5 days

0

7

Kohler 47 083 03-S

Element-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

In Stock, Qty 20+

0

8

Kohler 230046-S

Seal

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

9

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

10

Kohler 24 126 54-S

Bracket-Cleaner, Air
(Superseded to 24 126 208-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$51.99

$

Usually ships in 2-5 days

0

11

Kohler 24 094 05-S

Base-Air Cleaner
(Superseded to 24 094 91-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$71.99

$

Usually ships in 2-5 days

0

12

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

13

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

14

Kohler 24 164 14-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

15

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 9

0

16

Kohler 24 096 17-S

COVER-HOUSING, BLOWER
(Superseded to 24 096 160-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

17

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

Kohler 24 431 01-S

Sleeve-Insulating
(Superseded to 24 431 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

Kohler 24 431 01-S

Sleeve-Insulating
(Superseded to 24 431 02-S)

Note: Not illustrated

$6.49

$

In Stock, only 1 left!

0

Kohler 24 113 14-S

Decal-Maintenance,Engine

Note: Not illustrated

$

$

Not available

Kohler 24 113 14-S

Decal-Maintenance,Engine

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
