30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) CYLINDER HEAD, VALVE & BREATHER(CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

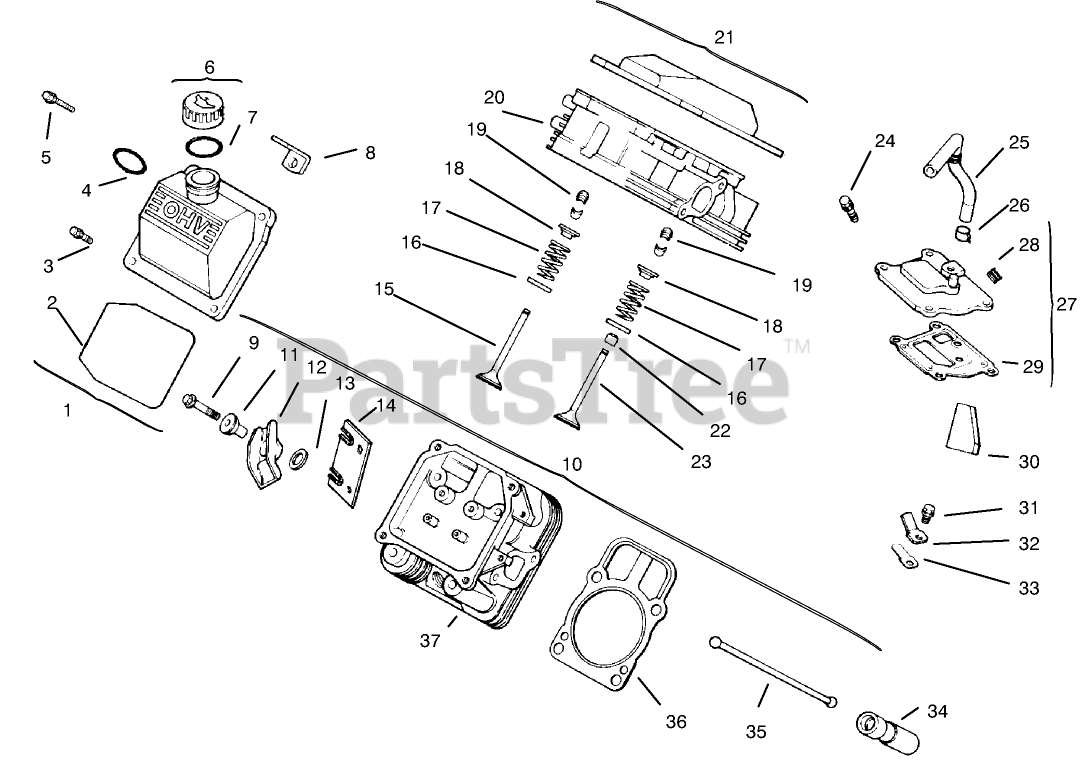

CYLINDER HEAD, VALVE & BREATHER(CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Kohler 24 755 75-S

Kit-Valve Cover (Incl. Ref. #2-4)
(Superseded to 24 755 140-S)

$36.99

$

In Stock, only 1 left!

0

2

Toro 24 153 12-S

"O"Ring

$

$

Currently unavailable

3

Kohler 24 086 32-S

Screw-Shoulder (M6x1.0x30)

$2.99

$

In Stock, Qty 13

0

4

Kohler 24 153 09-S

O-Ring
(Superseded to 24 153 32-S)

$2.49

$

In Stock, only 4 left!

0

5

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

$5.99

$

In Stock, Qty 5

0

6

Kohler 25 755 13-S

Kit-Oil Fill Cap (Incl. Ref. #7)

$13.99

$

In Stock, only 1 left!

0

7

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

$

$

Not available

9

Toro M-0640034-S

Screw

$

$

Currently unavailable

10

Toro 24 755 61-S

Kit-Valve Train (Incl. Ref. # 11-14 & 35)

$

$

Currently unavailable

11

Toro 24 194 02-S

Pivot-Rocker Arm

$

$

Currently unavailable

12

Toro 24 186 03-S

Arm-Rocker

$

$

Currently unavailable

13

Toro M-0631005-S

Washer-Flat

$

$

Currently unavailable

14

Toro 24 146 09-S

Plate-Guide

$

$

Currently unavailable

15

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

$15.99

$

In Stock, Qty 7

0

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

16

Kohler 235011-S

RETAINER-SPRING

$6.49

$

In Stock, only 2 left!

0

17

Kohler 24 089 02-S

SPRING-VALVE

$7.99

$

In Stock, only 2 left!

0

18

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 9

0

19

Kohler 12 755 03-S

RETAINER KIT

$5.99

$

In Stock, only 3 left!

0

20

Kohler 24 318 09-S

#1 Cylinder Head ASM
(Superseded to 24 318 68-S)

$

$

Not available

21

Kohler 24 755 74-S

Kit-Valve Cover (Incl. Ref. # 2 & 3)
(Superseded to 24 755 141-S)

$35.99

$

In Stock, only 3 left!

0

22

Kohler 24 032 05-S

Seal-Stem, Valve
(Superseded to 66 032 05-S)

$11.99

$

Usually ships in 2-5 days

0

23

Kohler 24 017 01-S

VALVE-INTAKE (STD)

$30.99

$

In Stock, Qty 20+

0

Kohler 24 017 02-S

VALVE-INTAKE (.25)

$

$

Not available

24

Toro M-0645020-S

Screw

$

$

Currently unavailable

25

Toro 24 326 06-S

Hose-Breather

$

$

Currently unavailable

26

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 2 left!

0

27

Kohler 24 033 01-S

Kit-Breather w/Plug (Incl. Ref. # 28 & 29)

$31.99

$

In Stock, only 2 left!

0

28

Kohler X-75-23-S

Plug
(Superseded to 25 139 60-S)

$3.49

$

In Stock, only 2 left!

0

29

Kohler 24 041 23-S

Gasket-Breather
(Superseded to 24 041 67-S)

$13.99

$

In Stock, only 4 left!

0

30

Kohler 24 050 01-S

Filter-Breather
(Superseded to 24 050 11-S)

$2.49

$

In Stock, only 2 left!

0

31

Toro M-0545010-S

Screw

$

$

Currently unavailable

32

Kohler 12 018 01-S

Retainer-Reed, Breather
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 8

0

33

Kohler 24 402 03-S

REED-BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 10

0

34

Toro 12 351 01-S

Lifter-Valve

$

$

Currently unavailable

35

Toro 24 411 04-S

Rod-Push

$

$

Currently unavailable

36

Kohler 24 041 08-S

Gasket-Head, Cylinder
(Superseded to 24 841 01-S)

$45.99

$

In Stock, only 4 left!

0

37

Kohler 24 318 10-S

#2 Cylinder Head ASM
(Superseded to 24 318 150-S)

$240.99

$

In Stock, only 1 left!

0
