30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) BAFFLES & SHROUD(CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

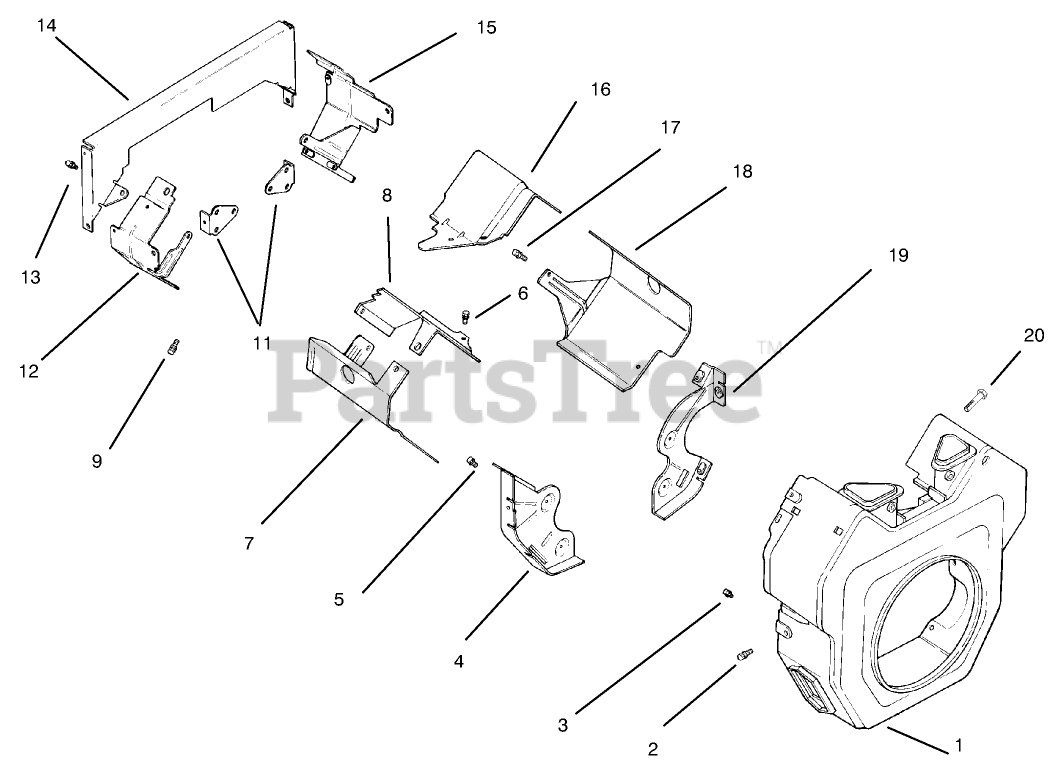

BAFFLES & SHROUD(CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Toro 24 027 21-S

Housing-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

Toro SM-0545016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

Toro M-0551016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

Toro 24 146 02-S

Plate-Backing #2 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

5

Toro M-0645016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

6

Toro M-0645016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

8

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

9

Toro M-0545010-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

10

Kohler 24 755 14-S

Kit-"Q"Duct (Incl. Ref. #11-15)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$262.99

$

Usually ships in 2-5 days

0

11

Kohler 24 126 04-S

Bracket-Support

Note: Call PartsTree Customer Service for more information on Kohler Parts

$21.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 12-S

Baffle-Air, Ducted (No. 1 side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$64.99

$

Usually ships in 2-5 days

0

13

Toro M-0639010-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

14

Kohler 24 146 04-S

Plate-Air Backing, Ducted

Note: Call PartsTree Customer Service for more information on Kohler Parts

$55.99

$

Usually ships in 2-5 days

0

15

Kohler 24 063 13-S

Baffle-Air, Ducted (No. 2 side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$61.99

$

Usually ships in 2-5 days

0

16

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

17

Toro SM-0545016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

18

Kohler 24 063 08-S

Baffle-Cylinder Barrel #1 side
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

19

Kohler 24 146 08-S

Plate-Backing #1 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Toro M-0545020-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable
