30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 200000001 - 200999999) (2000) DIFFERENTIAL ASSEMBLY NO. 1310-005 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

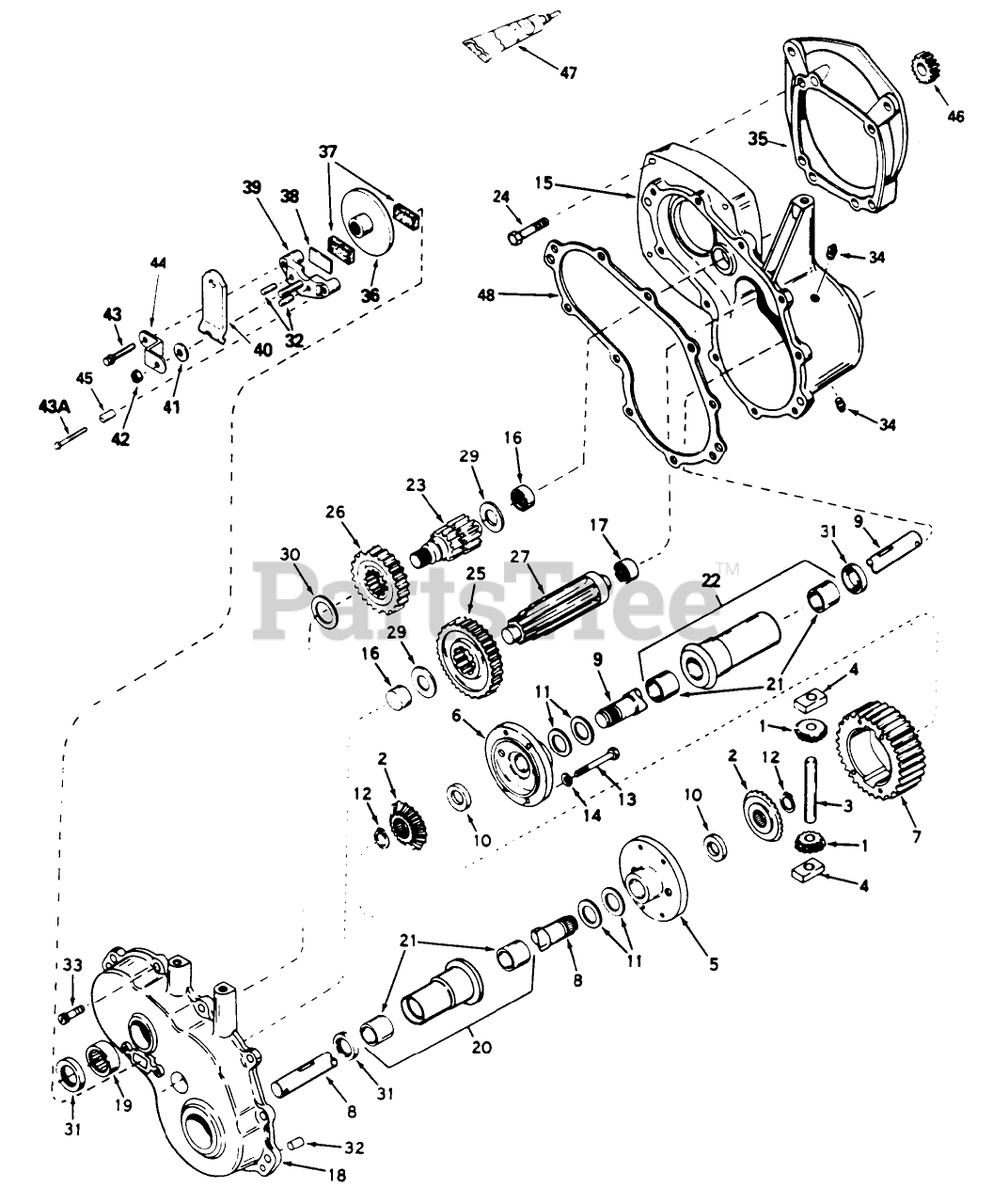

DIFFERENTIAL ASSEMBLY NO. 1310-005 Parts Diagram

  • Title

1

Toro 778197

Pinion-Bevel

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

2

Toro 778366

Gear-Bevel

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

3

Toro 786019

Pin-Drive

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

4

Toro 786027

Biock-Drive

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

5

Toro 774028A

Carrier-Differential

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

6

Toro 774029A

Carrier-Differential

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

7

Toro 778033A

Gear-Ring

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

8

Toro 775036

Axle-16-5/8"

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

9

Toro 775037

Axle-21-57/64"

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

10

Toro 780107

Washer

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

11

Toro 780042

Washer

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

12

Toro 792018

Ring-Snap

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

13

Toro 792020

Screw-Hex Hd.

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

14

Toro 792006

Lockwasher

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

15

Toro 770080A

Case Assembly (Incl. Ref. #16 & 17)

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

16

Toro 780013

Bearing

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

17

Toro 780088

Bearing-Needle

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

18

Toro 772085

Cover Assembly (Incl. Ref. #16 & 19)

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

19

Toro 780089

Bearing Needle

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

20

Toro 782041A

Housing Assembly-6-5/8" (Incl. Ref. #21)

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

21

Toro 780054

Bushing

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

22

Toro 782042A

Housing Assembly-8-5/8" (Incl. Ref. #21)

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

23

Toro 776245

Shaft-Brake

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

24

Toro 792120

Screw-Hex Hd.

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

25

Toro 778036

Gear-Output

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

26

Toro 778037

Gear-Spur

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

27

Toro 776244

Shaft-Output

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

29

Toro 780001

Washer

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

30

Toro 780090

Washer

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

31

Toro 788008

Seal-Oil

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

32

Toro 786026

Dowel Pin

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

33

Toro 792046

Screw-Thread Forming

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

34

Toro 792122

Plug-Pipe

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

35

Toro 786112

Plate-Adapter

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

36

Toro 790027

Disc-Brake

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

37

Toro 790021

Pad-Brake (Pack of 2)

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

38

Toro 790007

Brake Pad Plate

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

39

Toro 790025

Nozzle-Carburetor

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

40

Toro 790010

Lever-Brake

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

41

Toro 792076A

Washer

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

42

Toro 792075

Locknut

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

43

Toro 792073A

Screw

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

43A

Toro 792085A

Screw-Thread Forming

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

44

Toro 786086

Bracket

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

45

Toro 786066

Spacer

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

46

Toro 778194

Gear-Spur 22T

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

47

Toro 510334A

Gasket Eliminator

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

48

Toro 788044

Gasket

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

Toro 730229A

Gear Oil

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable

Toro 799025

Kit-Axle (Incl. 1, 2, 8, 9, 12 & 31)

Note: Peerless Differential Obtain parts from Peerless

$

$

Currently unavailable
