30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 099000001 - 099999999) (1999) ELECTRIC SCHEMATIC Parts Diagram

Groundsmaster Rear-Engine Riding Mower

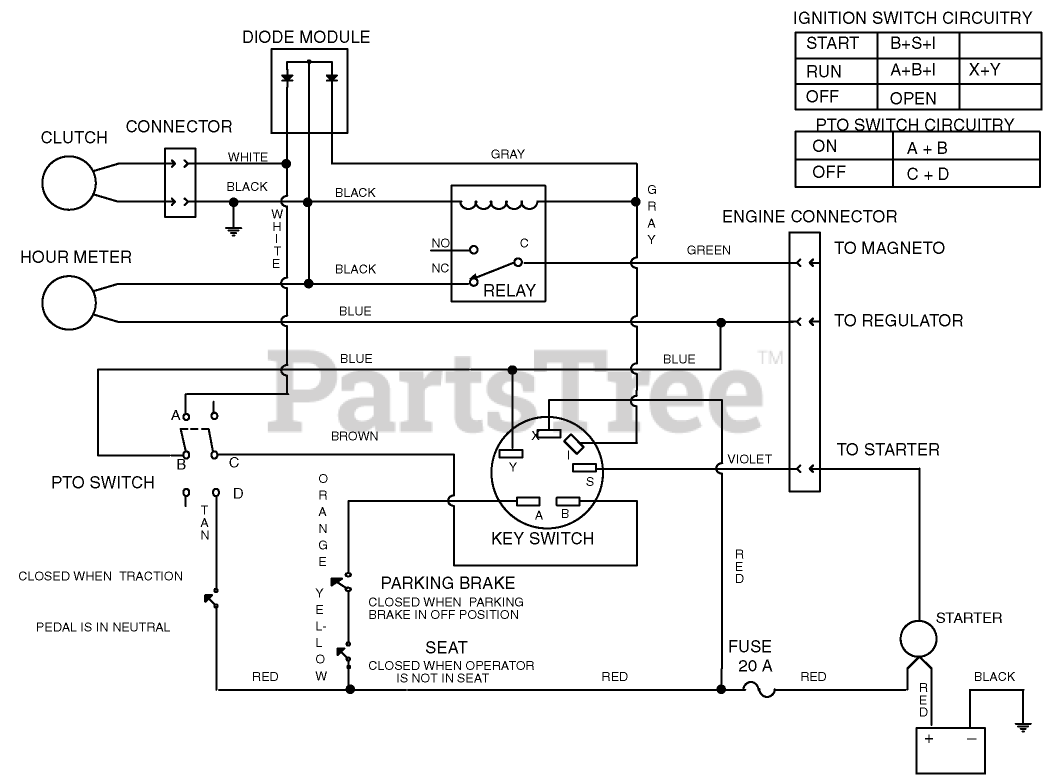

ELECTRIC SCHEMATIC Parts Diagram

  • Title

Toro 94-5848

WIRE HARNESS PL120

$

$

Not available

Toro 94-5849

DIODE - CIRCUIT BOARD

Note: Not illustrated

$

$

Not available
