30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) HOOD, FUEL TANK & HYDRAULIC RESERVOIR ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

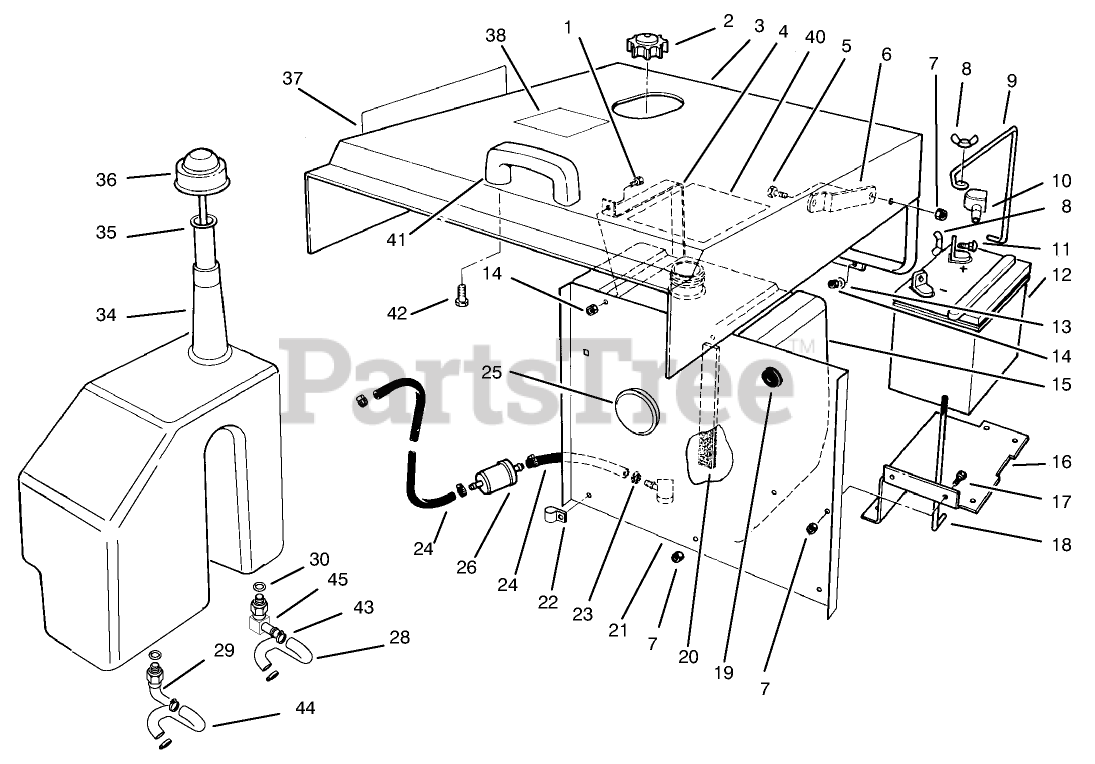

HOOD, FUEL TANK & HYDRAULIC RESERVOIR ASSEMBLY Parts Diagram

  • Title

1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

3

Toro 14-4109

HOOD-118 - SERVICE

$

$

Not available

4

Toro 54-1880

Strap-Fuel Tank
(Superseded to 54-1880-03)

$

$

Not available

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 54-1860

UPPER HOOD STOP

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

9

Toro 54-1260

BATTERY CLAMP

$

$

Not available

10

Toro 77-0981

BOOT-TERMINAL, RED

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

12

Toro 82-4640

Battery
(Superseded to 104-8162)

$

$

Not available

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 62-4040

TANK-FUEL

$

$

Not available

16

Toro 54-1850

Support-Battery
(Superseded to 54-1850-03)

$

$

Not available

17

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

19

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

20

Toro 54-1890

TANK SPONGE

$

$

Not available

21

Toro 92-6267

Shield-Heat
(Superseded to 92-6267-03)

$

$

Not available

22

Toro 2412-100

CLAMP

$

$

Not available

23

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

24

Toro 92-6283

GAS HOSE
(Superseded to 109-0294)

$6.99

$

In Stock, only 1 left!

0

25

Toro 92-6274

PLUG BUTTON CAP

$

$

Not available

26

Toro 94-9695

FILTER - FUEL

$16.99

$

In Stock, Qty 5

0

28

Toro 98-2853

HOSE

$

$

Not available

29

Toro 94-7691

Adapter-Hydraulic (Incl. Ref. #30)

$

$

Not available

30

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

34

Toro 98-0781

RESERVOIR - OIL

$531.99

$

Usually ships in 3-6 days

0

35

Toro 29-0590

SCREEN-FILLER

$195.99

$

Usually ships in 3-6 days

0

36

Toro 36-4950

CAP WA

$

$

Not available

37

Toro 94-5410

DECAL - GM 120

$117.99

$

Usually ships in 3-6 days

0

38

Toro 92-6291

DECAL - CAUTION FUEL

$

$

Not available

40

Toro 92-6288

DECAL - SERVICE PL120

$

$

Not available

41

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

42

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

43

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

44

Toro 98-2852

HOSE-RESV TO PUMP

$

$

Not available

45

Toro 98-2876

Adapter-Hydraulic (Incl. Ref. #30)

$125.99

$

Usually ships in 3-6 days

0

Toro 68-7330

DECAL - CAUTION

Note: Not illustrated

$

$

Not available
