30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) STARTER Parts Diagram

Groundsmaster Rear-Engine Riding Mower

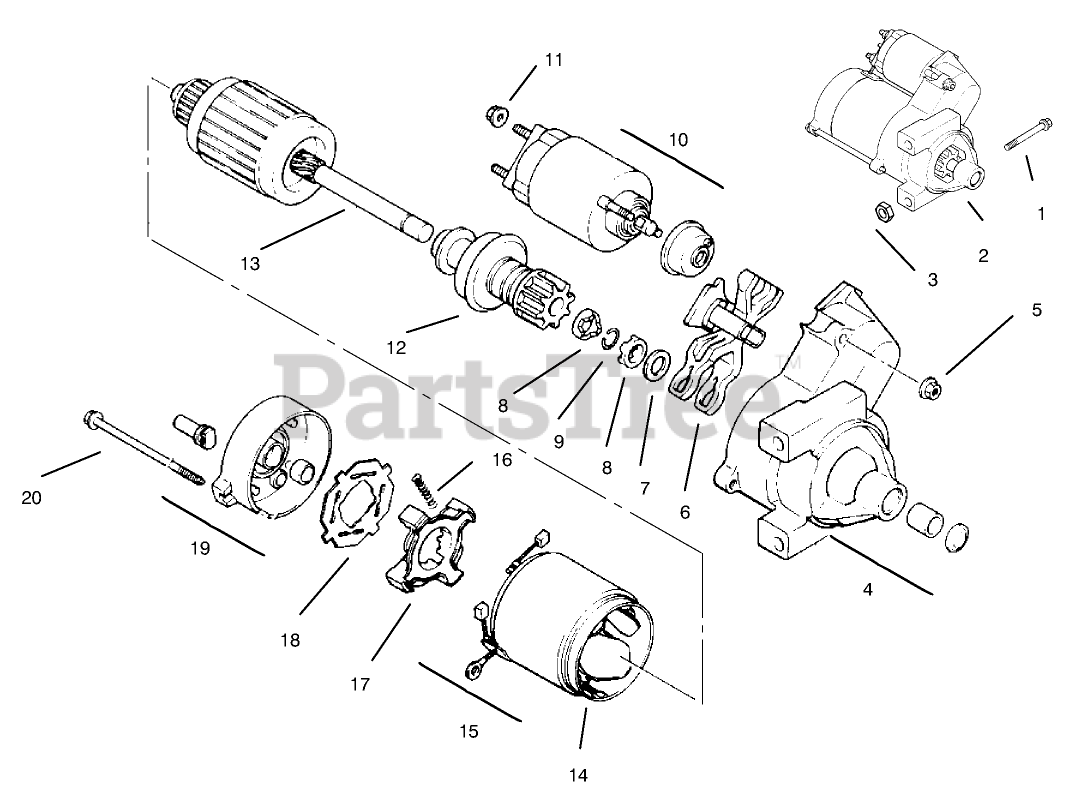

STARTER Parts Diagram

  • Title

1

Toro SM-0839080

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

2409801

Starter-Solenoid Shift (Incl. Ref. # 4-20)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Toro M-0841080

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

4

2408104

Cap-Drive End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

5210010

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1209010

Lever Starter Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

5246814

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

5210008

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

5214103

Ring-Retainer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

5243502

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

5210009

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

1223901

Drive Pinion

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

1217003

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

1247101

Frame

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

5222101

Kit-Brush (Incl. Ref. # 16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

5208909

Spring Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

5232303

Holder-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

5216801

Insulator

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

1230101

Cap-Commutator End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

5221105

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
