30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) PARKING BRAKE & LIFT FRAME ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

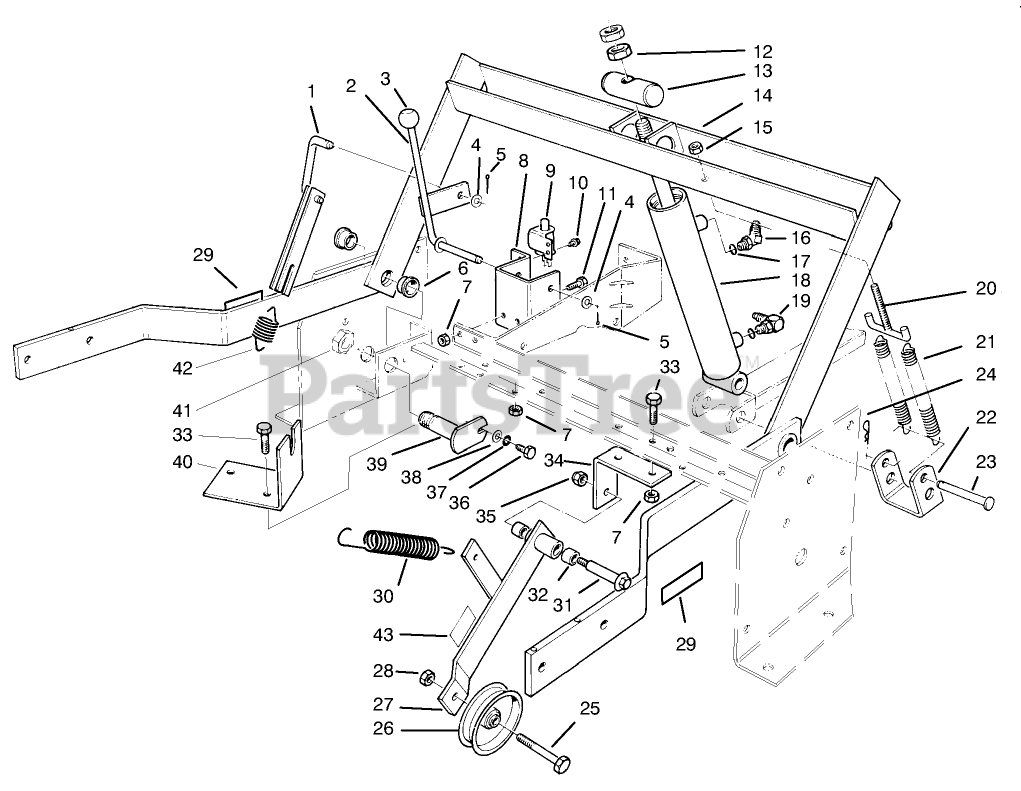

PARKING BRAKE & LIFT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 54-2120

Link-Parking Brake
(Superseded to 54-2120-03)

$

$

Not available

2

Toro 54-2110

Brake Lever
(Superseded to 54-2110-03)

$

$

Not available

3

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

6

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 54-1270

Bracket-Parking Brake
(Superseded to 54-1270-03)

$

$

Not available

9

Toro 55-7120

SWITCH-BRAKE, PARKING

$50.99

$

Usually ships in 3-6 days

0

10

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

11

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

13

Toro 54-2000

CYL.PIVOT PIN

$

$

Not available

14

Toro 66-1570

Frame-Lift (Incl. Ref. #6)
(Superseded to 66-1570-01)

$

$

Not available

15

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

16

Toro 353-431

FITTING-45 DEG

$96.99

$

Usually ships in 3-6 days

0

17

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

18

Toro 54-0150

CYLINDER - LIFT

$

$

Not available

19

Toro 353-375

FITTING-ELBOW, 90

$57.99

$

Usually ships in 3-6 days

0

20

Toro 56-3320

T-HOOK W A

$91.99

$

Usually ships in 3-6 days

0

21

Toro 56-2760

SPRING_EXTENSION

$

$

Not available

22

Toro 56-3370

SPRING BRACKET

$

$

Not available

23

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

24

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

25

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 36-3220

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

27

Toro 12-1109

Lever-Idler (Incl. Ref. #43)

$

$

Not available

28

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

29

Toro 61-3610

WARNING DECAL

$

$

Not available

30

Toro 54-1170

IDLER EXT SPRING

$49.99

$

Usually ships in 3-6 days

0

31

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

32

Toro 256-154

BUSHING

$

$

Not available

33

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 55-7310

JACKSHFT IDLR BRKT

$

$

Not available

35

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

36

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

37

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 54-2100

Pin-Pivat
(Superseded to 54-2100-01)

$

$

Not available

40

Toro 56-6920

TRACT CABLE BRKT

$

$

Not available

41

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 7

0

42

Toro 54-0960

PARK BRAKE SPRING

$

$

Not available

43

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0
