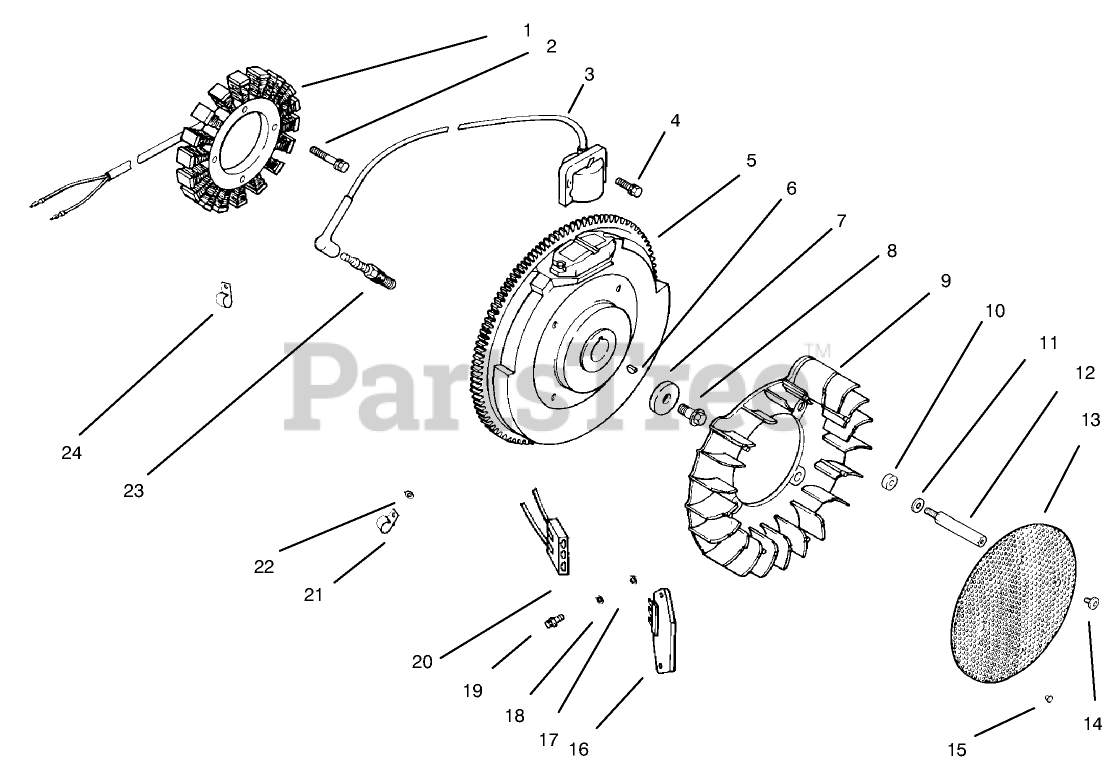

30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) IGNITION AND CHARGING SYSTEM Parts Diagram

Groundsmaster Rear-Engine Riding Mower

IGNITION AND CHARGING SYSTEM Parts Diagram

  • Title

1

2408501

Stator-15 Amp

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 01

Module-Ignition
(Superseded to 24 584 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

5

2402501

Flywheel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 01

Fan
(Superseded to 24 157 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$46.99

$

In Stock, only 4 left!

0

10

1211201

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

12

2407201

Stud

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

2416213

Screen-Grass

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler M-0657010

Screw
(Superseded to M-657010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$130.99

$

Usually ships in 2-5 days

0

15

2508643

Screw-Set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

18

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

21

Kohler 235173

Clip
(Superseded to 235173-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

22

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

23

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 20+

0

24

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

2417640

Harness-Wire

Note: Not illustrated

$

$

Not available

2417640

Harness-Wire

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2451804

Lead-Green

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2451804

Lead-Green

Note: Not illustrated

$

$

Not available

1

2406811

Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0829033

Stud
(Superseded to M-829033)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 10

0

3

Kohler 24 041 02

Gaskt-Exhaust
(Superseded to 24 041 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

5

Kohler M-0839020

Screw, tank bracket - starter end
(Superseded to M-839020-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0
