30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) BAFFLES & SHROUD-KOHLER ENGINE MODEL CH20QS PS 64556 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

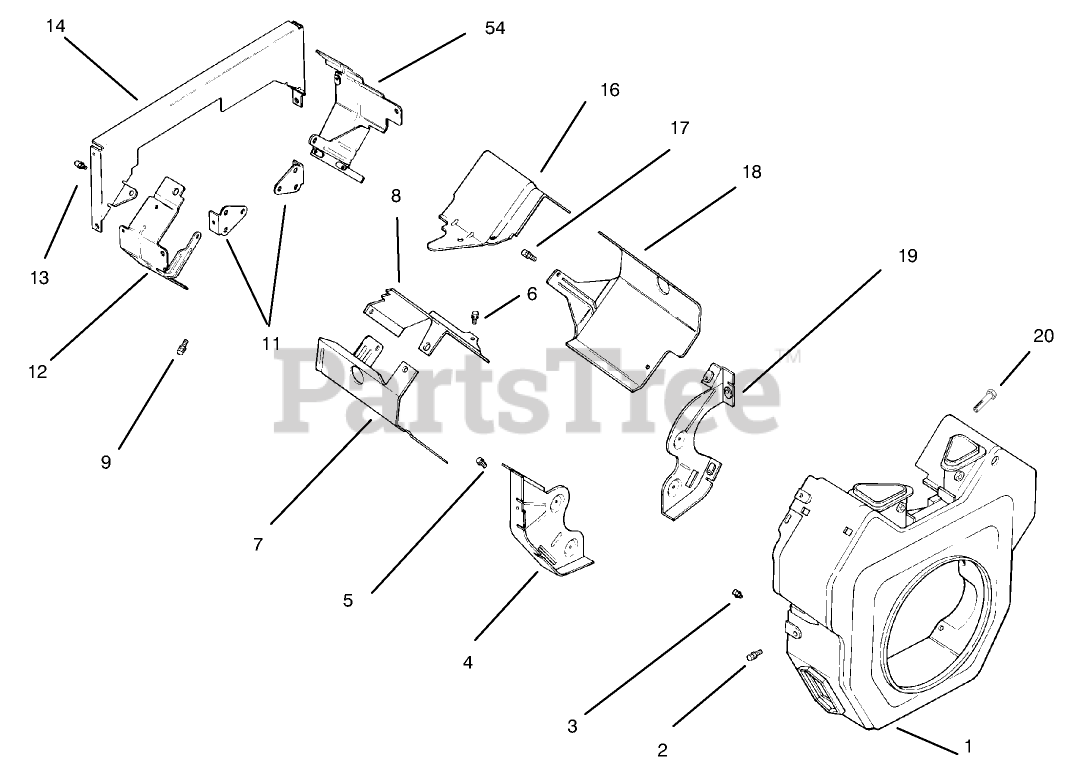

BAFFLES & SHROUD-KOHLER ENGINE MODEL CH20QS PS 64556 Parts Diagram

  • Title

1

2402721

Housing-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler SM-0545016

Screw
(Superseded to SM-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

3

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

4

2414602

Plate-Backing #2 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

6

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

7

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

8

Kohler 24 063 17

Baffle-Valley, #2 side
(Superseded to 24 063 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

9

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

10

2475514

Kit-"Q"Duct (Incl. Ref. # 11-15)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

2412604

Bracket-Support

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

2406312

Baffle,-Ducted Air #1 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler M-0639010

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

2414604

Plat-Ducted Air Backing

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

2406313

Baffle-Valley #2 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 24 063 24

Baffle-Valley, #1 Side
(Superseded to 24 063 24-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

17

Kohler SM-0545016

Screw
(Superseded to SM-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

18

2406308

Baffle, cylinder barrel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

19

2414608

Plate-Backing #1

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
