30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) AIR INTAKE/FILTRATION Parts Diagram

Groundsmaster Rear-Engine Riding Mower

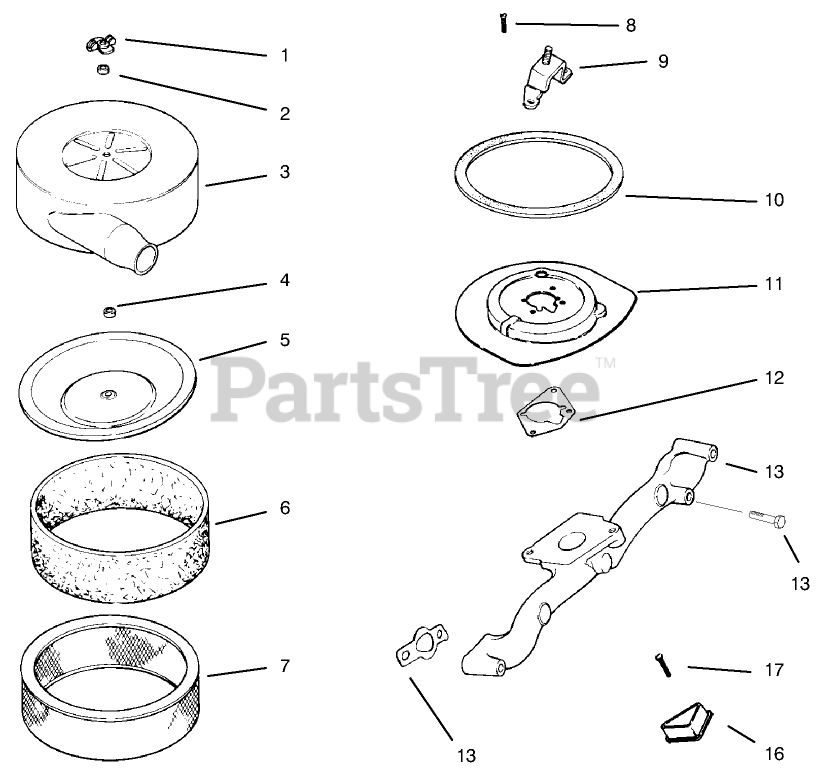

AIR INTAKE/FILTRATION Parts Diagram

  • Title

1

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

2

Kohler 230046

Seal
(Superseded to 230046-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

3

2409634

Cover-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 231032

Seal
(Superseded to 231032-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

Usually ships in 2-5 days

0

5

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

6

2408302

Bement-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

4708303

Bement-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

9

2412622

Bracket-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

2403207

Seal-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

2409405

Base-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 19

0

13

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

14

Kohler M-0639055

Screw
(Superseded to M-639055)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14

Manifold
(Superseded to 24 164 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

16

2409617

Plug

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

1508609

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411317

Decal-Maintenance

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411317

Decal-Maintenance

Note: Not illustrated

$

$

Not available
