30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 200000001 - 200999999) (2000) SEAT ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

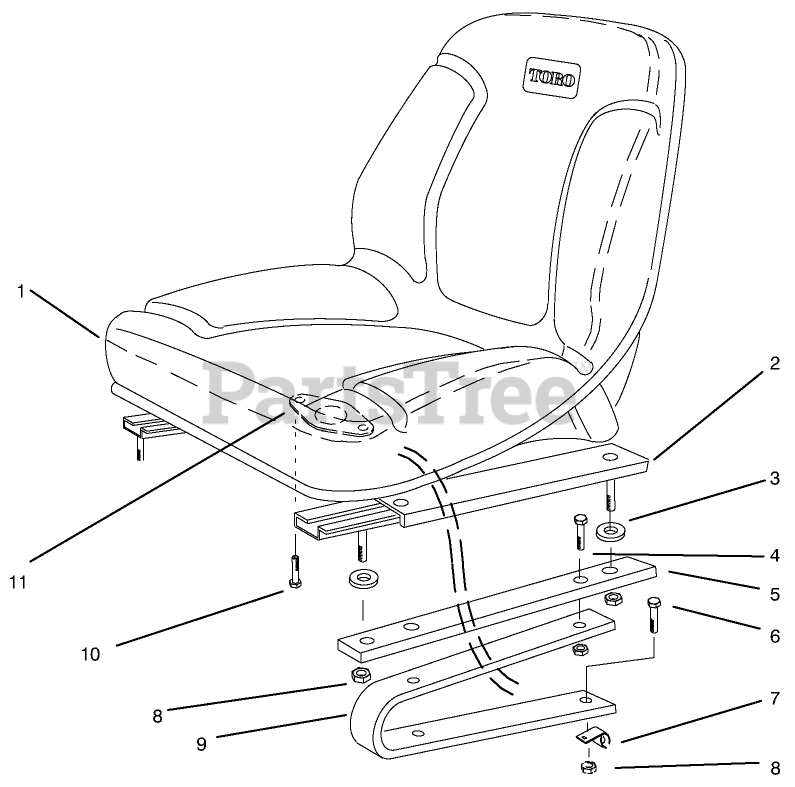

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6280

SEAT ASM
(Superseded to 104-4620)

$

$

Not available

2

Toro 51-0790

ADJUSTER-SEAT, LH

$137.99

$

Usually ships in 3-6 days

0

Toro 51-0780

SLIDER-SEAT

Note: Not illustrated

$123.99

$

Usually ships in 3-6 days

0

3

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 92-6284

Plate-Adapter, Seat
(Superseded to 92-6284-03)

$

$

Not available

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 114263

Seat Spring
(Superseded to 114263-03)

$195.99

$

In Stock, only 1 left!

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 92-6282

SWITCH-SEAT

$34.99

$

Usually ships in 3-6 days

0

Toro 92-6533

SEAT CUSHION KIT

Note: Not illustrated

$375.99

$

Usually ships in 3-6 days

0
