30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 200000001 - 200999999) (2000) FRAME AND JACKSHAFT ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

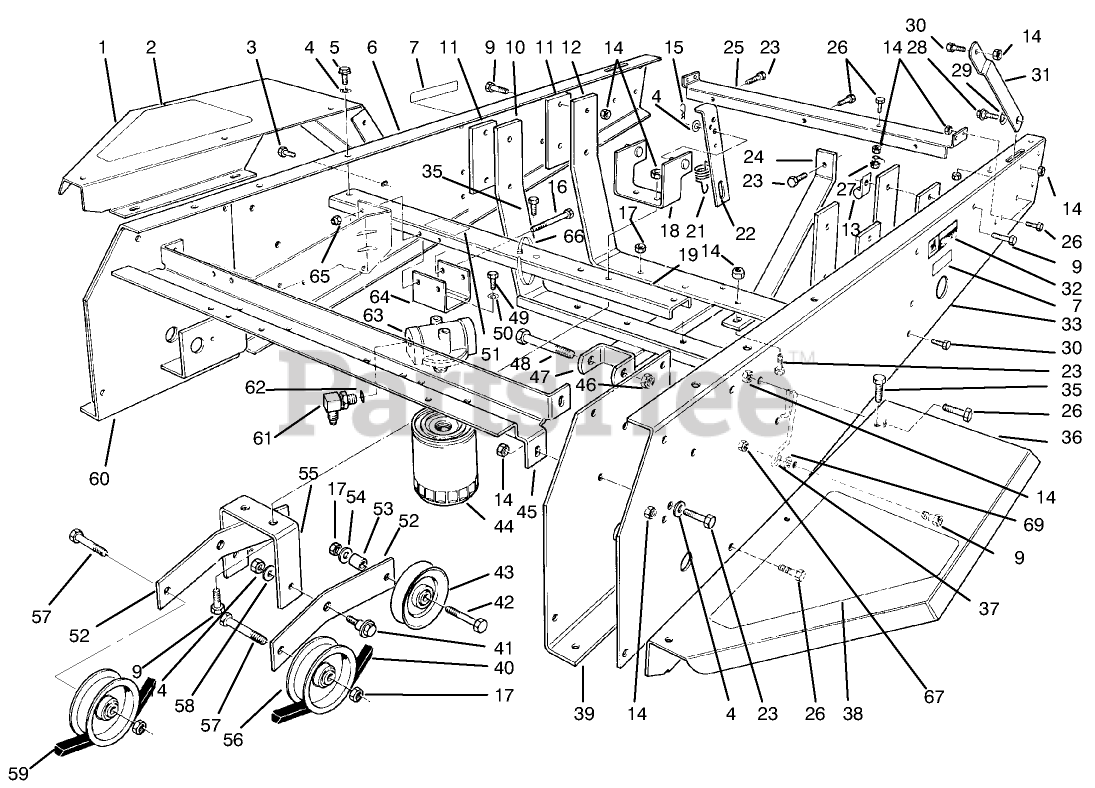

FRAME AND JACKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 54-1930

Fender R.H
(Superseded to 54-1930-01)

$

$

Not available

2

Toro 92-6292

RH FENDER PAD

$

$

Not available

3

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

6

Toro 54-1910

Channel-Side R.H.
(Superseded to 54-1910-01)

$

$

Not available

7

Toro 93-7272

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

9

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

10

Toro 92-6250

Mount-Engine
(Superseded to 92-6250-03)

$

$

Not available

11

Toro 54-1810

REAR ENG PLATE

$

$

Not available

12

Toro 92-6251

Mount-Engine
(Superseded to 911685)

$

$

Not available

13

Toro 2412-100

CLAMP

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

15

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

16

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

17

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

18

Toro 54-2070

Anchor-Spring
(Superseded to 54-2070-03)

$54.99

$

Usually ships in 3-6 days

0

19

Toro 54-2500

MIDDLE CHANNEL WA B

$

$

Not available

20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 54-1410

IDLER SPRING

$65.99

$

Usually ships in 3-6 days

0

22

Toro 54-1130

IDLER ANCHOR LINK

$

$

Not available

23

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Toro 92-6254

Bar-Tension
(Superseded to 92-6254-03)

$

$

Not available

25

Toro 54-1830

Support-Shield
(Superseded to 54-1830-03)

$

$

Not available

26

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

28

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

29

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

30

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

31

Toro 54-1870

Stop-Hood Lower
(Superseded to 54-1870-03)

$

$

Not available

32

Toro 93-8071

DECAL-SURFACE, HOT

$8.49

$

Usually ships in 3-6 days

0

33

Toro 54-1920

Channel-Side LH.
(Superseded to 54-1920-01)

$

$

Not available

35

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

36

Toro 54-1940

Fender L.H.
(Superseded to 54-1940-01)

$

$

Not available

37

Toro 55-4860

BELT GUIDE

$42.99

$

Usually ships in 3-6 days

0

38

Toro 92-6293

LH FENDER PAD

$

$

Not available

39

Toro 54-0460

Axle Stand-LH.
(Superseded to 54-0460-01)

$

$

Not available

40

Toro 54-1380

V-BELT, JACKSHAFT

$37.99

$

In Stock, only 1 left!

0

41

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

42

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Toro 62-4530

PULLEY

$39.99

$

In Stock, only 2 left!

0

44

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 2 left!

0

45

Toro 54-1010

Channel-Front
(Superseded to 54-1010-01)

$

$

Not available

46

Toro 3296-61

NUT-LOCK

$15.99

$

Usually ships in 3-6 days

0

47

Toro 92-6252

Mount-Cylinder
(Superseded to 92-6252-03)

$

$

Not available

48

Toro 327-24

SCREW-HH

$9.49

$

In Stock, only 3 left!

0

49

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

51

Toro 93-7823

DECAL-OIL

$23.99

$

Usually ships in 3-6 days

0

52

Toro 98-0795

IDLER LEVER

$29.99

$

Usually ships in 3-6 days

0

53

Toro 37-7250

SPACER-WEIGHT

$10.99

$

Usually ships in 3-6 days

0

54

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Toro 98-0792

IDLER MT BRKT

$

$

Not available

56

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 1 left!

0

57

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

58

Toro 23-1120

WASHER

$9.99

$

Usually ships in 3-6 days

0

59

Toro 54-1390

V-BELT, TRACTION

$33.99

$

In Stock, only 2 left!

0

60

Toro 54-0450

Axle Stand R.H.
(Superseded to 54-0450-01)

$

$

Not available

61

Toro 340-3

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

62

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

63

Toro 86-9080

HEAD-FILTER

$117.99

$

Usually ships in 3-6 days

0

64

Toro 54-1120

BRACKET - FILTER HEAD

$33.99

$

Usually ships in 3-6 days

0

65

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

66

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

67

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

69

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
