30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

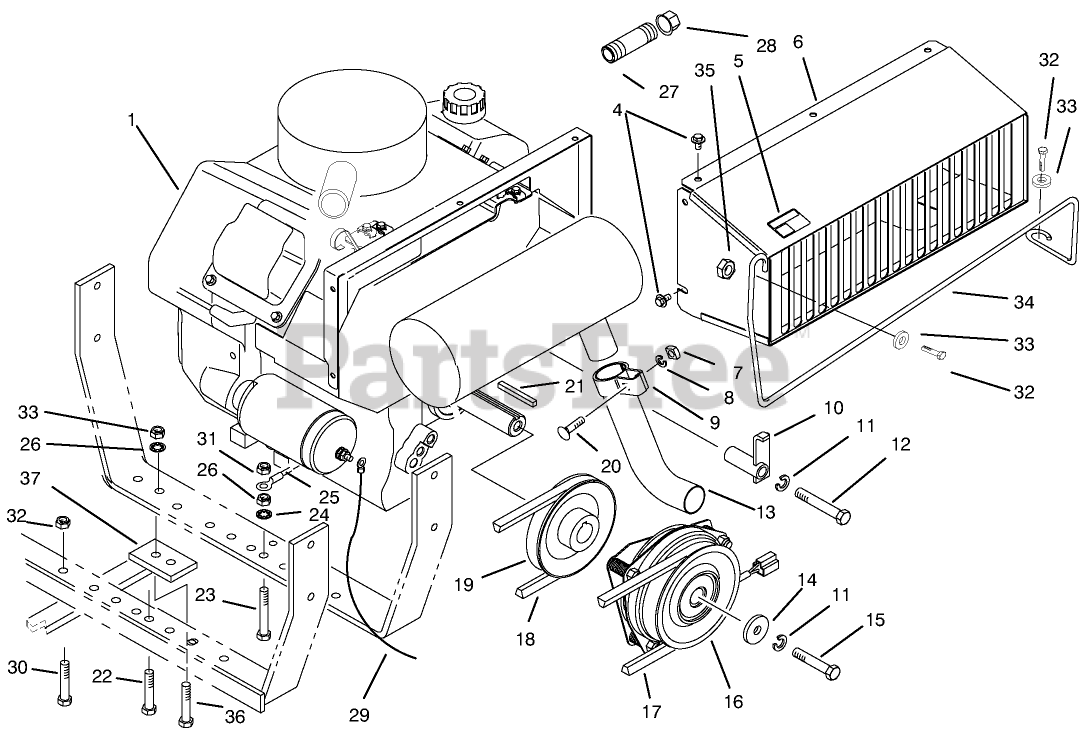

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Engine-Kohler 20 HP Model CH20QS PS 64556

$

$

Not available

4

Toro 48-7610

SCREW
(Superseded to 33113-012)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 93-8069

DECAL-SURFACE, HOT

$12.99

$

Usually ships in 3-6 days

0

6

Toro 92-6260

Duct-Engine
(Superseded to 92-6260-03)

$

$

Not available

7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 55-8660

Assembly-Clamp (Incl. Ref. #7, 8 & 20)

$

$

Not available

10

Toro 54-2160

Anchor Bracket
(Superseded to 54-2160-03)

$

$

Not available

11

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 54-2290

EXHAUST PIPE

$

$

Not available

14

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

15

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

16

Toro 54-0220

BRAKE CLUTCH ASM

$989.99

$

Usually ships in 3-6 days

0

17

Toro 54-1380

V-BELT, JACKSHAFT

$42.99

$

In Stock, only 1 left!

0

18

Toro 54-1390

V-BELT, TRACTION

$37.99

$

In Stock, only 2 left!

0

19

Toro 54-2330

ENGINE PULLEY

$151.99

$

Usually ships in 3-6 days

0

20

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

$

$

Not available

22

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

24

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

25

Toro 92-6287

WIRE ASM (NEGATIVE)

$

$

Not available

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

27

Toro 289-46

NIPPLE-PIPE

$

$

Not available

28

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

29

Toro 28-3894

POSITIVE WIRE ASM

$

$

Not available

30

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 93-9478

GUARD - MUFFLER

$

$

Not available

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Toro 98-8000

Guard-Tank

$

$

Not available
