30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) THROTTLE LINKAGE AND GOVERNOR CONTROLS Parts Diagram

Groundsmaster Rear-Engine Riding Mower

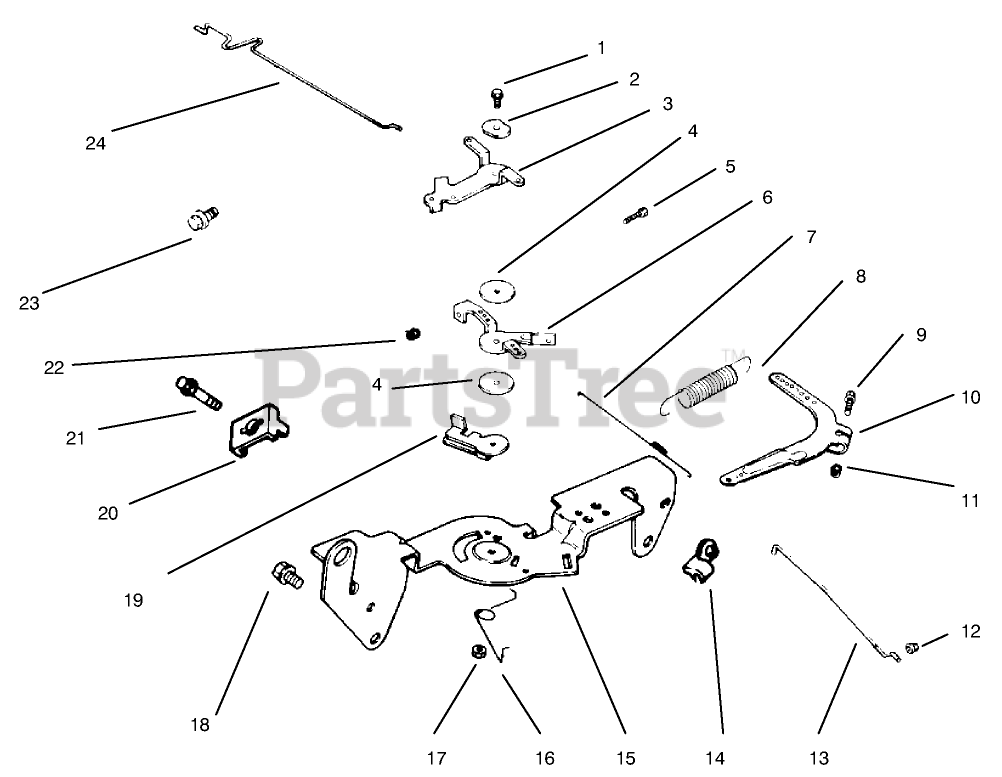

THROTTLE LINKAGE AND GOVERNOR CONTROLS Parts Diagram

  • Title
1

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

2

Kohler 41 468 03

Washer-Wave
(Superseded to 41 468 03-S)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 24 090 05

Lever-Choke
(Superseded to 24 090 05-S)

$5.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 01

Washer
(Superseded to 24 468 01-S)

$2.49

$

In Stock, only 2 left!

0

5

$

$

Currently unavailable

7

Kohler 24 089 01

Spring-Linkage
(Superseded to 24 089 01-S)

$6.49

$

In Stock, Qty 9

0

6

2409003

Lever-Throttle Control

$

$

Not available

8

2408918

Spring-Governor

$

$

Not available

9

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

10

2409014

Lever-Govenor

$

$

Not available

$

$

Not available

12

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 18

0

13

Kohler 24 079 01

Linkage-Throttle
(Superseded to 24 079 01-S)

$3.99

$

In Stock, Qty 7

0

14

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

$5.99

$

In Stock, only 2 left!

0

15

2412613

Bracket-Control

$

$

Not available

17

Kohler M-0547050

Nut
(Superseded to M-547050-S)

$2.49

$

In Stock, only 1 left!

0

16

2408903

Spring-Choke Return

$

$

Not available

18

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 13

0

19

Kohler 24 090 07

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

20

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

21

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

22

Kohler M-0446030

Nut
(Superseded to M-446030-S)

$2.49

$

In Stock, only 4 left!

0

23

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

24

Kohler 24 079 02

Linkage-Choke
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0
