30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) CYLINDER HEAD, VALVE & BREATHER Parts Diagram

Groundsmaster Rear-Engine Riding Mower

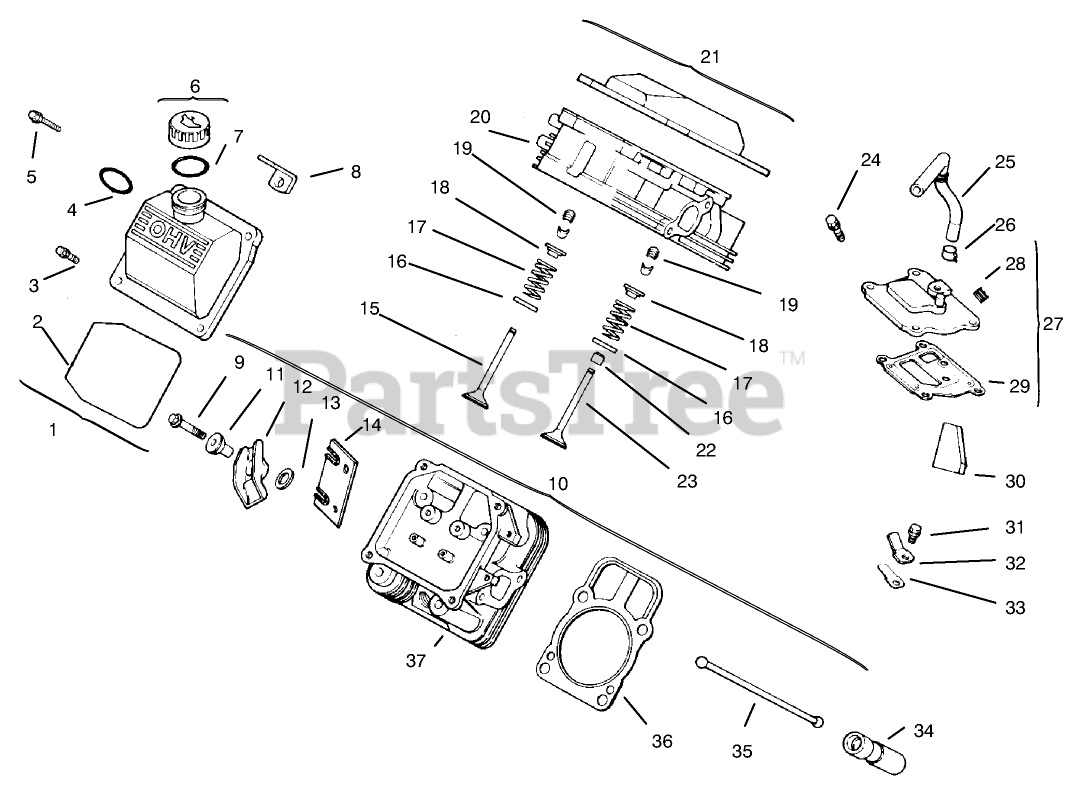

CYLINDER HEAD, VALVE & BREATHER Parts Diagram

  • Title

1

2475575

Kit-Valve Cover (Incl. Ref. #2-4)

$

$

Not available

2

2415312

O Ring

$

$

Not available

3

2408632

Screw

$

$

Not available

4

Kohler 24 153 09

O-Ring
(Superseded to 24 153 32-S)

$2.49

$

In Stock, only 4 left!

0

5

1208616

Screw

$

$

Not available

6

2575513

Kit-Oil Fill Cap (Incl. Ref. #7)

$

$

Not available

7

1215303

"O"Ring

$

$

Not available

8

2444501

Strap-Lifting

$

$

Not available

9

Kohler M-0640034

Screw

$

$

Not available

10

2475561

Kit-Valve Train (Incl. Ref. #11-14 & 35)

$

$

Not available

11

2419402

Pivot-Rocker Arm

$

$

Not available

12

2418603

Arm-Rocker

$

$

Not available

13

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

In Stock, only 1 left!

0

14

2414609

Plate-Guide

$

$

Not available

15

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

$15.99

$

In Stock, only 4 left!

0

Kohler 24 016 02

Valve-Exhaust (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

16

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

17

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

$7.99

$

In Stock, only 2 left!

0

18

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

19

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, only 2 left!

0

20

2431809

Head Asm-#1 Cylinder

$

$

Not available

21

Kohler 24 755 74

Kit-Valve Cover (Incl. Ref. #2 & 3)
(Superseded to 24 755 74-S)

$35.99

$

In Stock, only 2 left!

0

22

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

$11.99

$

In Stock, Qty 8

0

23

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

$

$

Not available

24

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

25

2432606

Hose-Breather

$

$

Not available

26

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

27

Kohler 24 033 01

Kit-Breather w/Plug (Incl. Ref. #28 & 29)
(Superseded to 24 033 01-S)

$31.99

$

In Stock, only 2 left!

0

28

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

29

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

$13.99

$

In Stock, Qty 9

0

30

Kohler 24 050 01

Filter-Breather
(Superseded to 24 050 01-S)

$2.49

$

Usually ships in 2-5 days

0

31

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

32

Kohler 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 6

0

33

Kohler 24 402 03

Reed
(Superseded to 24 402 03-S)

$3.49

$

In Stock, Qty 7

0

34

1235101

Lifter-Valve

$

$

Not available

35

2441104

Rod-Push

$

$

Not available

36

2404108

Gasket-Cylinder Head

$

$

Not available

37

2431810

Head Asm-#2 cylinder

$

$

Not available
