30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) BAFFLES & SHROUD Parts Diagram

Groundsmaster Rear-Engine Riding Mower

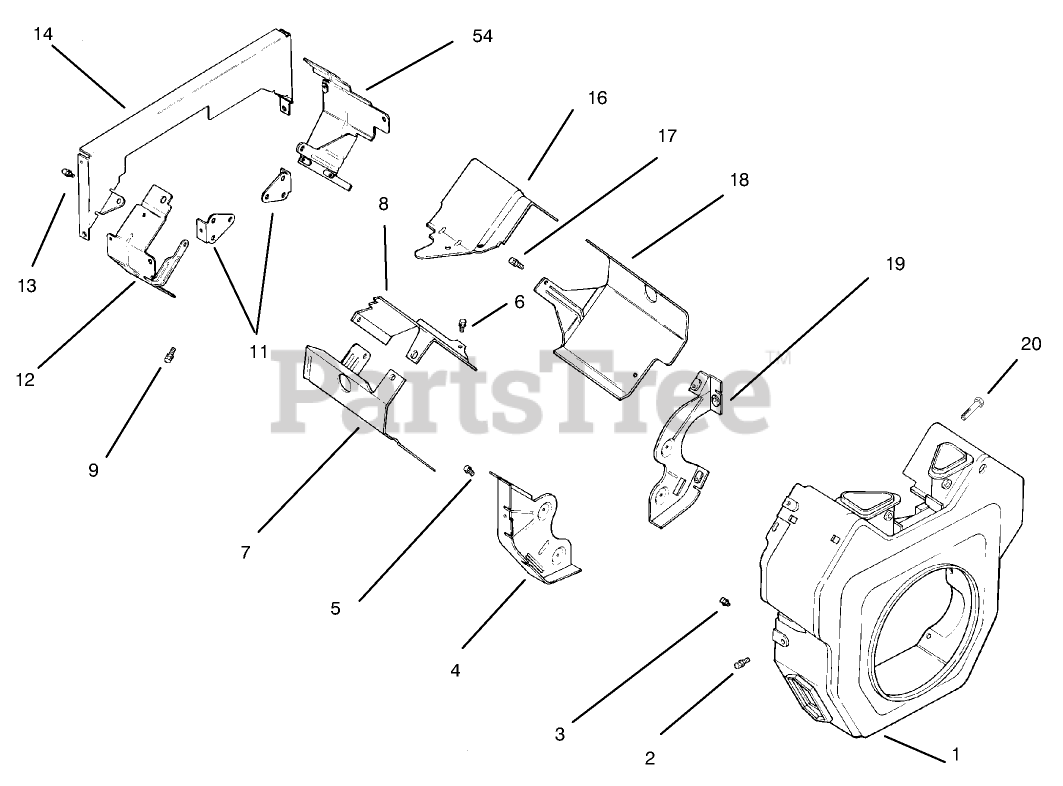

BAFFLES & SHROUD Parts Diagram

  • Title
1

2402721

Housing-Blower

$

$

Not available

2

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

3

Kohler M-0551016

Screw
(Superseded to M-551016-S)

$2.49

$

In Stock, only 2 left!

0

4

2414602

Plate-Backing #2 Side

$

$

Not available

5

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

6

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

7

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

8

Kohler 24 063 17

Baffle-Valley, #2 side
(Superseded to 24 063 17-S)

$9.49

$

Usually ships in 2-5 days

0

9

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

10

2475514

Kit-"Q" Duct (Incl. Ref. #11-15)

$

$

Not available

11

2412604

Bracket-Support

$

$

Not available

12

2406312

Baffle,-Ducted Air #1 side

$

$

Not available

13

$

$

Not available

14

2414604

Plat-Ducted Air Backing

$

$

Not available

15

2406313

Baffle-Valley #2 Side

$

$

Not available

16

Kohler 24 063 24

Baffle-Valley, #1 Side
(Superseded to 24 063 24-S)

$6.49

$

In Stock, only 1 left!

0

17

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

18

2406308

Baffle, cylinder barrel

$

$

Not available

19

2414608

Plate-Backing #1

$

$

Not available

20

$

$

Not available
