30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 069000001 - 069999999) (1996) REAR AXLE ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

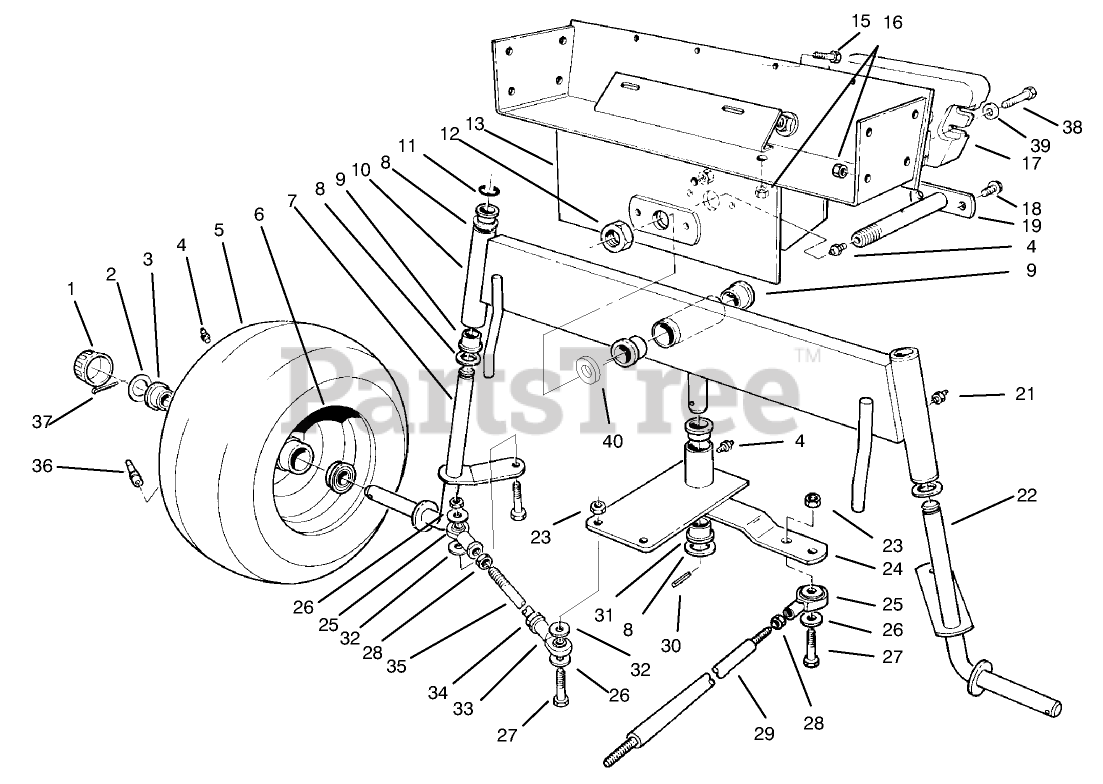

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-9780

CAP-HUB

$7.49

$

In Stock, Qty 8

0

2

Toro 28-2480

WASHER-PLAIN

$4.49

$

In Stock, Qty 6

0

3

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 4 left!

0

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 231-126

TIRE

$87.99

$

Usually ships in 3-6 days

0

6

Toro 242-60

FRONT WHEEL
(Superseded to 115-4215)

$

$

Not available

7

Toro 54-0570

Spindle R.H.
(Superseded to 54-0570-01)

$

$

Not available

8

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

9

Toro 46-6680

BUSHING PM

$24.99

$

In Stock, only 1 left!

0

10

Toro 92-6255

Axle-Rear (Incl. Ref. #9 & 20)

$

$

Not available

11

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

12

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

13

Toro 54-0330

Frame-Rear
(Superseded to 54-0330-01)

$

$

Not available

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

17

Toro 24-5790

WEIGHT-REAR
(Superseded to 24-5790-01)

$488.99

$

Usually ships in 3-6 days

0

18

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

19

Toro 59-1500

Axle-Pivot
(Superseded to 59-1500-01)

$

$

Not available

21

Toro 302-49

GREASE FITTING

$3.49

$

Usually ships in 3-6 days

0

22

Toro 54-0560

Spindle LH.
(Superseded to 54-0560-01)

$116.99

$

Usually ships in 3-6 days

0

23

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 92-6257

Plate- Pivot (Incl. Ref. #4 & 30)

$

$

Not available

25

Toro 251-305

BALL JOINT RH

$87.99

$

In Stock, only 2 left!

0

26

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

28

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

29

Toro 54-1491

Rod-Steering
(Superseded to 54-1491-03)

$159.99

$

Usually ships in 3-6 days

0

30

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

31

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

32

Toro 62-4420

WASHER

$8.49

$

Usually ships in 3-6 days

0

33

Toro 251-304

BALL JOINT LH

$87.99

$

Usually ships in 3-6 days

0

34

Toro 3220-19

NUT

$7.99

$

Usually ships in 3-6 days

0

35

Toro 57-3100

TIE ROD - STEERING

$31.99

$

Usually ships in 3-6 days

0

36

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

37

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

38

Toro 325-6

SCREW-HH

$3.49

$

In Stock, Qty 5

0

39

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

40

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0
