30611 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 069000001 - 069999999) (1996) CARBURETOR AND FUEL PUMP Parts Diagram

Groundsmaster Rear-Engine Riding Mower

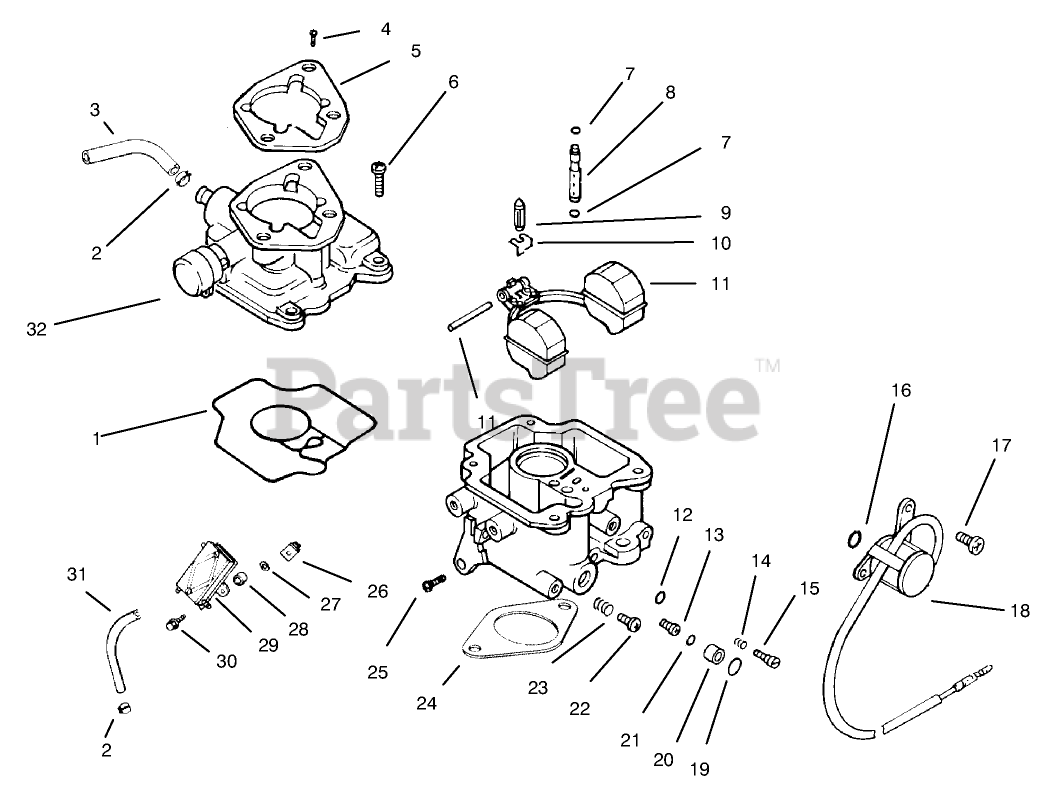

CARBURETOR AND FUEL PUMP Parts Diagram

  • Title

1

Kohler 24 041 09

Gasket-Body,Carburetor
(Superseded to 24 041 09-S)

$31.99

$

In Stock, only 1 left!

0

2485302

Kit-Carburetor w/Gasket (Incl. Ref. #1-15, 19-23 & 29)

Note: Not illustrated

$

$

Not available

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

3

2535310

Line fuel

$

$

Not available

4

Kohler M-0651030

Screw
(Superseded to M-651030-S)

$

$

Not available

5

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

$2.99

$

In Stock, Qty 20+

0

6

2408609

Screw

$

$

Not available

7

2415302

"O"Ring

$

$

Not available

8

2433701

Jet-Slow

$

$

Not available

9

2446201

Valve-Inlet Needle

$

$

Not available

10

2415401

Clip, cable

$

$

Not available

11

Kohler 24 757 02

Roat Repair Kit
(Superseded to 24 757 02-S)

$133.99

$

Usually ships in 2-5 days

0

12

2415303

"O"Ring

$

$

Not available

13

2433702

Jet-Main

$

$

Not available

14

2408911

Spring-Idle Adj.

$

$

Not available

15

2436801

Needle, idle

$

$

Not available

16

Kohler 24 153 04

O-Ring
(Superseded to 24 153 04-S)

$4.49

$

In Stock, only 1 left!

0

17

2408607

Screw

$

$

Not available

18

2443501

Solenoid

$

$

Not available

19

Kohler 24 153 05

O-Ring
(Superseded to 24 153 05-S)

$4.49

$

In Stock, only 4 left!

0

20

2452101

Seat-Solenoid

$

$

Not available

21

Kohler 24 153 06

O-Ring
(Superseded to 24 153 06-S)

$4.49

$

In Stock, Qty 7

0

22

2408610

Screw, idle adjusting

$

$

Not available

23

2408910

Spring-Idle Speed Adj.

$

$

Not available

24

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

$9.49

$

In Stock, Qty 12

0

25

2408605

Screw-Throttle Stop

$

$

Not available

26

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

27

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

$3.99

$

In Stock, only 1 left!

0

28

5211213

Spacer

$

$

Not available

29

2439304

Pump-Fuel

$

$

Not available

30

2408631

Screw

$

$

Not available

31

2435302

Line, fuel

$

$

Not available

32

Kohler 24 757 07

Kit-Choke Repair (Incl. Ref. # 33
(Superseded to 24 757 07-S)

$95.99

$

In Stock, only 1 left!

0

Carburetor Assembly (Incl. Ref. # 1-25 & 32)

Note: Not illustrated

$

$

Not available

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

Note: Not illustrated

$9.49

$

In Stock, Qty 12

0

Kohler 24 757 03

Carburetor Repair Kit
(Superseded to 24 757 03-S)

Note: Not illustrated

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 01

Solenoid Kit
(Superseded to 24 757 01-S)

Note: Not illustrated

$227.99

$

In Stock, only 1 left!

0

2475501

Kit, high altitude (1500 m)

Note: Not illustrated

$

$

Not available

2475502

Kit, high altitude (3000 m)

Note: Not illustrated

$

$

Not available

33

2417302

Cap-Choke Lever

Note: Not illustrated

$

$

Not available
