30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059001300 - 059999999) (1995) THROTTLE LINKAGE AND GOVERNOR CONTROLS Parts Diagram

ProLine Rear-Engine Riding Mower

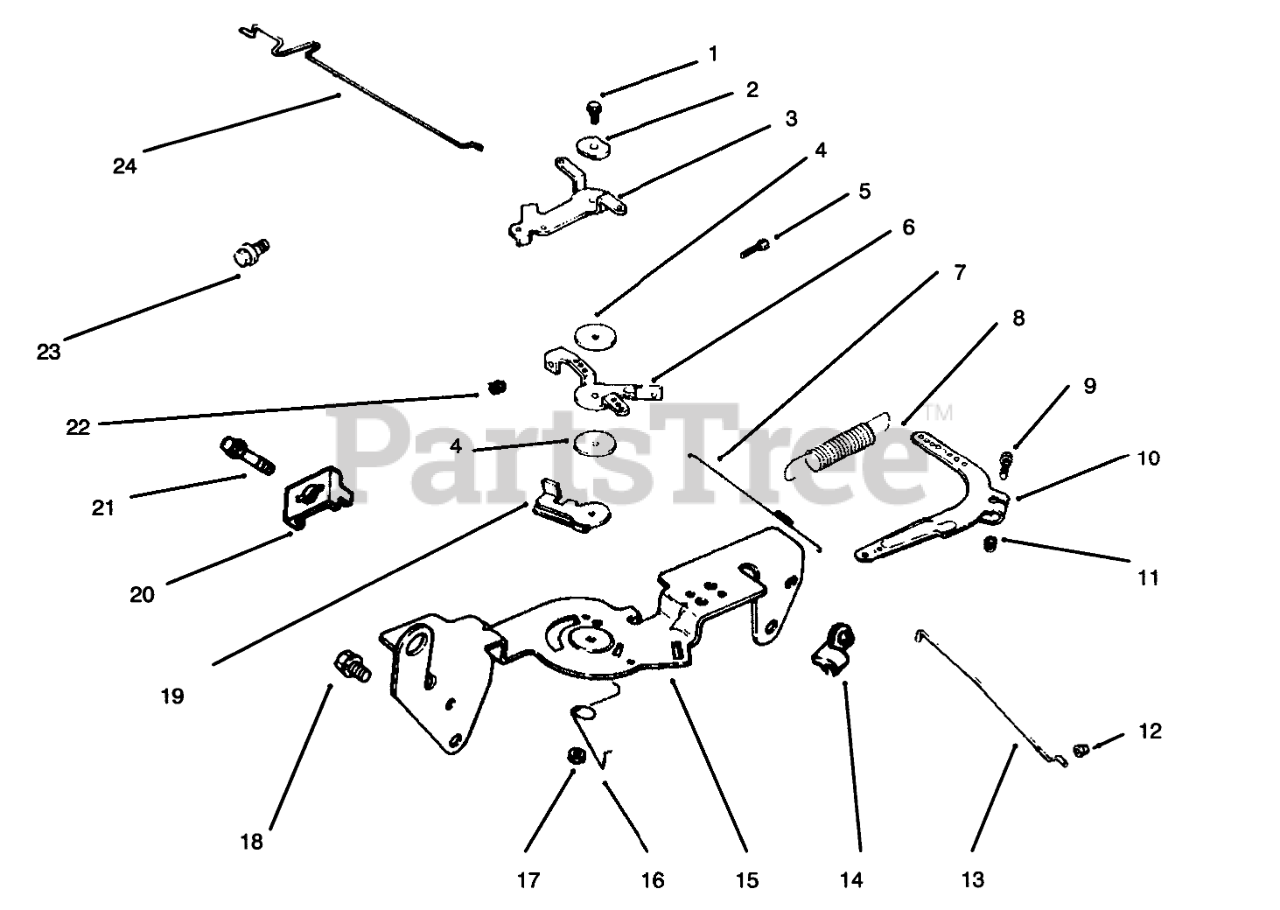

THROTTLE LINKAGE AND GOVERNOR CONTROLS Parts Diagram

  • Title

1

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

2

Toro 41_468_03

Washer-Wave

$

$

Currently unavailable

3

Toro 24_090_05

Lever-Choke

$

$

Currently unavailable

4

Toro 24_468_01

Washer

$

$

Currently unavailable

5

Toro M-0401025

Screw

$

$

Currently unavailable

7

Toro 24_089_01

Spring-Linkage

$

$

Currently unavailable

6

2409003

Lever-Throttle Control

$

$

Not available

8

Toro 24_089_18

Spring-Governor

$

$

Currently unavailable

9

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

10

Toro 24_090_14

Lever-Governor

$

$

Currently unavailable

11

Kohler SM-0641060

Nut

$

$

Not available

12

Toro 25_158_08

Bushing

$

$

Currently unavailable

13

Toro 24_079_01

Linkage-Throttle

$

$

Currently unavailable

14

Toro 25_158_11

Bushing-Linkage

$

$

Currently unavailable

15

Toro 24_126_13

Bracket-Control

$

$

Currently unavailable

17

Kohler M-0547050

Nut
(Superseded to M-547050-S)

$2.49

$

In Stock, only 2 left!

0

16

Toro 24_089_03

Spring-Choke Return

$

$

Currently unavailable

18

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 15

0

19

Toro 24_090_07

Lever-Throttle Actuator

$

$

Currently unavailable

20

Toro 12_237_01

Clamp

$

$

Currently unavailable

21

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

22

Kohler M-0446030

Nut
(Superseded to M-446030-S)

$2.49

$

In Stock, only 4 left!

0

23

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

24

Toro 24_079_02

Linkage-Choke

$

$

Currently unavailable
