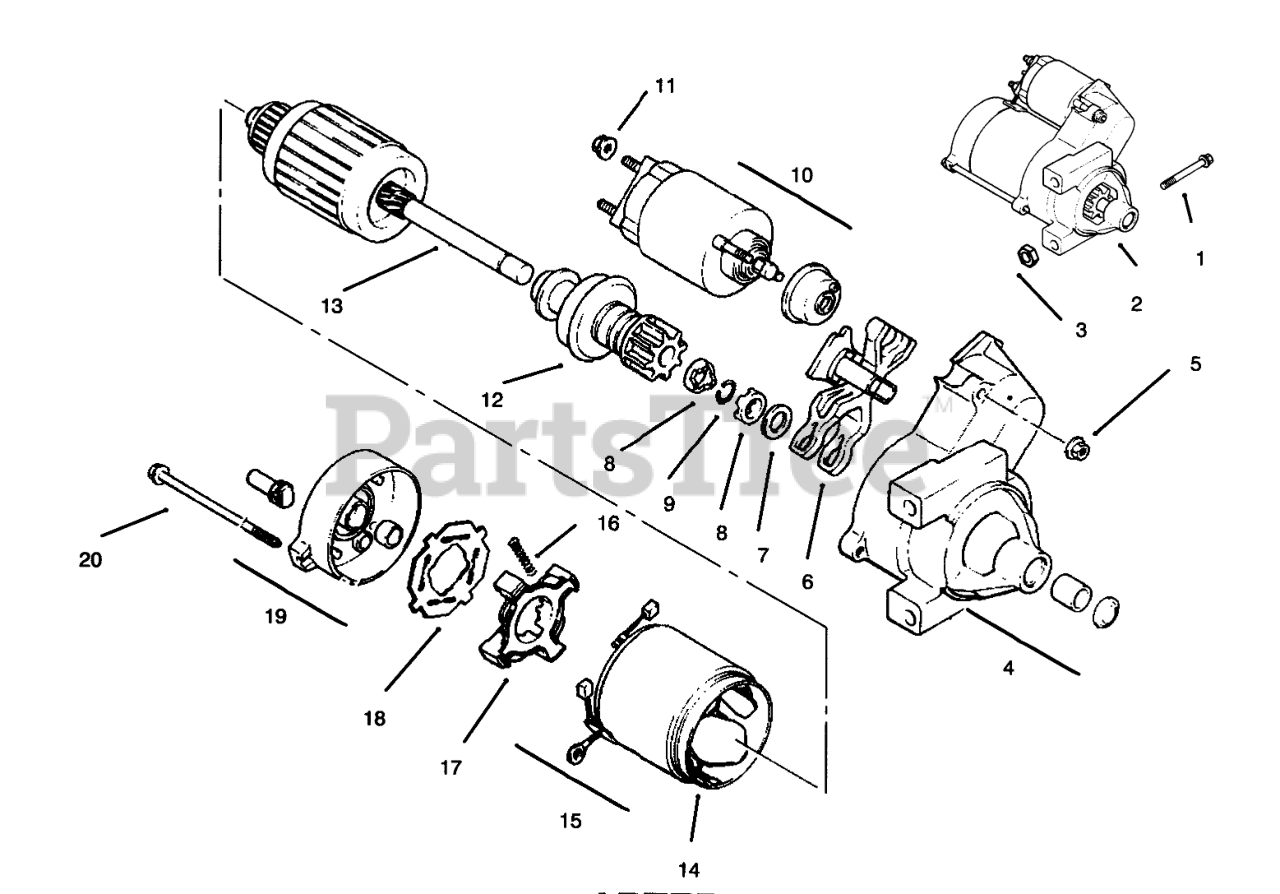

30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059001300 - 059999999) (1995) STARTER Parts Diagram

ProLine Rear-Engine Riding Mower

STARTER Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 24_098_01

Starter-Solenoid Shift (Incl. Ref. #4-20)

$

$

Currently unavailable

$

$

Currently unavailable

4

Toro 24_081_04

Cap-Drive End

$

$

Currently unavailable

5

Toro 52_100_10

Nut Starter

$

$

Currently unavailable

6

12_090_10

Lever Starter Drive

$

$

Not available

7

Toro 52_468_14

Washer-Thrust

$

$

Currently unavailable

8

Toro 52_100_08

Nut-Stop Collar

$

$

Currently unavailable

9

Toro 52_141_03

Ring-Retainer

$

$

Currently unavailable

10

Toro 52_435_02

Solenoid

$

$

Currently unavailable

$

$

Currently unavailable

12

Toro 12_239_01

Drive-Pinion

$

$

Currently unavailable

13

12_170_03

Armature-Starter

$

$

Not available

14

$

$

Currently unavailable

15

Toro 52_221_01

Kit-Brush (Incl. Ref. #16)

$

$

Currently unavailable

16

Toro 52_089_09

Spring-Brush

$

$

Currently unavailable

17

Toro 52_323_03

Holder-Brush

$

$

Currently unavailable

18

Toro 52_168_01

Insulator

$

$

Currently unavailable

19

Toro 12_301_01

Cap-Commutator End

$

$

Currently unavailable

20

$

$

Currently unavailable
