30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059001300 - 059999999) (1995) OIL PAN/LUBRICATION Parts Diagram

ProLine Rear-Engine Riding Mower

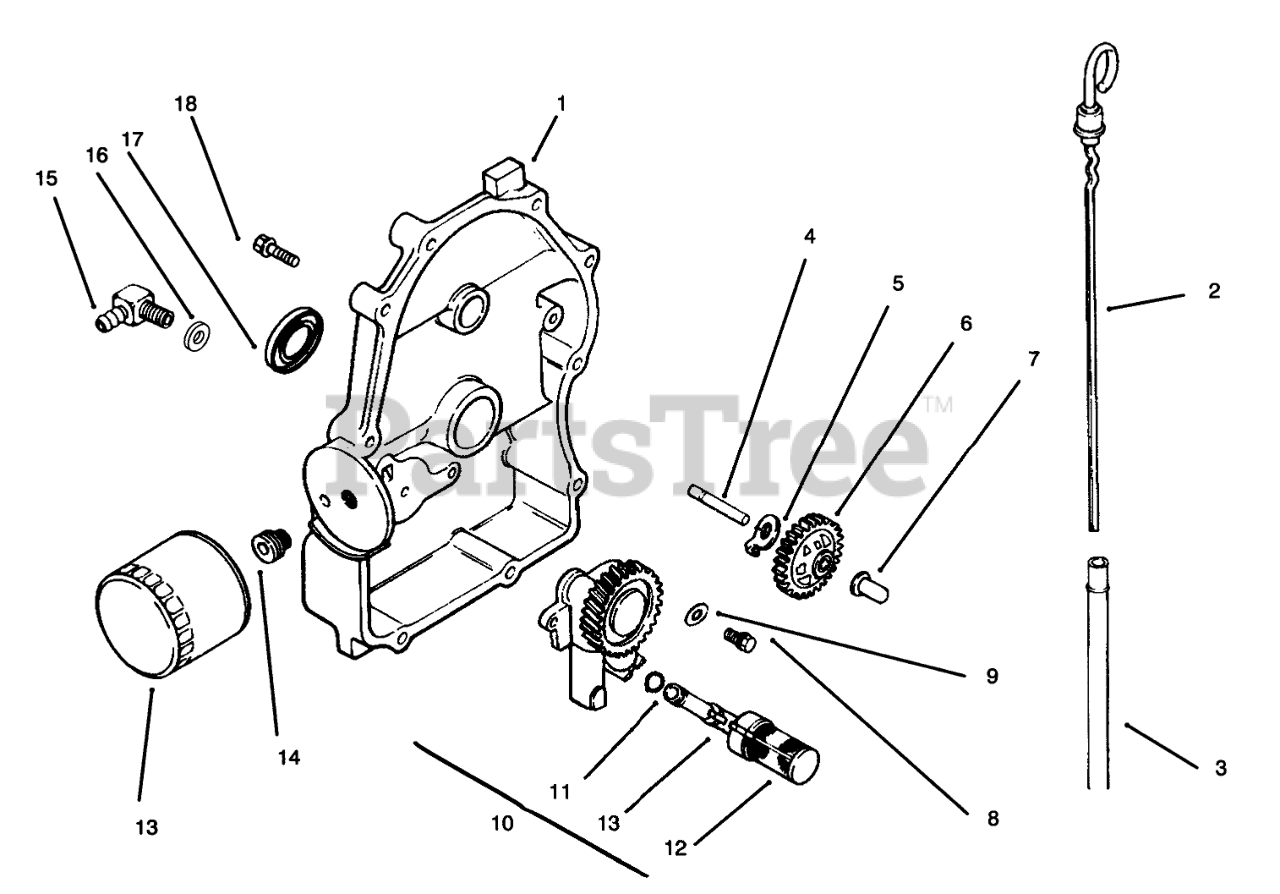

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

Toro 24_009_83

Plate-Closure (Incl. Ref.# 2-7, 10-12, 16 & 17)

$

$

Currently unavailable

2

Toro 24_038_01

Dipstick

$

$

Currently unavailable

3

Toro 24_123_04

Tube-Dipstick

$

$

Currently unavailable

4

12_144_02

Shaft-Govenor Gear

$

$

Not available

5

Toro 52_448_02

Tab-Locking

$

$

Currently unavailable

6

Toro 24_043_12

Kit-Governor Gear Assembly (Incl. Ref. #7)

$

$

Currently unavailable

7

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

8

Kohler M-0645025

Screw
(Superseded to M-645025)

$2.49

$

In Stock, only 2 left!

0

9

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

In Stock, only 1 left!

0

10

Toro 24_393_03

Oil Pump Assembly (Incl. Ref. #11-12)

$

$

Currently unavailable

11

Toro 24_153_01

"O"Ring

$

$

Currently unavailable

12

Toro 24_381_01

Pick-up, Oil

$

$

Currently unavailable

13

12_050_01

Filter-Oil

$

$

Not available

14

Toro 24_136_01

Nipple-Oil Filter

$

$

Currently unavailable

15

25_155_02

Connector-90deg.

$

$

Not available

16

Toro 24_153_08

O Ring

$

$

Currently unavailable

17

Toro 52_032_08

Seal-Oil

$

$

Currently unavailable

18

Toro 24_086_16

Screw

$

$

Currently unavailable
