30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059001300 - 059999999) (1995) CYLINDER HEAD, VALVE & BREATHER Parts Diagram

ProLine Rear-Engine Riding Mower

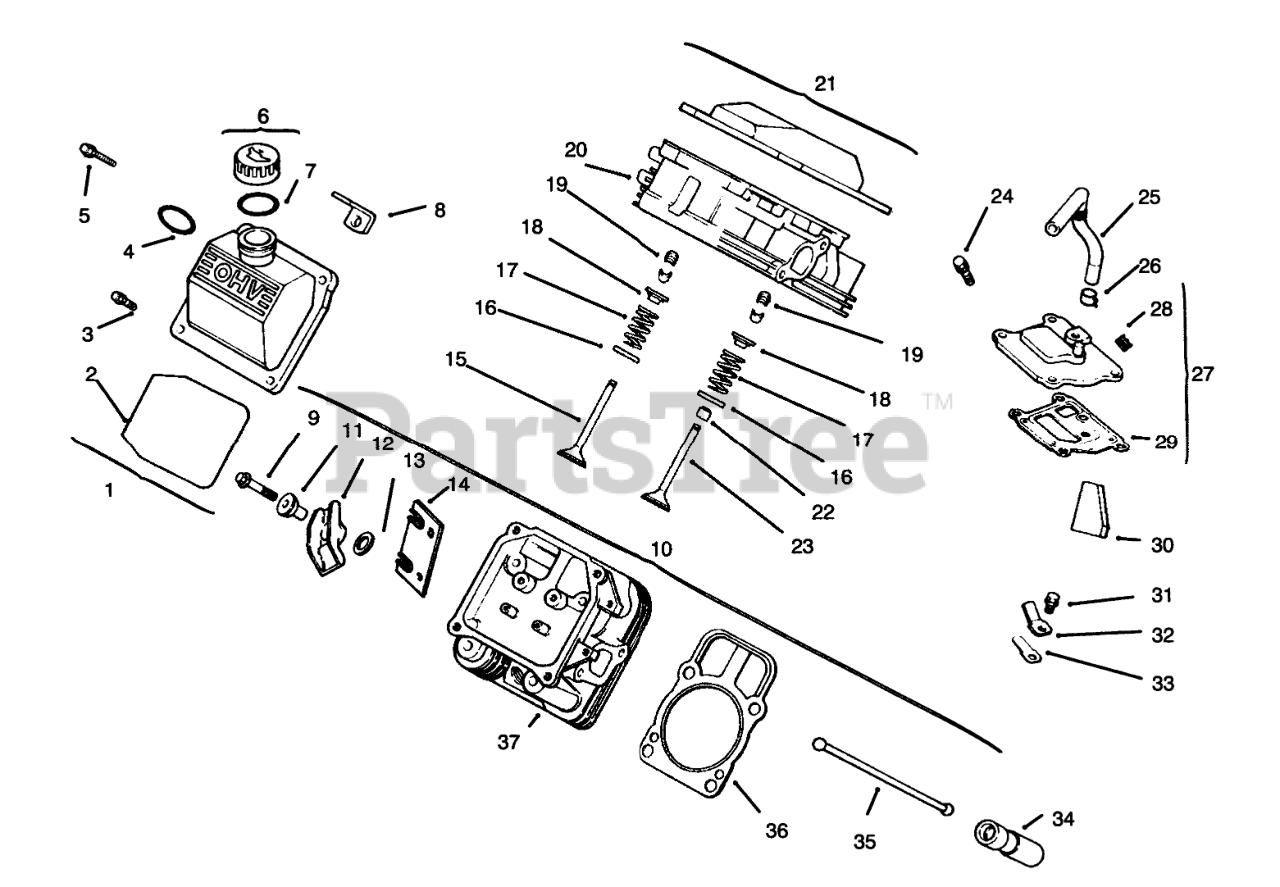

CYLINDER HEAD, VALVE & BREATHER Parts Diagram

  • Title

1

Toro 24_755_75

Kit-Valve Cover (Incl. Ref. #2-4)

$

$

Currently unavailable

2

Toro 24_153_12

O-Ring

$

$

Currently unavailable

3

Toro 24_086_32

Screw-Shoulder

$

$

Currently unavailable

4

Toro 24_153_09

"O"Ring

$

$

Currently unavailable

5

12_086_16

Screw

$

$

Not available

6

Toro 25_755_13

Kit-Oil Fill Cap (Incl. Ref. #7)

$

$

Currently unavailable

7

12_153_03

"O"Ring

$

$

Not available

8

Toro 24_445_01

Strap-Lifting

$

$

Currently unavailable

9

Kohler M-0640034

Screw

$

$

Not available

10

Toro 24_755_61

Kit-Valve Train (Incl. Ref. #11-14 & 35)

$

$

Currently unavailable

11

Toro 24_194_02

Pivot-Rocker Arm

$

$

Currently unavailable

12

Toro 24_186_03

Arm-Rocker

$

$

Currently unavailable

13

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

In Stock, only 1 left!

0

14

Toro 24_146_09

Plate-Guide

$

$

Currently unavailable

15

Toro 24_016_01

Valve-Exhaust

$

$

Currently unavailable

Toro 24_016_02

Valve-Exhaust (.25)

Note: Not illustrated

$

$

Currently unavailable

16

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

17

Toro 24_089_02

Spring-Valve

$

$

Currently unavailable

18

Toro 12_173_01

Cap-Valve Spring

$

$

Currently unavailable

19

Toro 12_755_03

Kit-Retainer

$

$

Currently unavailable

20

Toro 24_318_09

Head Assembly (#1 Cylinder)

$

$

Currently unavailable

21

Toro 24_755_74

Kit-Valve Cover (Incl. Ref. #2 & 3)

$

$

Currently unavailable

22

Toro 24_032_05

Seal-Valve Stem

$

$

Currently unavailable

23

Toro 24_017_01

Valve-Intake

$

$

Currently unavailable

Toro 24_017_02

Valve-Intake (.25)

Note: Not illustrated

$

$

Currently unavailable

24

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

25

Toro 24_326_06

Hose-Breather

$

$

Currently unavailable

26

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

27

Toro 24_033_01

Kit-Breather w/Plug (Incl. Ref. #28 & 29)

$

$

Currently unavailable

28

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

29

Toro 24_041_23

Gasket-Breather

$

$

Currently unavailable

30

Toro 24_050_01

Filter-Breather

$

$

Currently unavailable

31

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

32

12_018_01

Retainer-Reed

$

$

Not available

33

Toro 24_402_03

Reed

$

$

Currently unavailable

34

Toro 12_351_01

Lifter-Valve

$

$

Currently unavailable

35

Toro 24_411_04

Rod-Push

$

$

Currently unavailable

36

Toro 24_041_08

Gasket-Cylinder Head

$

$

Currently unavailable

37

Toro 24_318_10

Head-Assembly (#2 Cylinder)

$

$

Currently unavailable
