30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059001299) (1995) IGNITION AND CHARGING SYSTEM Parts Diagram

ProLine Rear-Engine Riding Mower

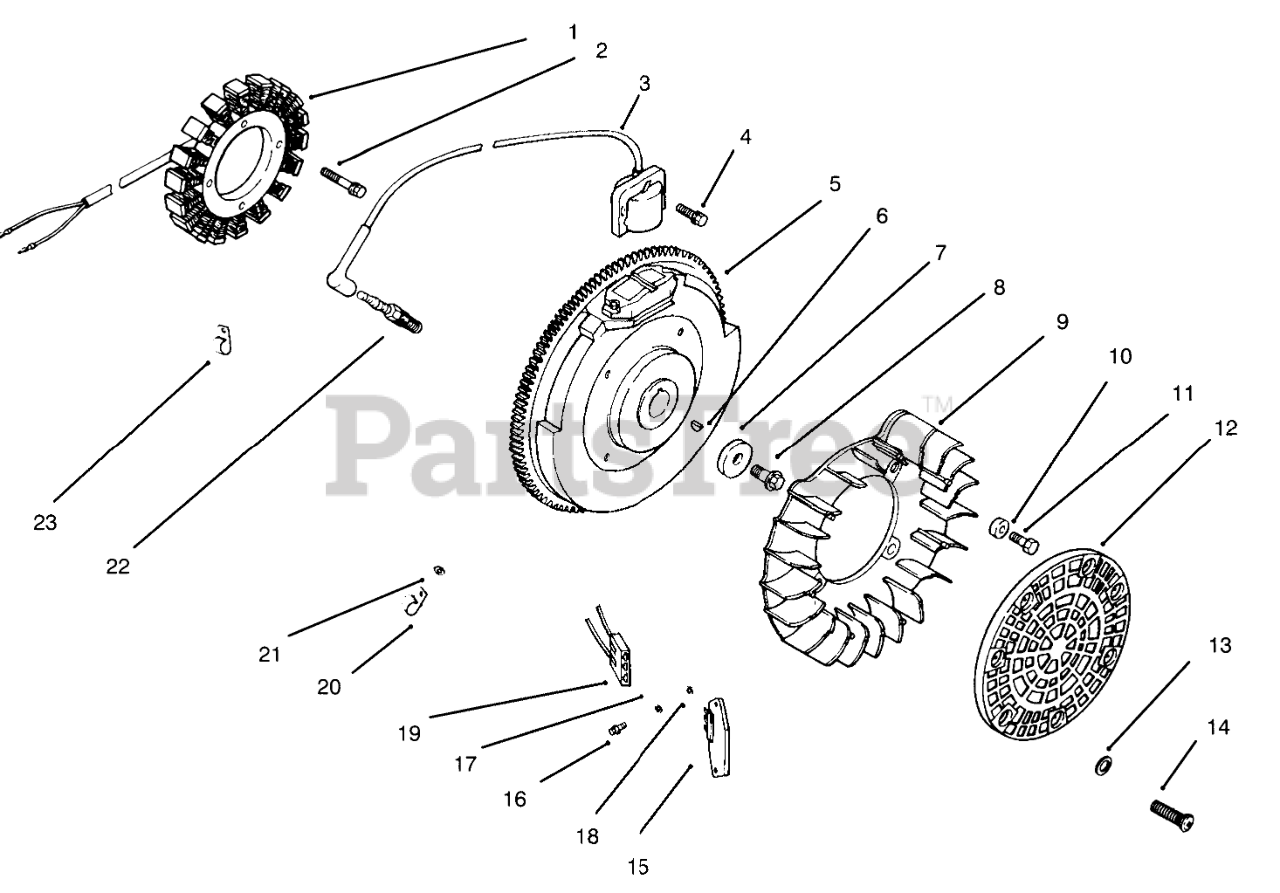

IGNITION AND CHARGING SYSTEM Parts Diagram

  • Title

1

Toro 24_085_01

Stator-15 amp

$

$

Currently unavailable

2

Kohler M-0548025

Screw
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

3

Toro 24_584_01

Module-Ignition

$

$

Currently unavailable

4

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Toro 24_025_01

Flywheel Assembly

$

$

Currently unavailable

6

Kohler X-42-15

Key
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 6

0

7

Toro 12_468_03

Washer

$

$

Currently unavailable

8

12_086_14

Screw

$

$

Not available

9

Toro 24_157_01

Fan

$

$

Currently unavailable

10

12_112_01

Spacer-Fan

$

$

Not available

11

Kohler M-0657010

Screw
(Superseded to M-657010)

$130.99

$

Usually ships in 2-5 days

0

12

Toro 24_162_13

Screen-Grass

$

$

Currently unavailable

13

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

$3.49

$

Usually ships in 2-5 days

0

14

Toro 25_086_43

Screw

$

$

Currently unavailable

15

Toro 25_403_03

Rectifier-Regulator

$

$

Currently unavailable

16

Toro 24_086_06

Screw

$

$

Currently unavailable

17

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

18

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

$2.49

$

In Stock, only 2 left!

0

19

Kohler 236602

Connector
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

20

Kohler 235173

Clip
(Superseded to 235173-S)

$11.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

22

12_132_02

Spark Plug

$

$

Not available

23

Toro 48_154_02

Clip

$

$

Currently unavailable

Toro 24_176_06

Harness-Wiring

Note: Not illustrated

$

$

Currently unavailable

Toro 24_518_04

Lead-Green,18 Gauge

Note: Not illustrated

$

$

Currently unavailable
