30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059001299) (1995) CLUTCH ASSEMBLY NO. 54-0220 Parts Diagram

ProLine Rear-Engine Riding Mower

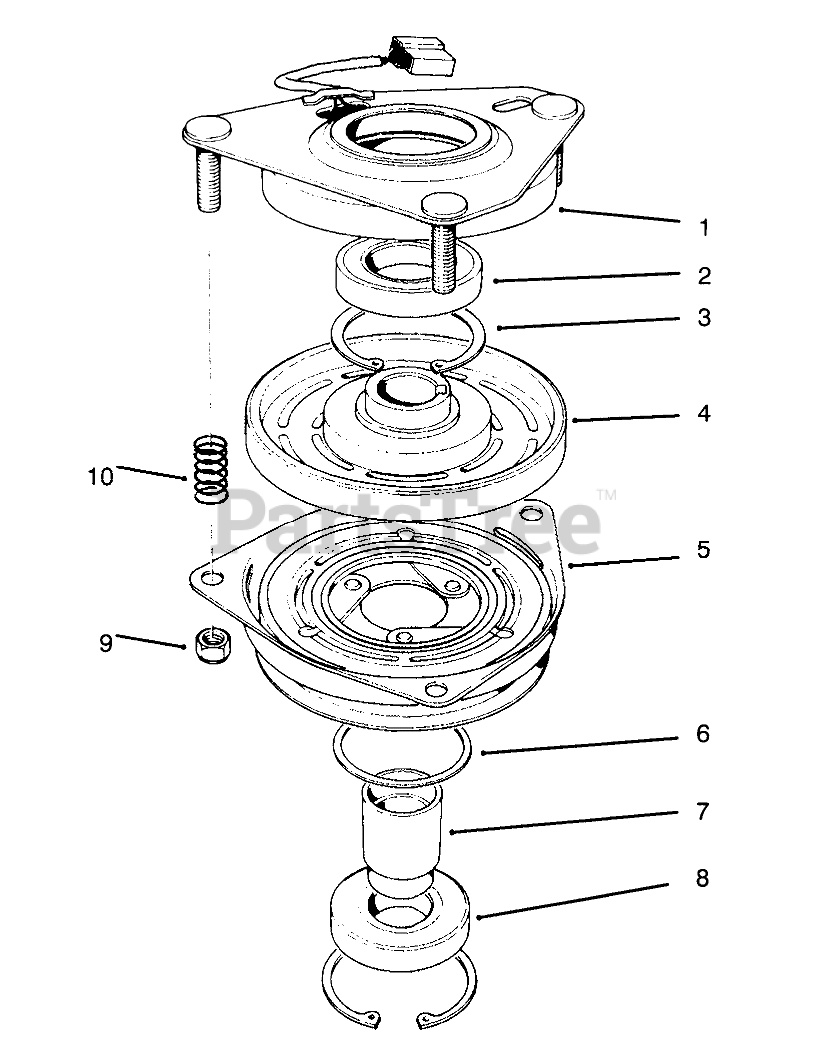

CLUTCH ASSEMBLY NO. 54-0220 Parts Diagram

  • Title

1

Toro 54-0230

Field Assembly(Incl Ref. #2, 3)

$415.99

$

Usually ships in 3-6 days

0

2

Toro 251-292

BEARING-FIELD

$134.99

$

Usually ships in 3-6 days

0

3

Toro 44-8310

RING-RETAINING

$

$

Not available

4

Toro 444-8360

Field Coil, Rotor & Bearing(Incl Ref. #1)

$

$

Currently unavailable

5

Toro 544-8370

Armature & Pulley Assembly(Incl Ref. #3, 6, 7, 8)

$

$

Currently unavailable

6

Toro 44-8330

SPACER-BEARING, PULLEY

$

$

Not available

7

Toro 44-8340

COLLAR-BEARING

$

$

Not available

8

Toro 251-291

BEARING-PULLEY
(Superseded to 251-312)

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 44-8320

SPRING

$9.49

$

Usually ships in 3-6 days

0
