30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) SEAT SUPPORT ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

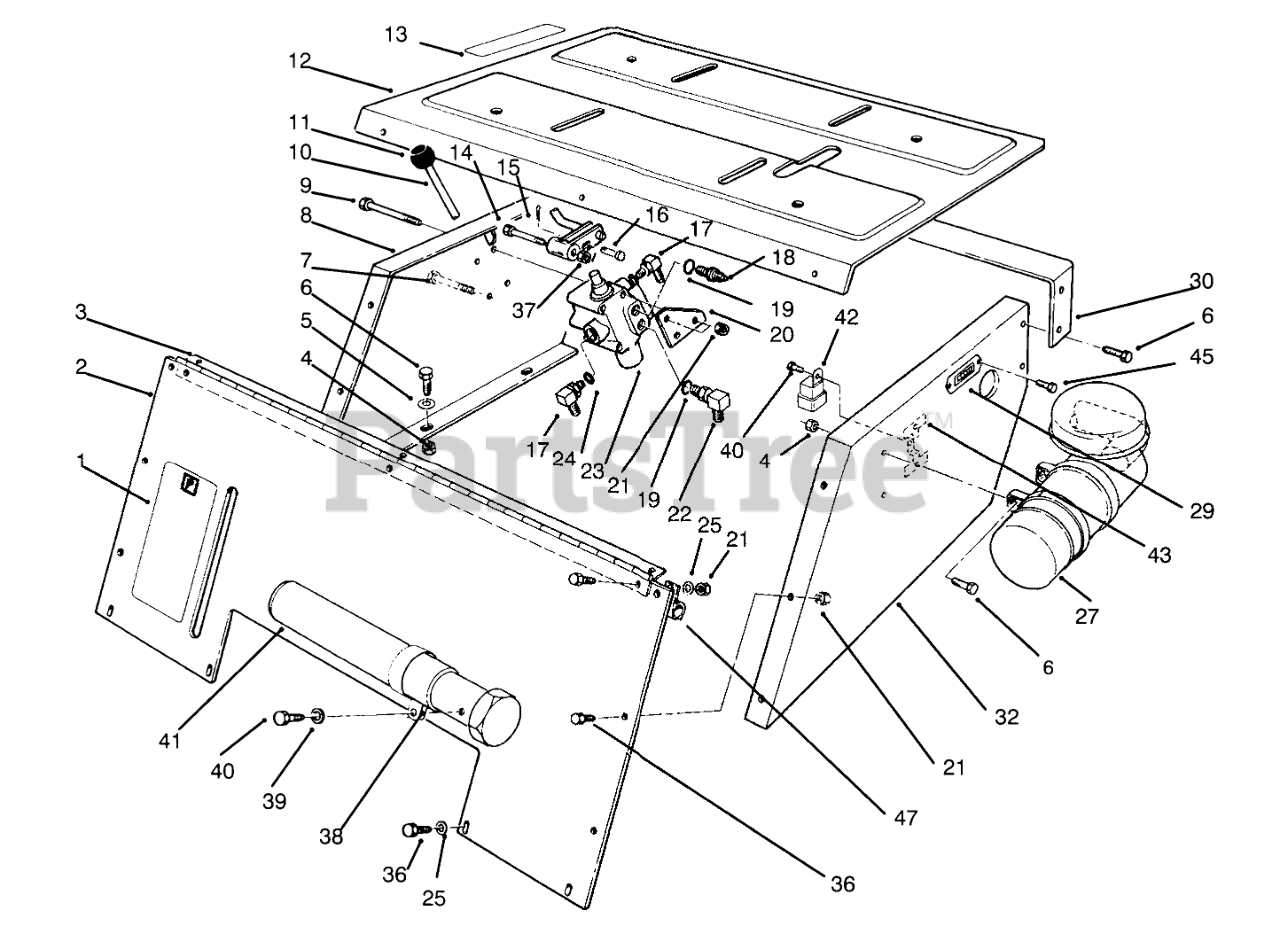

SEAT SUPPORT ASSEMBLY Parts Diagram

  • Title

1

Toro 54-0920

PARK BRAKE DECAL

$

$

Not available

2

Toro 80-3760

Support-Seat, Front
(Superseded to 80-3760-01)

$

$

Not available

3

Toro 54-3110

Hinge-Seat

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

8

Toro 54-1220

Support-Seat RH.
(Superseded to 54-1220-01)

$

$

Not available

9

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 82-4680

Lever-Valve
(Superseded to 82-4680-03)

$

$

Not available

11

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

12

Toro 92-6281

Plate-Seat
(Superseded to 92-6281-01)

$

$

Not available

13

Toro 54-0900

LIFT CONTROL DECAL

$

$

Not available

14

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

17

Toro 353-511

FITTING-HYD, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

18

Toro 353-545

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

20

Toro 82-4700

LEVER BRACKET

$

$

Not available

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 353-375

FITTING-ELBOW, 90

$57.99

$

Usually ships in 3-6 days

0

23

Toro 54-0090

VALVE ASM

$

$

Not available

24

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

25

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 11-4659

AIR CLEANER KIT
(Superseded to 46-6890)

$

$

Not available

29

Toro 75-6820

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

30

Toro 54-1550

Support-Hood
(Superseded to 54-1550-01)

$

$

Not available

32

Toro 92-5435

Support-Seat L.H.
(Superseded to 92-5435-01)

$

$

Not available

36

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

39

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

40

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

41

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

42

Toro 63-7590

RELAY

$83.99

$

Usually ships in 3-6 days

0

43

Toro 92-6259

Bracket
(Superseded to 92-6259-03)

$

$

Not available

45

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

47

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0
