30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) OIL PAN/LUBRICATION Parts Diagram

ProLine Rear-Engine Riding Mower

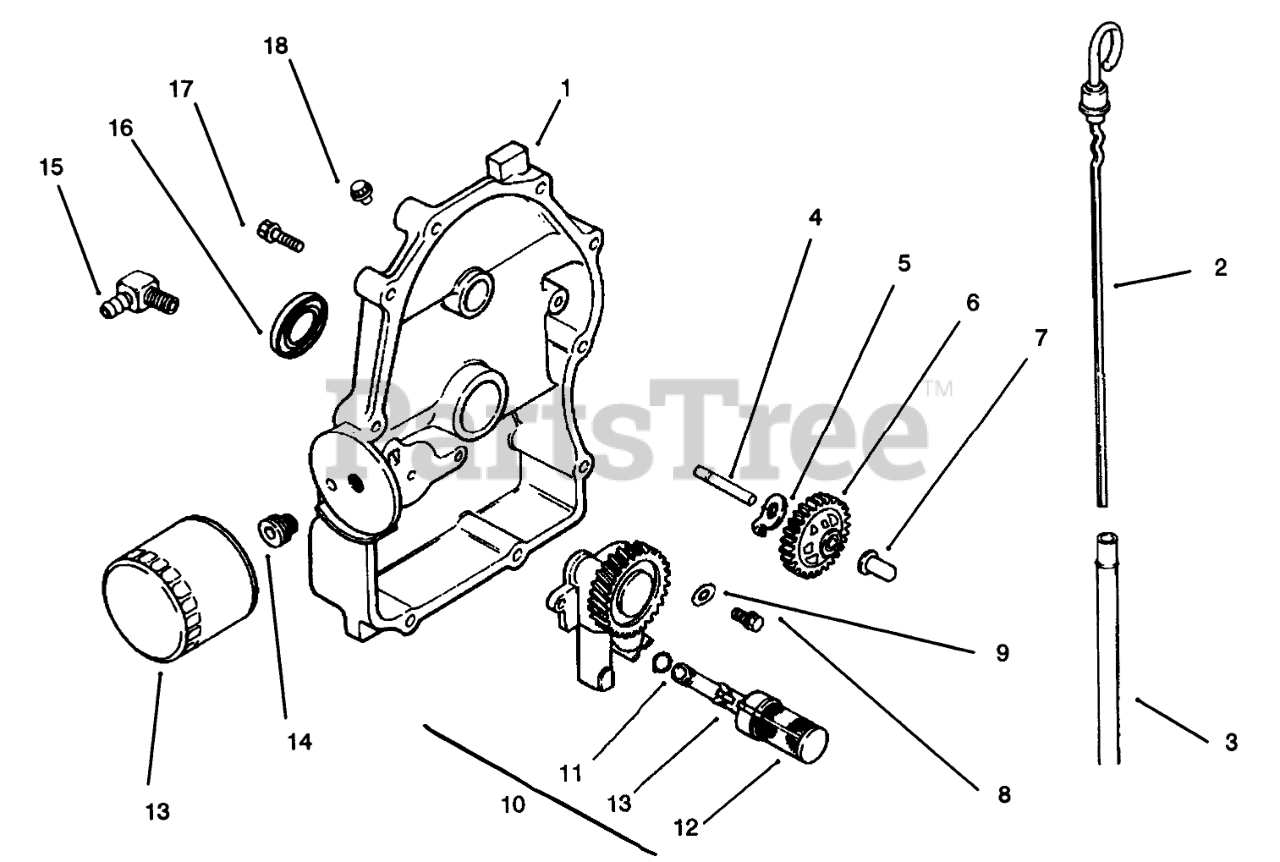

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

Toro 24_009_04

Plate-Closure

$

$

Currently unavailable

2

Toro 24_038_01

Dipstick

$

$

Currently unavailable

3

Toro 24_123_04

Tube-Dipstick

$

$

Currently unavailable

4

12_144_02

Shaft-Govenor Gear

$

$

Not available

5

Toro 52_448_02

Tab-Locking

$

$

Currently unavailable

6

Toro 24_043_07

Governor Gear Assembly

$

$

Currently unavailable

7

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

8

Kohler M-0645025

Screw
(Superseded to M-645025)

$2.49

$

In Stock, only 2 left!

0

9

Kohler SM-0631005

Washer

$

$

Not available

10

Toro 24_393_03

Oil Pump Assembly (Incl. Ref. # 11-12)

$

$

Currently unavailable

11

Toro 24_153_01

"O"Ring

$

$

Currently unavailable

12

Toro 24_381_01

Pick-up, Oil

$

$

Currently unavailable

13

12_050_01

Filter-Oil

$

$

Not available

14

Toro 24_136_01

Nipple-Oil Filter

$

$

Currently unavailable

15

25_155_02

Connector-90deg.

$

$

Not available

16

Toro 52_032_08

Seal-Oil

$

$

Currently unavailable

17

Kohler SM-0839045

Screw

$

$

Not available

18

Toro 52_099_06

Switch-Oil Pressure

$

$

Currently unavailable

25_113_05

Decal-Oil Sentry

Note: Not illustrated

$

$

Not available
