30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) CRANKCASE Parts Diagram

ProLine Rear-Engine Riding Mower

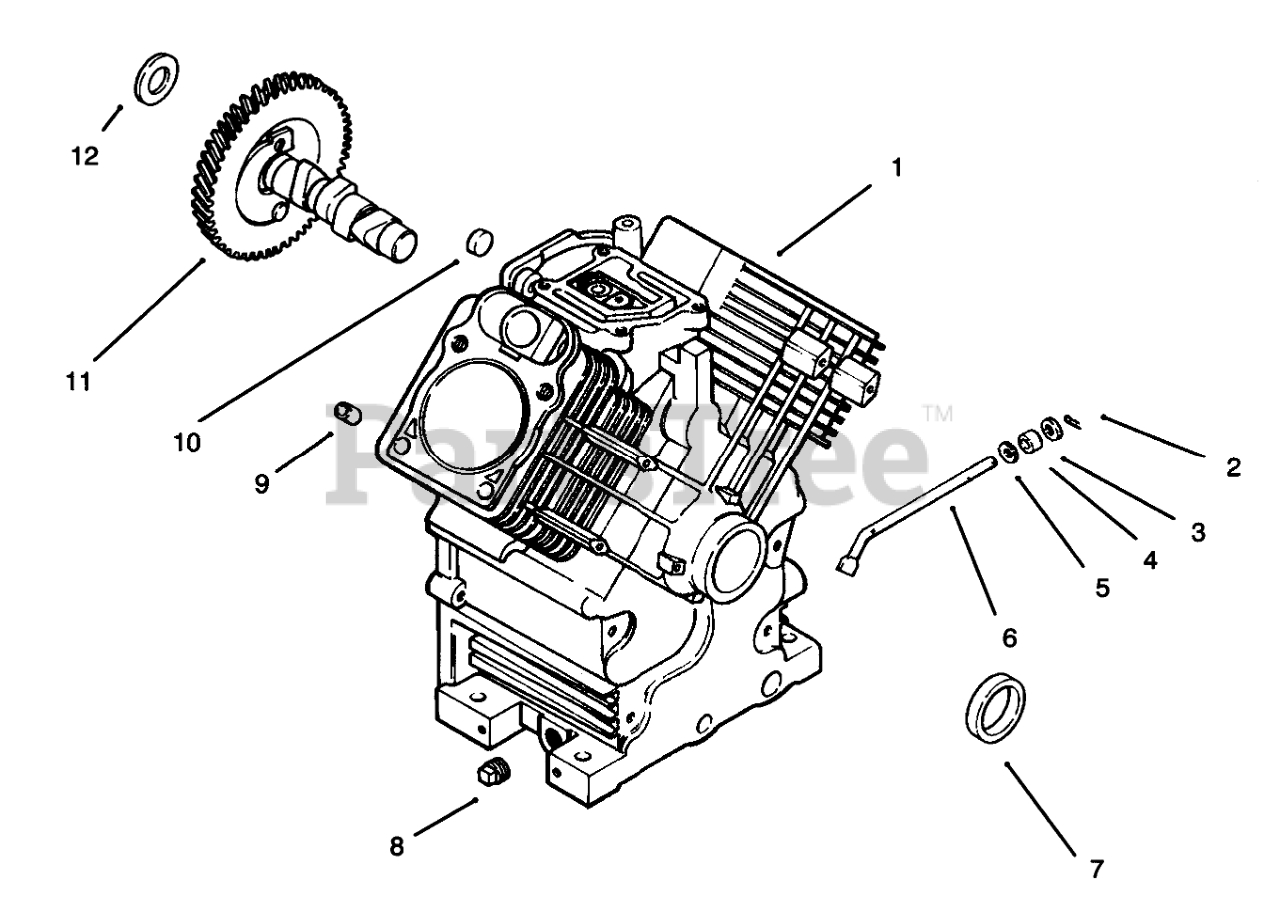

CRANKCASE Parts Diagram

  • Title

1

Cylinder block (USE: Miniblock 24 782 01)

$

$

Not available

2

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable

3

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

4

12_032_01

Seal

$

$

Not available

5

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

6

Toro 24_144_01

Shaft-Governor Cross

$

$

Currently unavailable

7

Toro 24_032_01

Seal-Oil

$

$

Currently unavailable

8

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

9

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

10

Toro 52_139_09

Cup

$

$

Currently unavailable

11

Toro 24_012_03

Camshaft

$

$

Currently unavailable

12

Toro 12_422_09

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_13

Shim-Camshaft

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_08

Shim-Camshaft

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

Note: Not illustrated

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

Note: Not illustrated

$

$

Currently unavailable

Toro 24_782_01

Short Block

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_03

Gasket Set

Note: Not illustrated

$

$

Currently unavailable
