30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) BAFFLES & SHROUD Parts Diagram

ProLine Rear-Engine Riding Mower

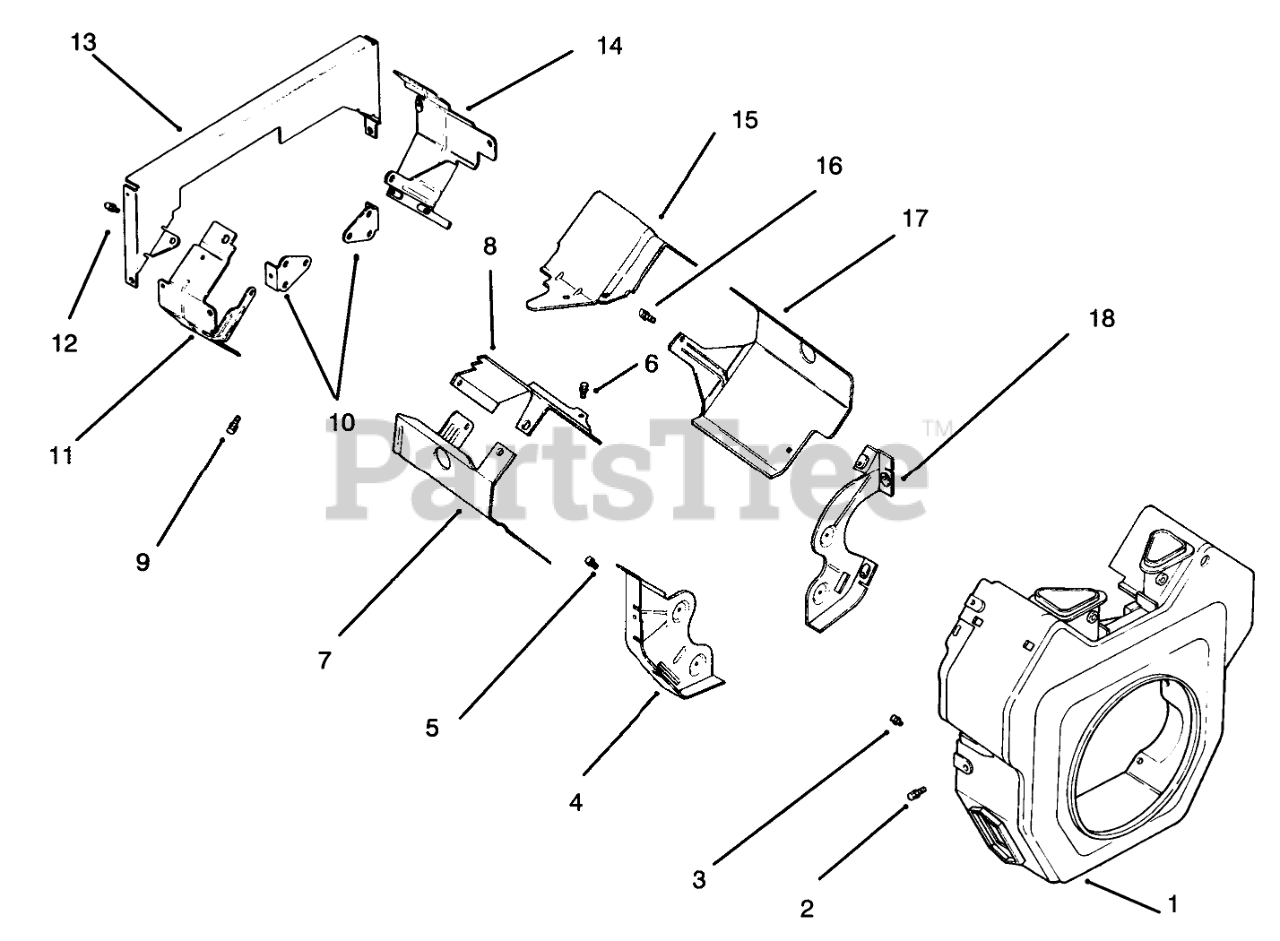

BAFFLES & SHROUD Parts Diagram

  • Title

1

Toro 24_027_08

Housing-Blower

$

$

Currently unavailable

2

Kohler M-0549016

Screw

$

$

Not available

3

Kohler M-0551016

Screw
(Superseded to M-551016-S)

$2.49

$

In Stock, only 1 left!

0

4

Toro 24_146_02

Plate-Backing #2 side

$

$

Currently unavailable

5

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

6

Kohler M-0649016

Screw
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

7

Toro 24_063_08

Baffle-Cylinder Barrel #1 side

$

$

Currently unavailable

8

Toro 24_063_02

Baffle-Valley #1 side

$

$

Currently unavailable

9

Kohler M-0549010

Screw
(Superseded to M-545010-S)

$4.49

$

In Stock, only 2 left!

0

10

Toro 24_126_04

Bracket-Support

$

$

Currently unavailable

11

Toro 24_063_13

Baffle-Ducted Air #1 side

$

$

Currently unavailable

12

Kohler M-0639010

Screw

$

$

Not available

13

Toro 24_146_04

Plat-Ducted Air Backing

$

$

Currently unavailable

14

Toro 24_063_12

Baffle-Ducted Air #1 side

$

$

Currently unavailable

15

Toro 24_063_01

Baffle, Valley #2 side

$

$

Currently unavailable

16

Kohler M-0549016

Screw

$

$

Not available

17

Toro 24_063_07

Baffle-Cylinder Barrel #2 side

$

$

Currently unavailable

18

Toro 24_146_01

Plate-Backing #1 side

$

$

Currently unavailable
