30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) AIR CLEANER, MODEL NO. 11-4659 Parts Diagram

ProLine Rear-Engine Riding Mower

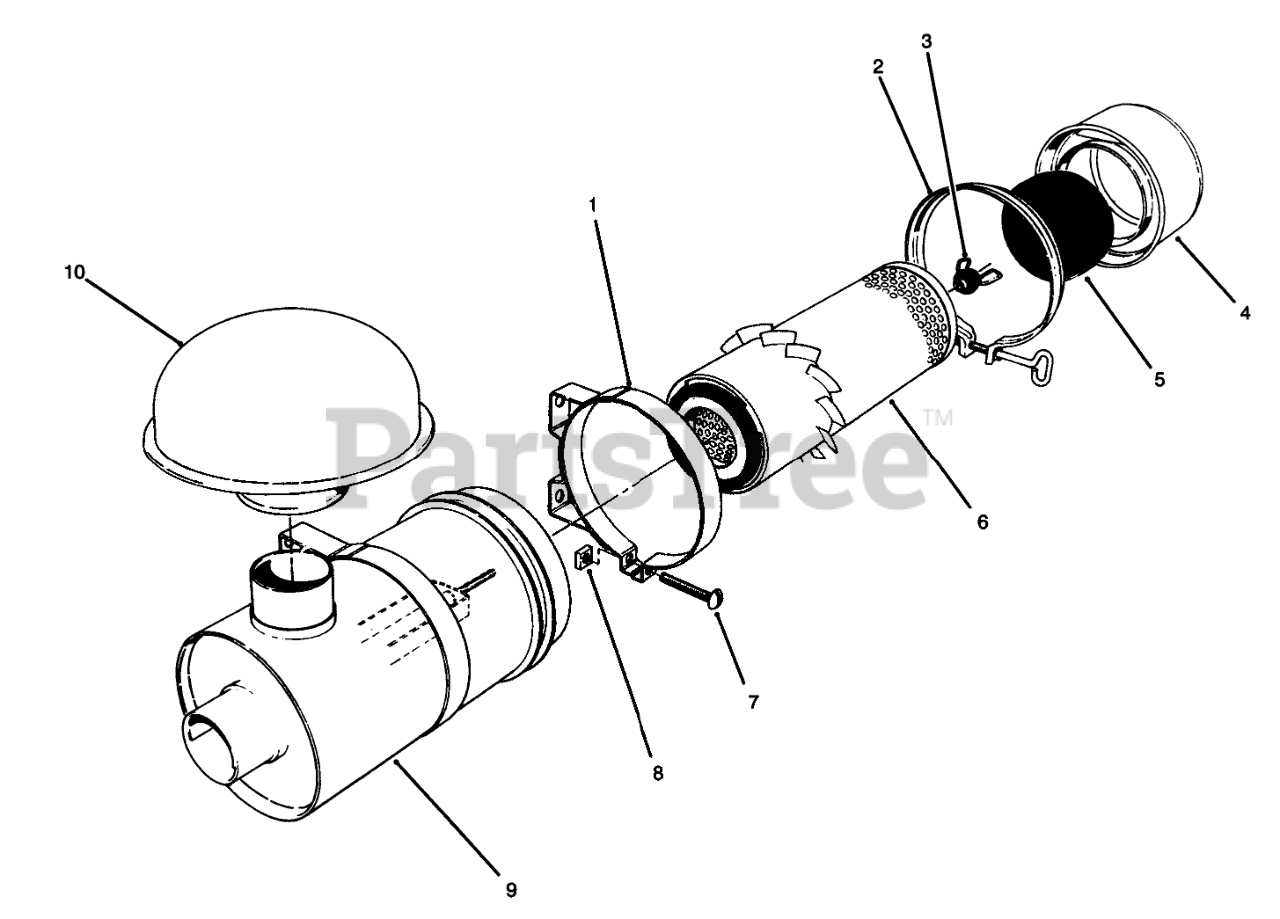

AIR CLEANER, MODEL NO. 11-4659 Parts Diagram

  • Title
1

Toro 33-1350

Band Assembly (Incl. Ref. #7 & 8)

$

$

Not available

2

Toro 33-1340

CLAMP ASM

$

$

Not available

3

Toro 33-1330

NUT ASM

$

$

Not available

4

Toro 33-1320

CUP ASM

$

$

Not available

5

Toro 33-1310

BAFFLE

$

$

Not available

6

Toro 33-1300

ELEMENT ASM
(Superseded to 108-3808)

$29.99

$

Usually ships in 3-6 days

0

7

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32107-11

NUT-SQUARE

$

$

Not available

9

Body Assembly

$

$

Not available

10

Toro 46-7510

HOOD-INLET, AIR

$109.99

$

Usually ships in 3-6 days

0
