30610 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 069000001 - 069999999) (1996) CRANKSHAFT PISTON AND RINGS Parts Diagram

Groundsmaster Rear-Engine Riding Mower

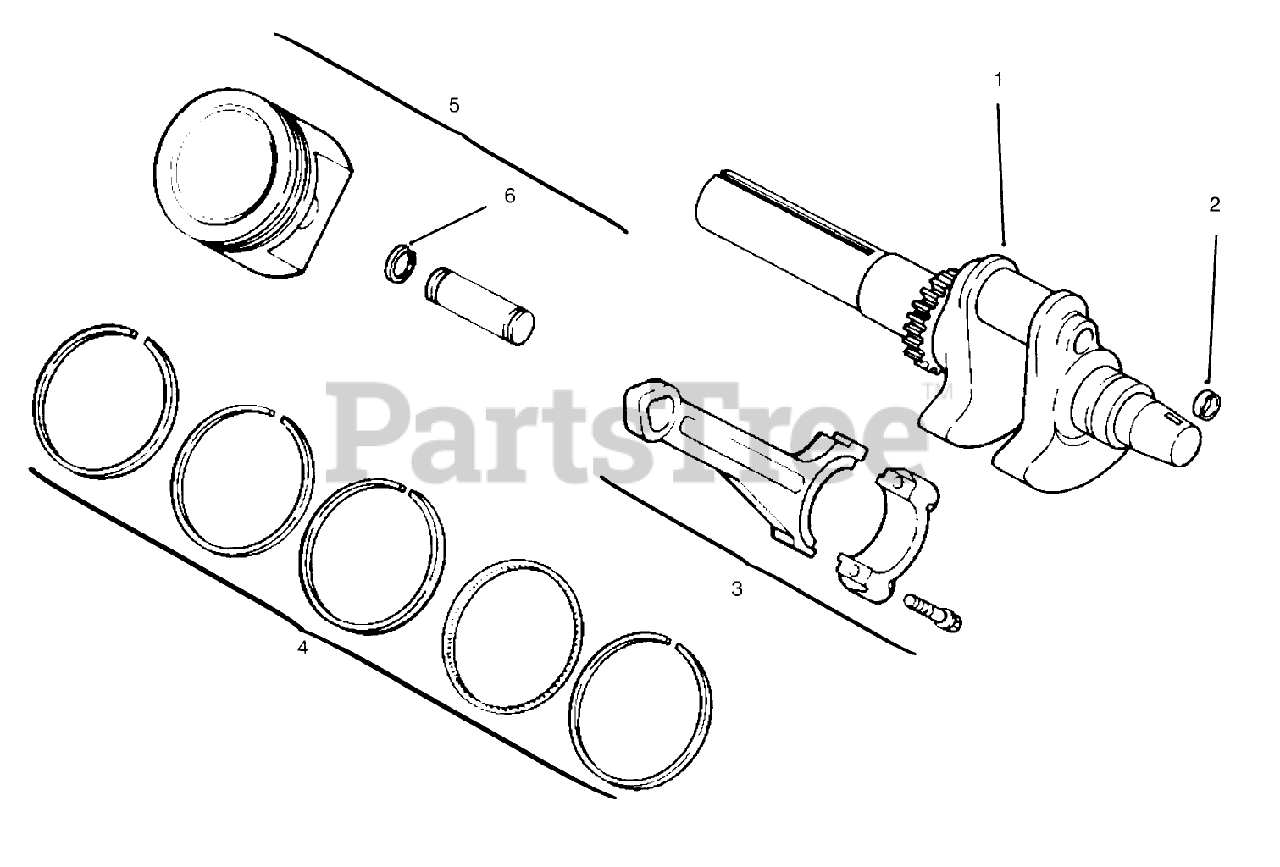

CRANKSHAFT PISTON AND RINGS Parts Diagram

  • Title

1

2401432

Crankshaft

$

$

Not available

2

1213901

Plug-Cup

$

$

Not available

3

2406705

Connecting Rod STD

$

$

Not available

2406706

Connecting Rod .25

Note: Not illustrated

$

$

Not available

4

2410801

Ring Set(Std.)

$

$

Not available

2410802

Set-Ring .25

Note: Not illustrated

$

$

Not available

2410803

Set-Ring .50

Note: Not illustrated

$

$

Not available

5

Kohler 24 874 01

Piston w/Ring Set (Std.) (Incl. Ref. #4-6)
(Superseded to 24 874 01-S)

$

$

Not available

2487402

Set-Piston w/Ring .25

Note: Not illustrated

$

$

Not available

Kohler 24 874 03

Piston ASM .50 INC4/7/8
(Superseded to 24 874 49-S)

Note: Not illustrated

$

$

Not available

6

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

$2.99

$

In Stock, Qty 7
