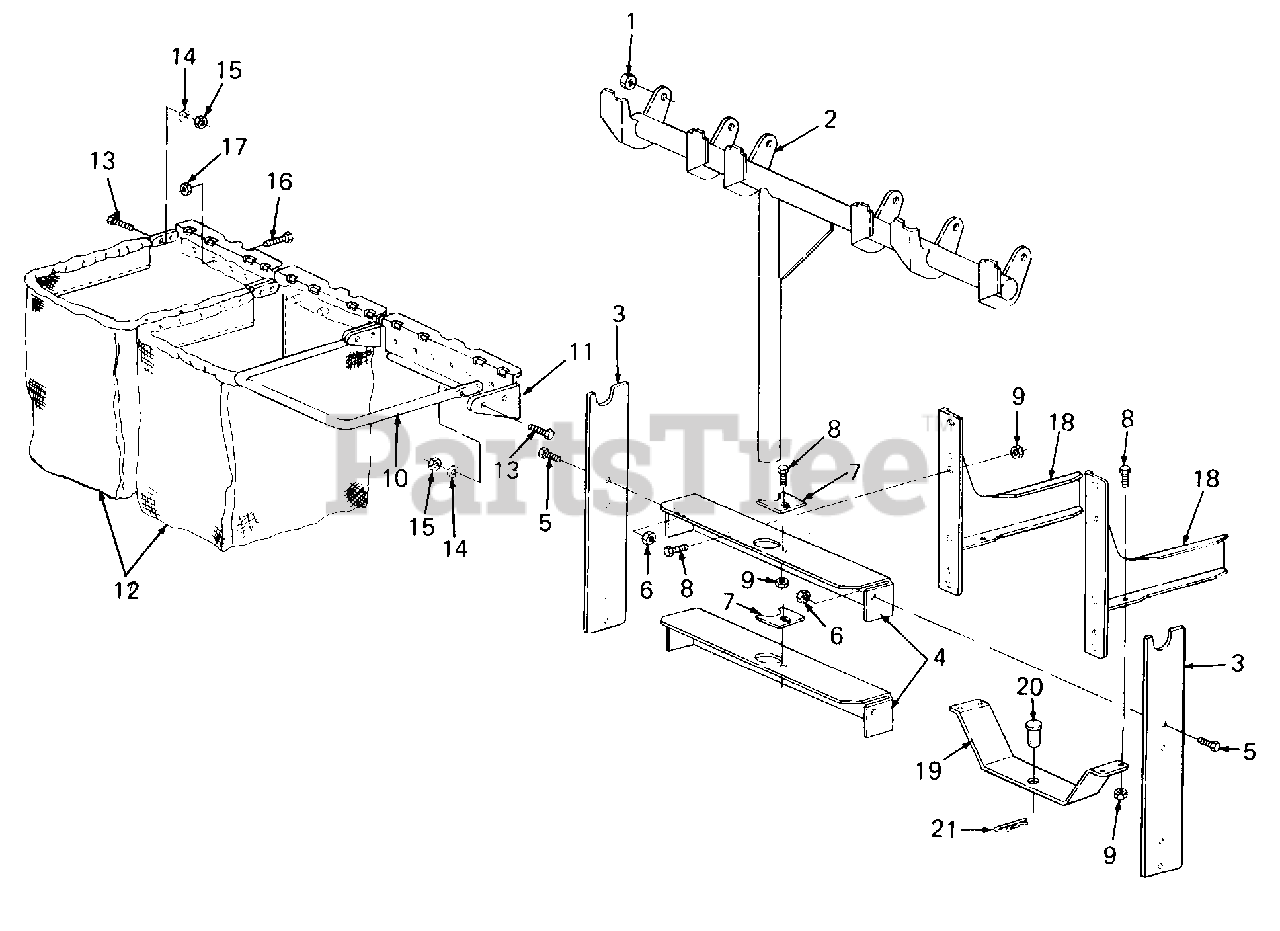

306 (190-306-100) - Cub Cadet Triple Rear Bagger Bag, Frame and Support Parts Diagram

Triple Rear Bagger

Bag, Frame and Support Parts Diagram

  • Title

1

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 749-0750

Tube Assy, Support
(Superseded to 689-00002-0637)

Variations

Cub Cadet 749-0750-0637

SUPPORT ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 16593A

Bracket, Support
(Superseded to 783-0601-0637)

Variations

Cub Cadet 16593A-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 17200A

Bracket, Support Tube Mounting

Variations

Cub Cadet 17200A-0637

BRACKET, CATCHER MTG. - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0118

Screw, Hex Cap, 5/16-18 x.75 Lg
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

L-Nut, Flange Top Hex, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 17247

Bracket, Support Tubing Adapter
(Superseded to 17247-0637)

Variations

Cub Cadet 17247-0637

BRACKET.-TUBING ADAPT - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0751

Screw, Hex, 1/4-20 x.62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3029

Nut, Hex Flange Top Locknut, 1/4

$6.99

$

In Stock, Qty 6

0

10

Cub Cadet 749-0745

Frame, Catcher Bag
(Superseded to 749-0745A-0637)

$

$

Not available

11

Cub Cadet 17201

Bracket, Bag Frame Hanger
(Superseded to 17201A-0637)

Variations

Cub Cadet 17201-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 764-0251

Bag, Grass Catcher
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0

13

Cub Cadet 710-0412

Screw, Hex, 1/4-28 x.75 Lg

$5.99

$

In Stock, Qty 9

0

14

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0192

Screw, Truss Mach., #10-24 x .38 Lg

$3.99

$

In Stock, Qty 12

0

17

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 703-2490

Bracket, Frame Support
(Superseded to 703-2490-0637)

Variations

Cub Cadet 703-2490-0637

Catcher Support Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-2489

Brace, Cross
(Superseded to 703-2489-0637)

Variations

Cub Cadet 703-2489-0637

Cross Brace, Black - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-0309

Pin, Clevis, .62 Dia
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 7

0

21

Cub Cadet 714-0750

Pin, Internal Cotter

$

$

Currently unavailable
