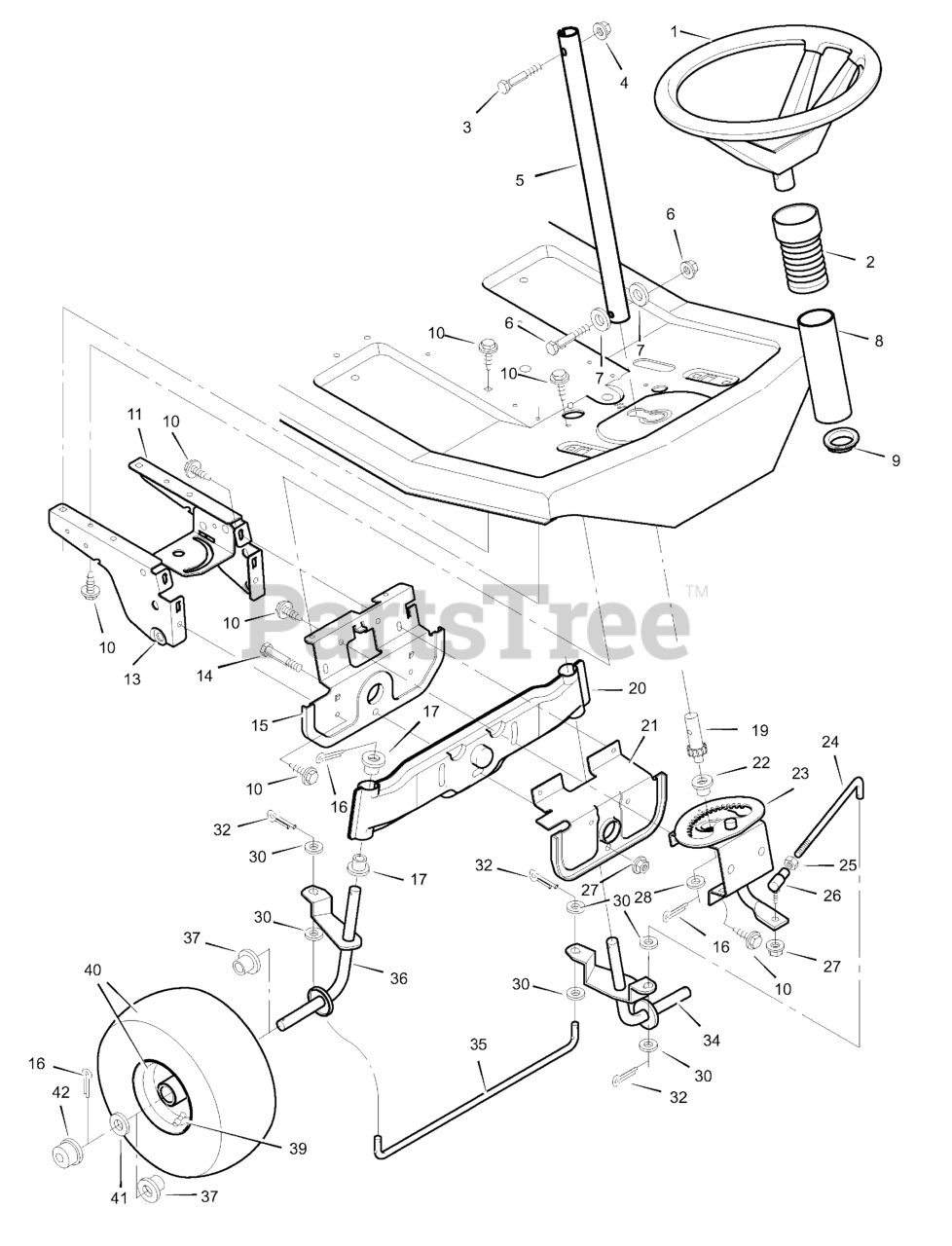

30577x31B - Scotts 30" Rear-Engine Riding Mower (1999) Steering Parts Diagram

30" Rear-Engine Riding Mower

Steering Parts Diagram

  • Title
1

Murray 054801

Steering Wheel

$

$

Currently unavailable

2

Murray 054789MA

Bellows

$9.99

$

Usually ships in 2-12 days

0

3

Murray 01X102

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

4

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

5

Murray 91444C

Post, Steering

$59.99

$

Usually ships in 2-12 days

0

6

Murray 015X88MA

Nut, Hex
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

7

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

8

Murray 054788

Cover, Steering Post

$

$

Currently unavailable

9

Murray 055004MA

Bearing

$4.49

$

Usually ships in 2-12 days

0

10

$4.99

$

In Stock, Qty 20+

0

11

Murray 56224E700

Plate, Left Suspension

$7.99

$

Usually ships in 2-12 days

0

13

Murray 056023E700

Plate, Right Suspension

$

$

Currently unavailable

14

Murray 001X69

Bolt, Hex

$

$

Currently unavailable

15

Murray 56231E700

Support, Front Axle

$

$

Currently unavailable

16

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

17

Murray 055003MA

Bearing, Spindle

$4.99

$

Usually ships in 2-12 days

0

19

Murray 056057MA

Gear, Pinion

$100.99

$

In Stock, only 1 left!

0

20

Murray 56223E700

Axle Assembly, Front

$

$

Not available

21

Murray 56230E700

Hanger Assembly, Front Axle

$

$

Currently unavailable

22

Murray 055168MA

Bearing

$

$

Not available

23

Murray 56236E700

Sector Assembly

$

$

Not available

24

Murray 056625 Z

Rod, Drag Link

$

$

Currently unavailable

25

Murray 015X61MA

Nut, Hex

$9.49

$

Usually ships in 2-12 days

0

26

Murray 021031MA

Ball Joint, Steering

$18.99

$

Usually ships in 2-12 days

0

27

Murray 015X87 Z

Locknut, Flange

$

$

Currently unavailable

28

$

$

Currently unavailable

30

$

$

Currently unavailable

32

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

34

Murray 400301MA

Spindle Assembly, Left

$

$

Not available

35

Murray 055026 Z

Rod, Tie

$

$

Currently unavailable

36

Murray 400302MA

Spindle Assembly, Right

$119.99

$

In Stock, only 1 left!

0

37

Murray 056105MA

Bearing, Wheel

Note: (Included with Ref. No. 40)

$8.99

$

Usually ships in 2-12 days

0

38

$67.99

$

Usually ships in 2-12 days

0

39

Murray 024373MA

Valve Stem

Note: (Included with Ref. No. 40)

$

$

Not available

40

Murray 92303601

Wheel & Tire Assembly

$140.99

$

Usually ships in 2-12 days

0

41

$8.49

$

In Stock, only 3 left!

0

42

Murray 094618MA

Cap, Hub

Note: (Optional)

$5.99

$

In Stock, only 4 left!

0
