30576x10D - Briggs & Stratton 30" Rear-Engine Riding Mower (1999) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

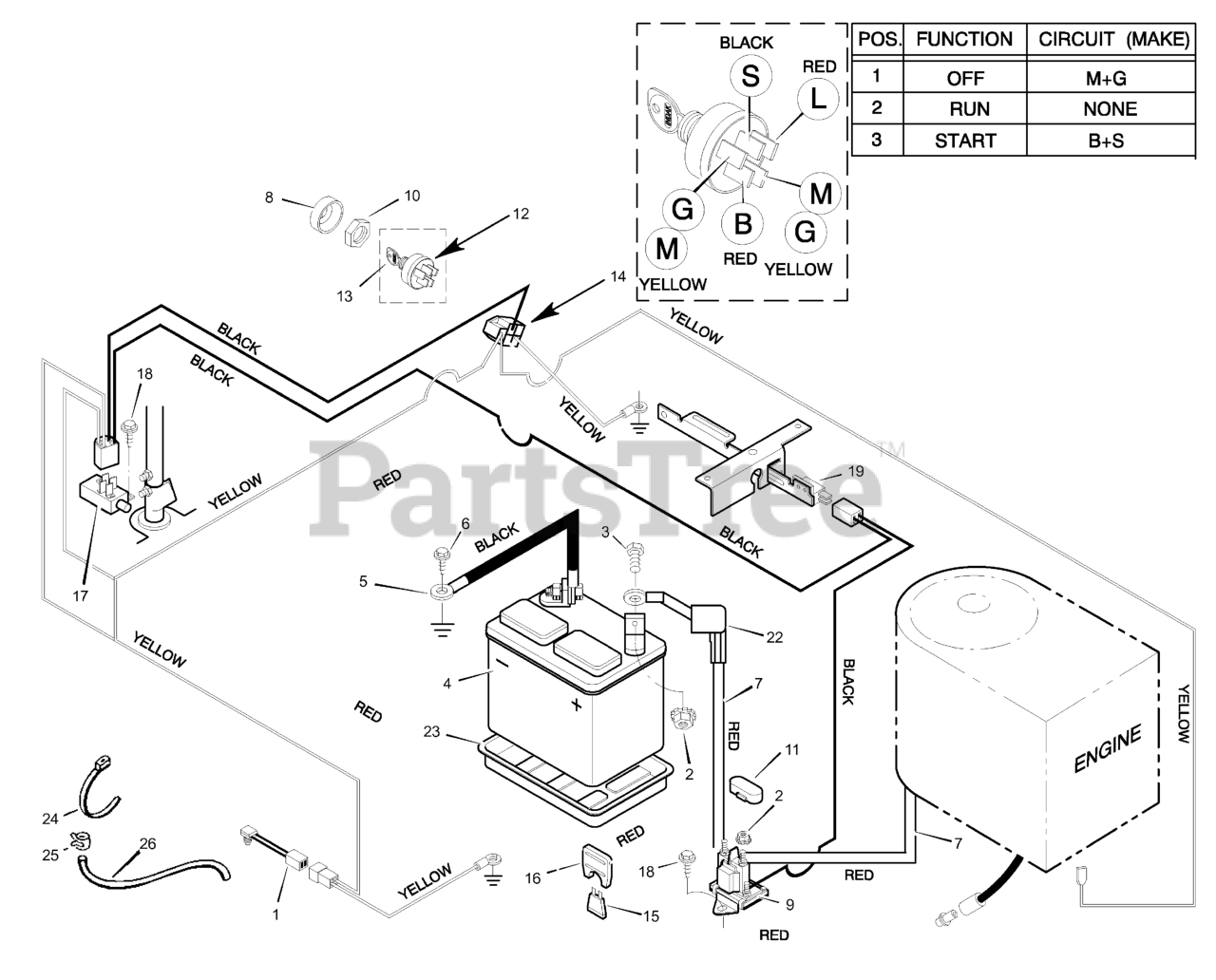

Electrical System Parts Diagram

  • Title

1

Murray 091031

Switch, Seat Sensor

$

$

Currently unavailable

2

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

3

Murray 001X38MA

Bolt

$4.49

$

In Stock, Qty 10

0

4

Murray 091414

Battery

$

$

Not available

5

Murray 0024X3MA

Cable, Battery Ground

$7.99

$

Usually ships in 2-12 days

0

6

Murray 026X49MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 024X24MA

Cable, Red Battery

$8.49

$

Usually ships in 2-12 days

0

8

Murray 091488

Cap, Ignition
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 024285

Solenoid

$

$

Currently unavailable

10

Murray 091489MA

Nut, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

11

Murray 056049

Cover, Solenoid

$3.49

$

Usually ships in 2-12 days

0

12

Murray 021064

Switch, Ignition

$

$

Currently unavailable

13

Murray 020729

Key, Ignition

$5.49

$

In Stock, Qty 11

0

14

Murray 250X84MA

Harness, Chassis Wire

$96.99

$

Usually ships in 2-12 days

0

15

Murray 054212

Fuse

$6.99

$

Usually ships in 2-12 days

0

16

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

17

Murray 091032MA

Switch, Limit

$28.99

$

Usually ships in 2-12 days

0

18

Murray 26X233MA

Screw

$3.99

$

Usually ships in 2-12 days

0

19

Murray 024273MA

Switch, Limit
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

22

Murray 054148MA

Cover, Terminal

$4.49

$

In Stock, only 1 left!

0

23

Murray 091896MA

Tray, Battery

$9.99

$

Usually ships in 2-12 days

0

24

Murray 032618MA

Strap, Tie

$3.99

$

Usually ships in 2-12 days

0

25

Murray 091565

Clamp

$3.49

$

Usually ships in 2-12 days

0

26

Murray 091584

Drain, Tube

$19.99

$

Usually ships in 2-12 days

0
