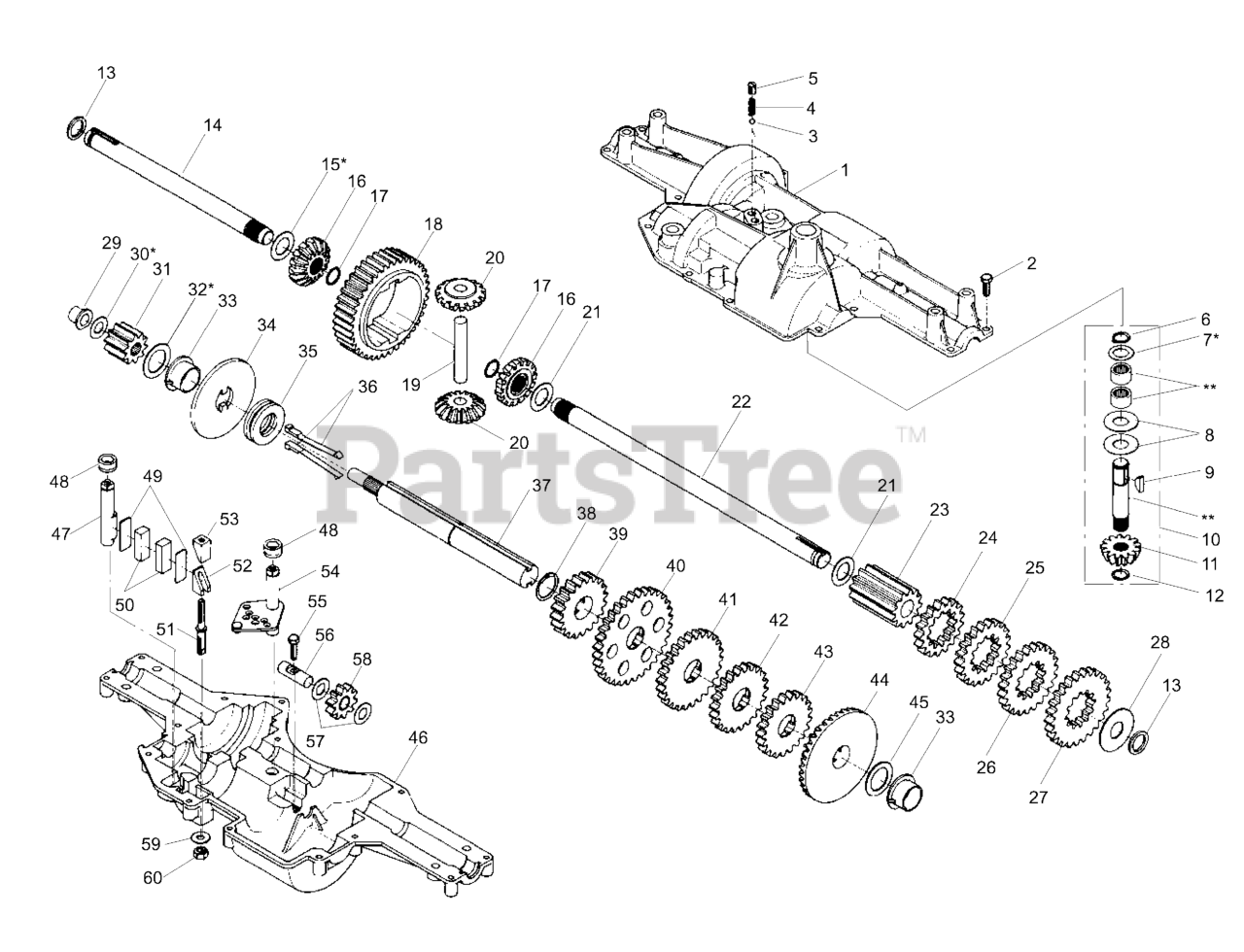

30576x10D - Briggs & Stratton 30" Rear-Engine Riding Mower (1999) 5 Speed Transaxle Dana Model: 4450-1 Parts Diagram

30" Rear-Engine Riding Mower

5 Speed Transaxle Dana Model: 4450-1 Parts Diagram

  • Title

1

Murray 3975

Housing, Upper

$

$

Currently unavailable

2

Murray 1919

Screw, Tapping 1/4-20x .734

Note: (14 required)

$

$

Not available

3

Murray 1151

Ball, Detent

Note: (2 required)

$

$

Not available

4

Murray 3626

Spring, Detent (2 req.)

$

$

Not available

5

Murray 3623

Screw, Set

Note: (2 required)

$

$

Not available

6

Murray 1099

Ring, Retainer

$

$

Not available

7

Murray 1082

Washer, Plain .632 x 1.00 x .031

Note: (Use various combinations for proper clearance)

$

$

Not available

7

Murray 1424

Washer, Plain .632 x 1.00 x .036

Note: (Use various combinations for proper clearance)

$

$

Not available

7

Murray 1068

Washer, Plain .632 x 1.00 x .041

Note: (Use various combinations for proper clearance)

$

$

Not available

7

Murray 1425

Washer, Plain .632 x 1.00 x .046

Note: (Use various combinations for proper clearance)

$

$

Not available

7

Murray 1358

Washer, Plain .632 x 1.00 x .050

Note: (Use various combinations for proper clearance)

$

$

Not available

7

Murray 1145

Washer, Plain .632 x 1.00 x .060

Note: (Use various combinations for proper clearance)

$

$

Not available

7

Murray 1319

Washer, Plain .632 x 1.00 x .082

Note: (Use various combinations for proper clearance)

$

$

Not available

8

Murray 3876

Washer, Plain .632 x 1.38 x .046 (2 req.)

$

$

Not available

9

Murray 1374

Key, Woodruff, #9

$

$

Not available

10

Murray 4513

Assembly Kit, Input Shaft

$

$

Currently unavailable

11

Murray 3936

Pinion, Bevel 13T

$

$

Not available

12

Murray 3956

Ring, Retainer

$119.99

$

Usually ships in 2-12 days

0

13

Murray 3191

Seal, Felt

Note: (2 required)

$

$

Not available

14

Murray 3939

Axle, L.H.

$

$

Currently unavailable

15

Murray 3408

Washer, Plain .758 x 1.25 x .020

Note: (Use various combinations for proper clearance)

$

$

Not available

15

Murray 3732

Washer, Plain .758 x 1.25 x .025

Note: (Use various combinations for proper clearance)

$

$

Not available

15

Murray 3184

Washer, Plain .758 x 1.25 x .031

Note: (Use various combinations for proper clearance)

$

$

Not available

15

Murray 3733

Washer, Plain .758 x 1.25 x .035

Note: (Use various combinations for proper clearance)

$

$

Not available

15

Murray 3198

Washer, Plain .758 x 1.25 x .040

Note: (Use various combinations for proper clearance)

$

$

Not available

15

Murray 3734

Washer, Plain .758 x 1.25 x .045

Note: (Use various combinations for proper clearance)

$

$

Not available

15

Murray 3735

Washer, Plain .758 x 1.25 x .050

Note: (Use various combinations for proper clearance)

$

$

Not available

16

Murray 3780

Gear, Miter - 15T

Note: (2 required)

$

$

Not available

17

Murray 3656

Ring, Retainer (2 req.)

$

$

Not available

18

Murray 3934

Gear, Spur -39T

$

$

Currently unavailable

19

Murray 3919

Shaft, Cross

$

$

Not available

20

Murray 3781

Gear, Miter - 15T

Note: (2 required)

$

$

Not available

21

Murray 3180

Washer, Plain .758 x 1.25 x .062 (2 req.)

$

$

Not available

22

Murray 3940

Axle, R.H.

$

$

Currently unavailable

23

Murray 3953

Gear, Spur -12T

$

$

Currently unavailable

24

Murray 3951

Gear, Spur -17T

$

$

Currently unavailable

25

Murray 3941

Gear, Spur -21T

$

$

Currently unavailable

26

Murray 3942

Gear, Spur -23T

$

$

Currently unavailable

27

Murray 3943MA

Gear, Spur -25T
(Superseded to 703058)

$7.49

$

Usually ships in 2-12 days

0

28

Murray 3955

Washer, Plain .758 x 1.88 x .062

$

$

Not available

29

Murray 3991

Bearing, Flange

$

$

Currently unavailable

30

Murray 3886

Washer, Plain .505 x .942 x .010

Note: (Use various combinations for proper clearance)

$

$

Not available

30

Murray 3887MA

Washer, Plain .505 x .942 x .015

Note: (Use various combinations for proper clearance)

$20.99

$

Usually ships in 2-12 days

0

30

Murray 3888

Washer, Plain .505 x .942 x .020

Note: (Use various combinations for proper clearance)

$

$

Not available

30

Murray 3889

Washer, Plain .505 x .942 x .026

Note: (Use various combinations for proper clearance)

$

$

Not available

30

Murray 3121

Washer, Plain .505 x .942 x .030

Note: (Use various combinations for proper clearance)

$

$

Not available

30

Murray 3890

Washer, Plain .505 x .942 x .040

Note: (Use various combinations for proper clearance)

$

$

Not available

30

Murray 3892

Washer, Plain .505 x .942 x .060

Note: (Use various combinations for proper clearance)

$

$

Currently unavailable

31

Murray 3933

Gear, Spur -10T

$

$

Currently unavailable

32

Murray 3961

Washer, Plain 1.01 x 1.50 x .061

Note: (Use various combinations for proper clearance)

$

$

Currently unavailable

32

Murray 3993

Washer, Plain 1.01 x 1.50 x .075

Note: (Use various combinations for proper clearance)

$

$

Currently unavailable

32

Murray 3994

Washer, Plain 1.01 x 1.50 x .090

Note: (Use various combinations for proper clearance)

$

$

Currently unavailable

33

Murray 3937

Bearing, Flange (2 req.)

$

$

Currently unavailable

34

Murray 3990

Disc, Brake

$

$

Currently unavailable

35

Murray 3959

Collar, Clutch

$

$

Currently unavailable

36

Murray 3996

Key, Clutch

Note: (2 required)

$

$

Currently unavailable

37

Murray 3997

Shaft, Drive

$

$

Currently unavailable

38

Murray 3958

Ring, Retainer

$

$

Currently unavailable

39

Murray 3949MA

Gear, Spur -20T

$9.99

$

Usually ships in 2-12 days

0

40

Murray 3948MA

Gear, Spur -32T

$

$

Not available

41

Murray 3947

Gear, Spur -26T

$

$

Currently unavailable

42

Murray 3946

Gear, Spur -22T

$

$

Currently unavailable

43

Murray 3945

Gear, Spur -21T

$

$

Currently unavailable

44

Murray 3938

Gear, Bevel, Comb. 39 & 18T

$

$

Currently unavailable

45

Murray 3961

Washer, Plain 1.01 x 1.50 x .061

$

$

Currently unavailable

46

Murray 3974

Housing, Lower

$

$

Currently unavailable

47

Murray 5003

Shaft, Brake

$115.99

$

Usually ships in 3-10 days

0

48

Murray 3789

V-Ring (2 req.)

$

$

Not available

49

Murray 5036

Spacer (2 req.)

$

$

Currently unavailable

50

Murray 5034

Puck, Friction (2 req.)

$

$

Currently unavailable

51

Murray 3998

Stud, Adjustment -Brake

$

$

Currently unavailable

52

Murray 5000

Cam, Adjustment -Slotted

$

$

Not available

53

Murray 3999

Cam, Adjustment -Brake

$

$

Currently unavailable

54

Murray 4449

Assembly, Shifter

$

$

Currently unavailable

55

Murray 3396

Screw, Tap 1/4 -18 x .875

$3.49

$

Usually ships in 2-12 days

0

56

Murray 3987

Shaft, Idler

$

$

Not available

57

Murray 3887MA

Washer, Plain .505 x .942 x .015

$20.99

$

Usually ships in 2-12 days

0

58

Murray 4492

Assembly, Gear Spur -10T

$

$

Currently unavailable

59

Murray 3906

Washer, Plain .325 x .750 x .059

$

$

Not available

60

Murray 3847

Locknut 5/16 -24

$

$

Not available

61

Murray 4300

Grease

$96.99

$

Usually ships in 2-12 days

0
