30576 - Toro 52" Grass Collection System for Groundsmaster 120 (SN: 079000001 - 079999999) (1997) DEFLECTOR AND PULLEY ASSEMBLY Parts Diagram

52" Grass Collection System for Groundsmaster 120

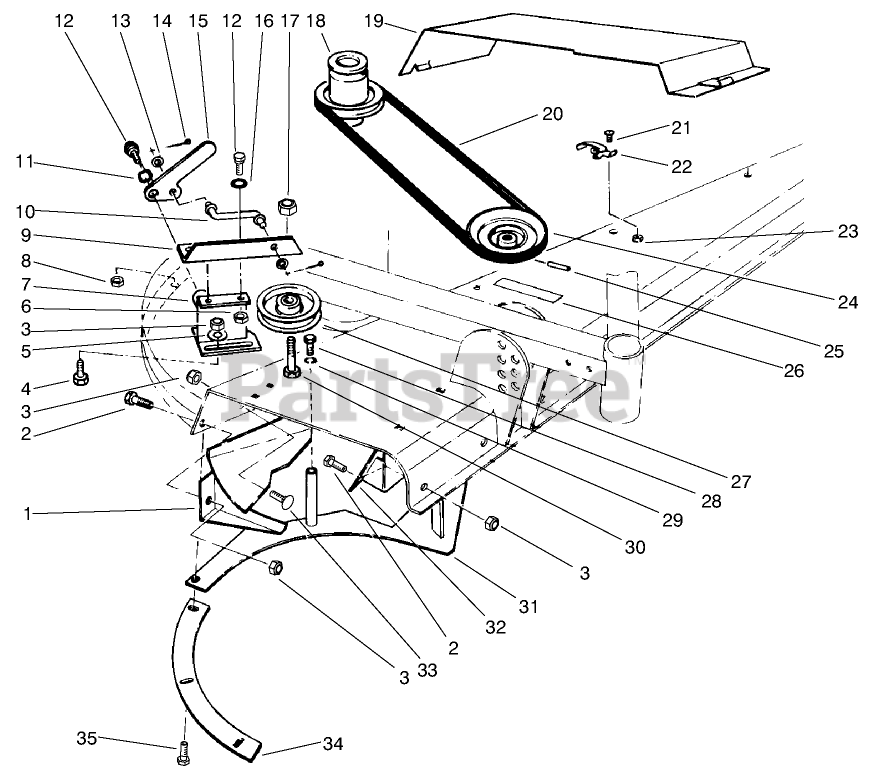

DEFLECTOR AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 59-5350

Deflector-Rear
(Superseded to 59-5350-01)

$262.99

$

Usually ships in 3-6 days

0

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 59-4920

Bracket-Idler
(Superseded to 59-4920-01)

$278.99

$

Usually ships in 3-6 days

0

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

9

Toro 59-4930

Slide-Idler
(Superseded to 59-4930-01)

$90.99

$

Usually ships in 3-6 days

0

10

Toro 59-4940

Idler Rod
(Superseded to 59-4940-01)

$167.99

$

Usually ships in 3-6 days

0

11

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

12

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 56-4900

Lever-Idler
(Superseded to 56-4900-01)

$33.99

$

Usually ships in 3-6 days

0

16

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

17

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

18

Toro 67-7460

Pulley
(Superseded to 67-7460-03)

$

$

Not available

19

Toro 59-5260

Cover-Right
(Superseded to 59-5260-01)

$

$

Not available

20

Toro 59-5270

V-BELT

$37.99

$

Usually ships in 3-6 days

0

21

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

22

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

23

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

24

Toro 56-4810

Pulley-Gear Box
(Superseded to 56-4810-03)

$270.99

$

Usually ships in 3-6 days

0

25

Toro 32121-8

PIN-ROLL, SLOTTED

$1.49

$

Usually ships in 3-6 days

0

26

Toro 43-1120

WARNING DECAL

$

$

Not available

27

Toro 56-4920

PULLEY-IDLER

$88.99

$

Usually ships in 3-6 days

0

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

30

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 44-7770

Rear Shelf
(Superseded to 44-7770-01)

$524.99

$

Usually ships in 3-6 days

0

32

Toro 92-6297

Deflector-Front
(Superseded to 92-6297-01)

$142.99

$

Usually ships in 3-6 days

0

33

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 44-7780

Shelf-RH
(Superseded to 44-7780-01)

$34.99

$

Usually ships in 3-6 days

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Toro 232-45

VALVE EXTENSION

Note: Not illustrated

$

$

Not available

Toro 56-5310

Weight-Wheel
(Superseded to 56-5310-01)

Note: Not illustrated

$545.99

$

Usually ships in 3-6 days

0

Toro 322-19

SCREW-HH

Note: Not illustrated

$6.49

$

In Stock, only 1 left!

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0
