30576 - Toro 52" Grass Collection System for Groundsmaster 120 (SN: 039000001 - 039999999) (1993) HOPPER ASSEMBLY Parts Diagram

52" Grass Collection System for Groundsmaster 120

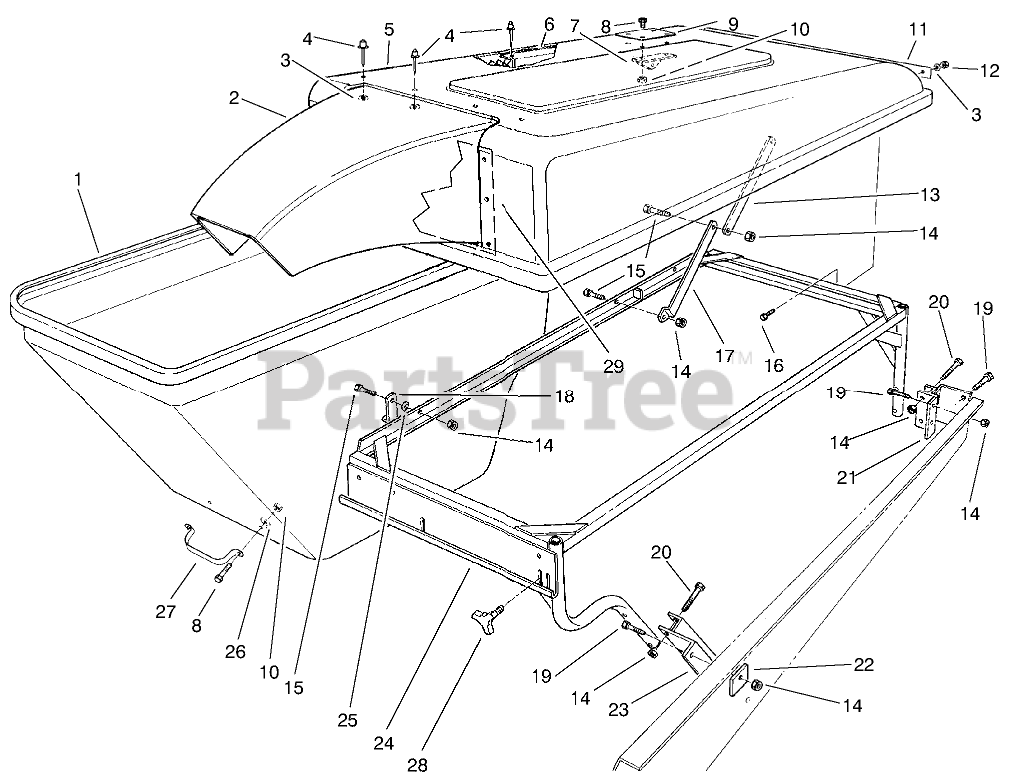

HOPPER ASSEMBLY Parts Diagram

  • Title
1

Toro 56-4650

BAGGER HOPPER

$

$

Not available

2

Toro 59-5210

BAGGER SNOUT

$

$

Not available

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

5

Toro 14-4119

HOOD-GRASS CATCH

$1573.99

$

Usually ships in 3-6 days

0

6

Toro 56-4581

Bagger Screen
(Superseded to 56-4581-03)

$

$

Not available

7

Toro 56-4610

Pivot
(Superseded to 56-4610-03)

$

$

Not available

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 62-6510

HOOD PLATE

$

$

Not available

10

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

11

Toro 62-6500

HINGE PLATE

$

$

Not available

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 56-4670

Link
(Superseded to 56-4670-03)

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

$0.99

$

In Stock, Qty 20+

0

17

Toro 56-4680

Link-Bag
(Superseded to 56-4680-03)

$

$

Not available

18

Toro 56-4660

Latch-Hopper
(Superseded to 56-4660-03)

$

$

Not available

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 56-4500

Bracket-Rear
(Superseded to 56-4500-01)

$

$

Not available

22

Toro 56-5350

Plate-Reinforcing
(Superseded to 56-5350-03)

$

$

Not available

23

Toro 56-4530

Bracket-Front
(Superseded to 56-4530-01)

$

$

Not available

24

Toro 56-4400

HOPPER FRAME WA

$1938.99

$

Usually ships in 3-6 days

0

25

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

26

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

27

Toro 3-3468

Handle
(Superseded to 3-3468-03)

$

$

Not available

28

$8.49

$

In Stock, only 1 left!

0

29

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
