30575 - Toro 72" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) STANDARD SEAT KIT MODEL NO. 30769 Parts Diagram

72" Side-Discharge Mower Deck

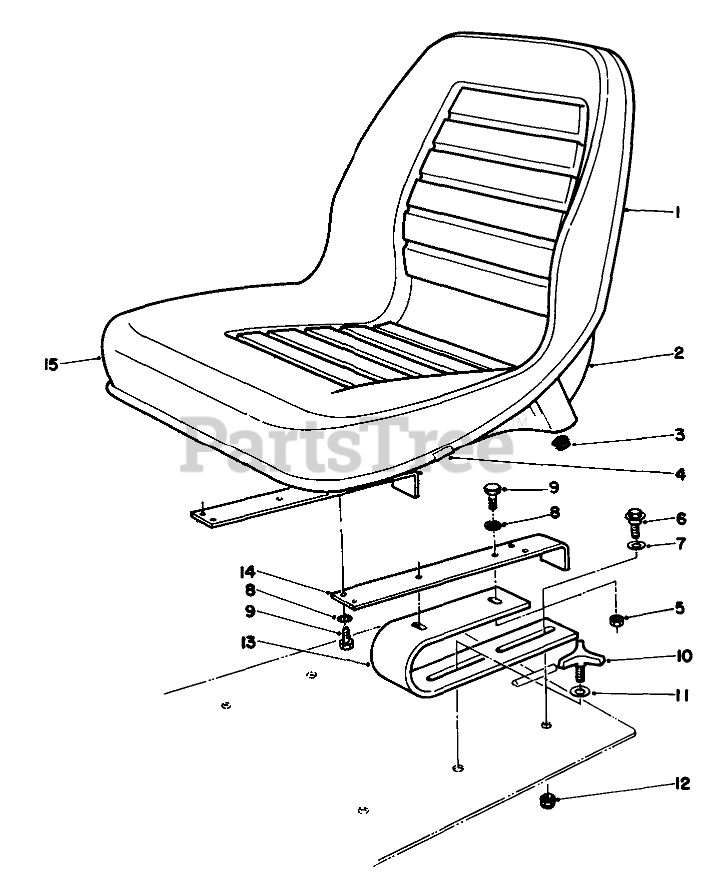

STANDARD SEAT KIT MODEL NO. 30769 Parts Diagram

  • Title

1

Edging

$

$

Not available

2

Toro 67-9560

Base
(Superseded to 92-6534)

$

$

Not available

3

Grommet

$

$

Not available

4

Clip

$

$

Not available

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

6

Toro 27-5240

BOLT-SHOULDER

$23.99

$

Usually ships in 3-6 days

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 27-4570

KNOB-SEAT

$30.99

$

Usually ships in 3-6 days

0

11

Toro 36-8020

WASHER

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 46-9110

Spring-Seat
(Superseded to 46-9110-03)

$162.99

$

Usually ships in 3-6 days

0

14

Toro 46-9120

Mount-Seat
(Superseded to 46-9120-03)

$

$

Not available

15

Toro 67-9550

Cushion-Seat
(Superseded to 92-6533)

$375.99

$

Usually ships in 3-6 days

0

Toro 66-5400

Seat Assembly (Incl. Ref. #1, 2 & 15)
(Superseded to 104-4620)

$

$

Not available
