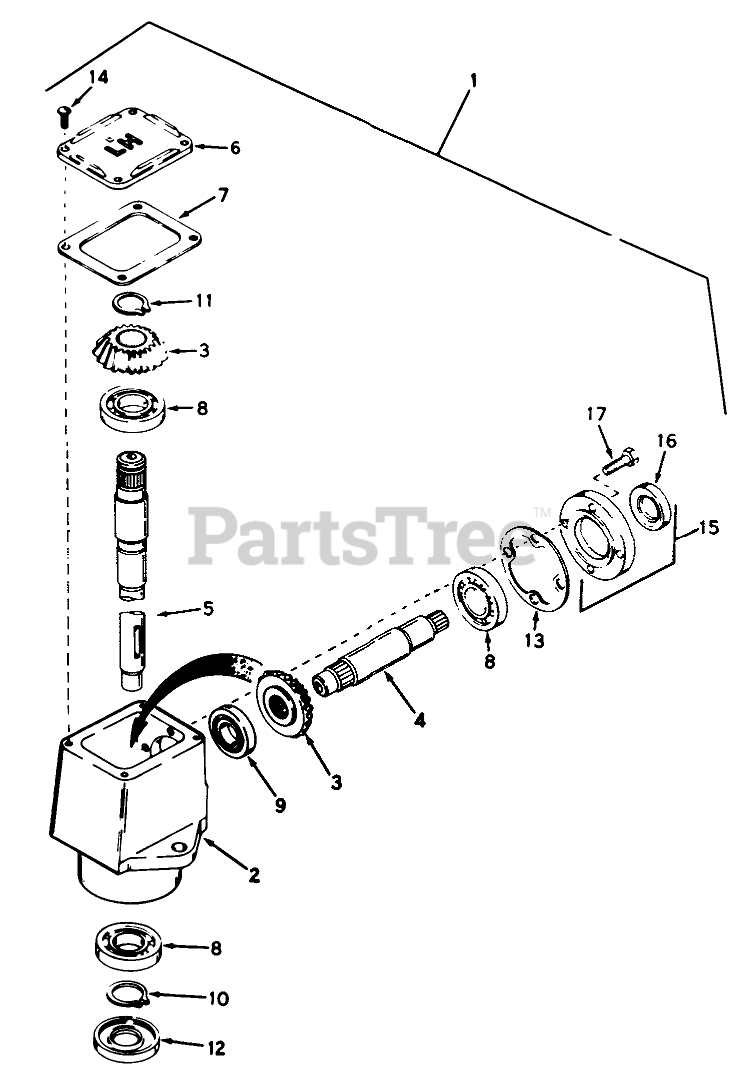

30575 - Toro 72" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) GRASS COLLECTOR MODEL 30561 (OPTIONAL) Parts Diagram

72" Side-Discharge Mower Deck

GRASS COLLECTOR MODEL 30561 (OPTIONAL) Parts Diagram

  • Title
1

Toro 794402

Head Assy., Left Hand (Incl. Ref. #2-15)

$

$

Currently unavailable

2

Toro 770026A

Housing

$

$

Currently unavailable

3

Toro 778046

Bevel Gear

$

$

Currently unavailable

4

Toro 776250

Shaft-Input

$

$

Currently unavailable

5

Toro 776249

Shaft-Output

$

$

Currently unavailable

6

Toro 772035

Cover

$

$

Currently unavailable

7

Toro 788028

Gasket

$

$

Currently unavailable

8

Toro 780034

Bearing

$

$

Currently unavailable

9

Toro 780024

Bearing

$

$

Currently unavailable

10

Toro 788019

Ring-Snap

$

$

Currently unavailable

11

Toro 788018

Ring-Snap

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 788030

Gasket

$

$

Currently unavailable

14

Toro 792025

Screw

$

$

Currently unavailable

15

Toro 786029

Cap & Seal Assy., Retainer (Incl. Ref. #16 & 17)

$

$

Currently unavailable

16

Toro 788031

Oil Seal

$

$

Currently unavailable

17

Toro 792026

Ring Set (STD)

$

$

Currently unavailable
