30575 - Toro 72" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) GAS TANK AND AXLE ASSEMBLY Parts Diagram

72" Side-Discharge Mower Deck

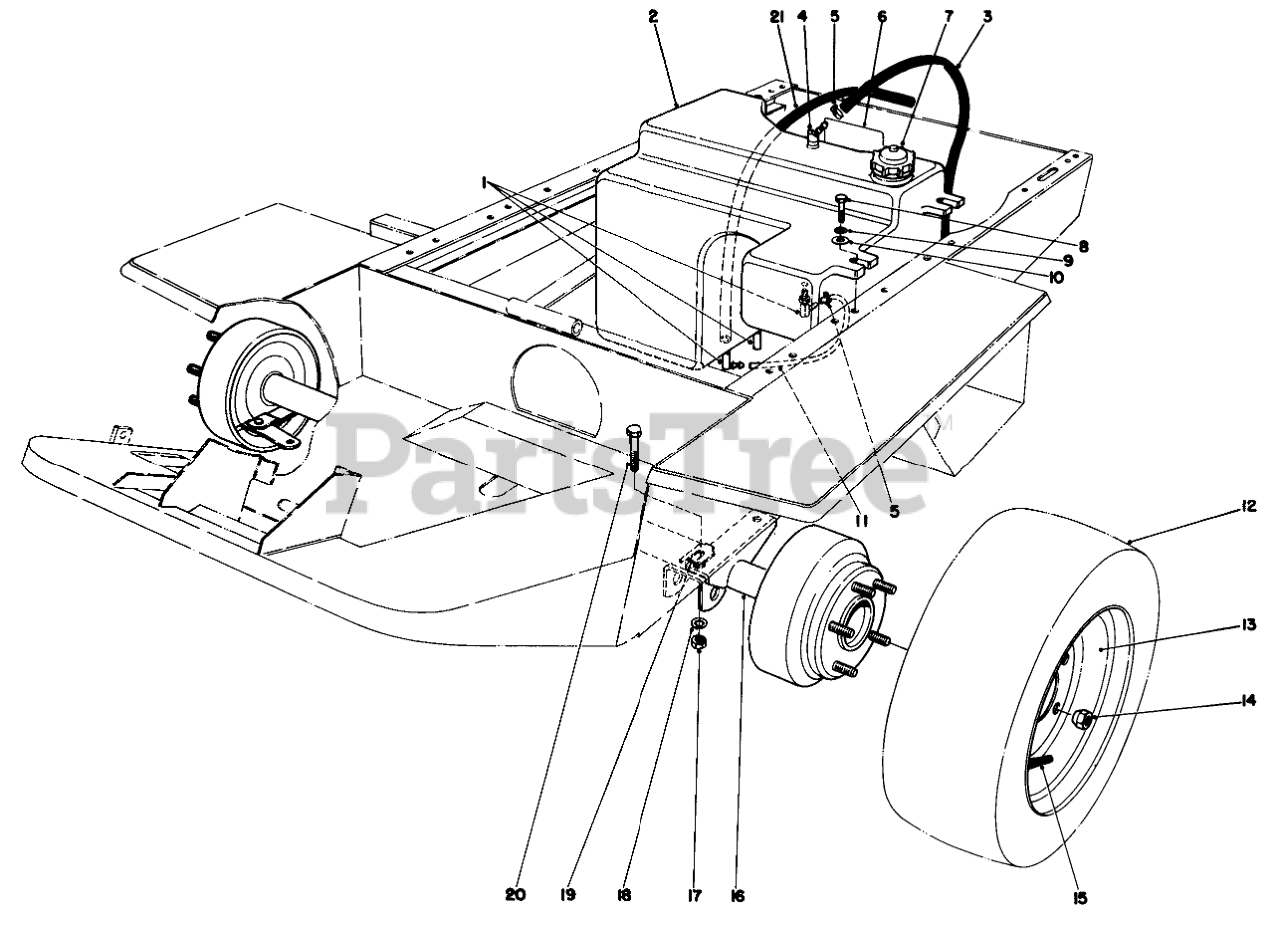

GAS TANK AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 353-536

FITTING-ELBOW, 90 DEG

$

$

Not available

2

Toro 43-5350

Gas Tank (Incl. Ref. # 1 & 3)

$

$

Not available

3

Toro 37-9920

GAS TANK VENT HOSE
(Superseded to 109-0308)

$11.99

$

Usually ships in 3-6 days

0

4

Toro 353-705

ELBOW

$

$

Not available

5

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

6

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

7

Toro 55-3574

GAS CAP ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

8

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

9

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

10

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

11

Toro 61-9650

Hose-Fuel
(Superseded to 110-4104)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 231-103

20 X 8.00 - 10 TIRE

$

$

Not available

13

Toro 217-107

WHEEL ASM

$

$

Not available

14

Toro 242-35

NUT-WHEEL

$9.99

$

Usually ships in 3-6 days

0

15

Toro 232-35

VALVE STEM AND CAP ASM
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

16

Toro 71-0890

Assembly-Axle
(Superseded to 86-9660-03)

$4928.99

$

Usually ships in 3-6 days

0

17

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

18

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 42-6080

SHIM-AXLE

$38.99

$

Usually ships in 3-6 days

0

20

Toro 324-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

21

Toro 71-3370

HOSE
(Superseded to 110-3258)

$27.99

$

Usually ships in 3-6 days

0

Toro 232-43

TUBE

$

$

Not available
