30575 - Toro 72" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) CARBURETOR & FUEL SYSTEM-ENGINE, ONAN MODEL NO. P220G, TYPE NO. 1/10808C Parts Diagram

72" Side-Discharge Mower Deck

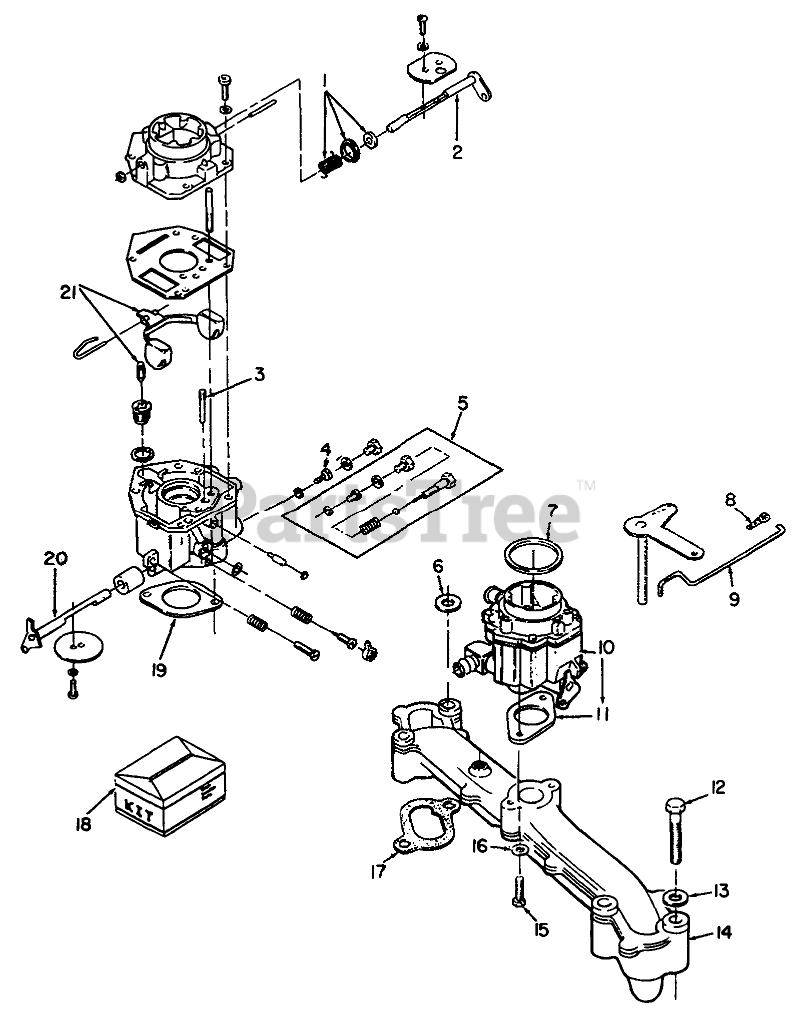

CARBURETOR & FUEL SYSTEM-ENGINE, ONAN MODEL NO. P220G, TYPE NO. 1/10808C Parts Diagram

  • Title
1

Toro 72-3870

CHOKE KIT LEVER

$

$

Not available

2

Toro 72-3860

CHOKE KIT SHAFT

$

$

Not available

3

Toro 62-2820

IDLE JET

$

$

Not available

4

Toro 57-9050

POWER JET

$

$

Not available

5

Toro 57-8950

Kit-Variable Jet

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

$

$

Not available

8

$5.49

$

In Stock, only 1 left!

0

9

Toro 57-9160

CONTROL ROD

$

$

Not available

10

Toro 62-2790

Carburetor-Complete
(Superseded to NN10204)

$

$

Not available

11

Toro 57-9200

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

12

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 71-6480

INTAKE MANIFOLD KIT

$

$

Not available

15

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 71-6330

Gasket

$

$

Currently unavailable

18

Toro 62-2810

Repair Kit
(Superseded to 82-0780)

$716.99

$

Usually ships in 3-6 days

0

19

Toro 57-9200

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

20

Toro 57-8920

Shaft-Throttle
(Superseded to NN10811)

$

$

Not available

21

Toro 62-2800

FLOAT

$164.99

$

Usually ships in 3-6 days

0
