30575 - Toro 72" Side-Discharge Mower Deck (SN: 009000001 - 009999999) (1989) HYDRAULIC VALVE AND LIFTARM CYLINDERS Parts Diagram

72" Side-Discharge Mower Deck

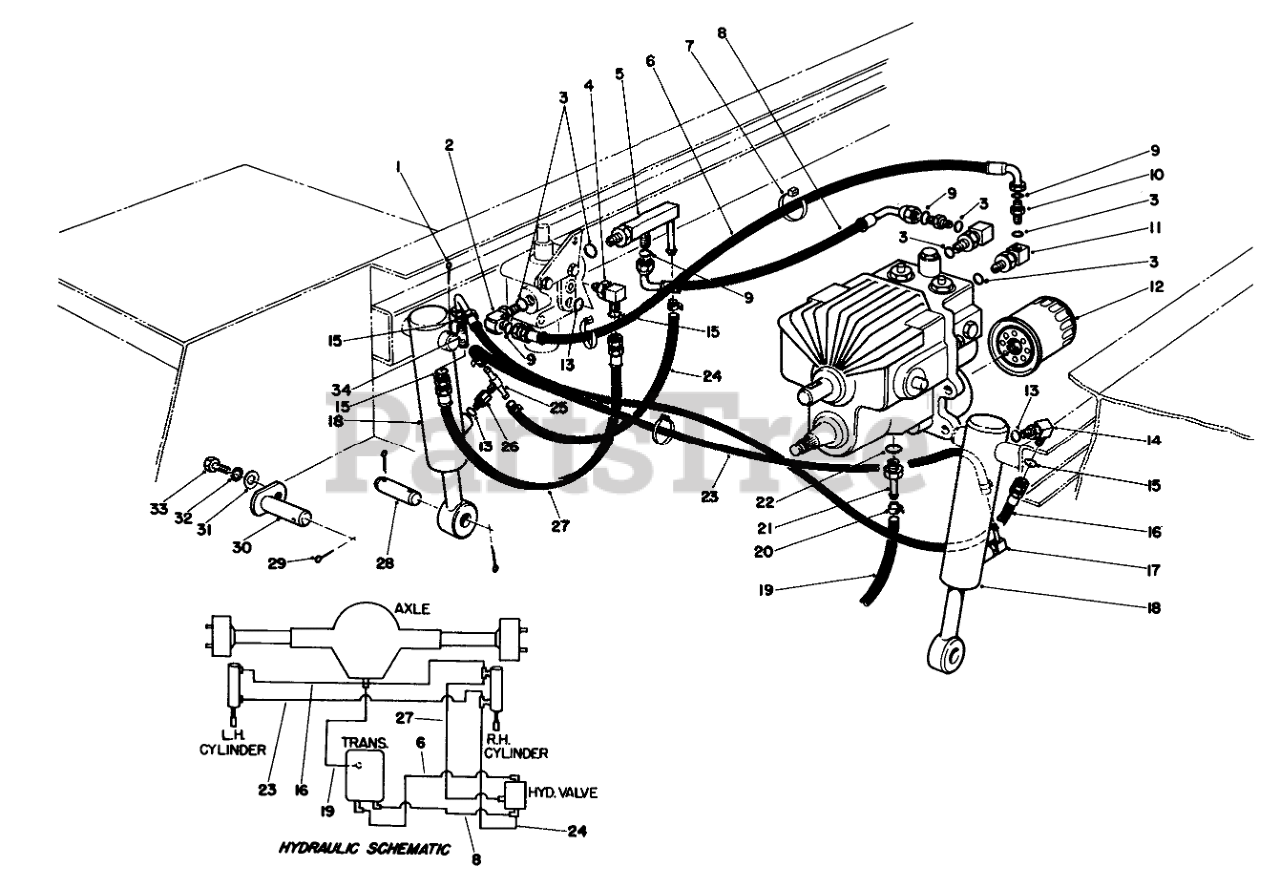

HYDRAULIC VALVE AND LIFTARM CYLINDERS Parts Diagram

  • Title

1

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

2

Toro 340-77

FITTING-ELBOW-90

$26.99

$

Usually ships in 3-6 days

0

3

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

4

Toro 340-132

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

5

Toro 71-0590

FITTING ASM

$

$

Not available

6

Toro 71-0670

HOSE ASSEMBLY

$

$

Not available

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 66-8190

HYDRAULIC HOSE ASM

$

$

Not available

9

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

10

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

11

Toro 66-3110

FITTING-HYD, 90 DEG

$79.99

$

Usually ships in 3-6 days

0

12

Toro 23-2300

FILTER-OIL, TRANSMISSION

$13.99

$

In Stock, only 2 left!

0

13

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

14

Toro 71-3270

90 DEGREE ELBOW

$

$

Not available

15

Toro 237-150

O RING

$

$

Not available

16

Toro 71-0680

HOSE ASSEMBLY

$

$

Not available

17

Toro 304-99

STEM-HOSE

$40.99

$

Usually ships in 3-6 days

0

18

Toro 68-9700

Cylinder-Hydraulic
(Superseded to 114-0626)

$584.99

$

Usually ships in 3-6 days

0

19

Toro 66-8130

HYDRAULIC HOSE

$

$

Not available

20

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

21

Toro 354-24

Fitting (Incl. Ref. #21)

$

$

Not available

22

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

23

Toro 27-4480

HOSE-FUEL
(Superseded to 109-0281)

$15.99

$

Usually ships in 3-6 days

0

24

Toro 71-3770

HYDRAULIC HOSE

$

$

Not available

25

Toro 353-567

MALE TEE FITTING

$

$

Not available

26

Toro 353-565

CONN FITTING

$

$

Not available

27

Toro 71-0690

HOSE ASSEMBLY

$92.99

$

Usually ships in 3-6 days

0

28

Toro 27-4240

PIN-CYLINDER

$26.99

$

Usually ships in 3-6 days

0

29

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

30

Toro 27-4310

Pin-Pivot
(Superseded to 27-4310-01)

$41.99

$

Usually ships in 3-6 days

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

34

Toro 340-125

FITTING-TEE

$86.99

$

Usually ships in 3-6 days

0
