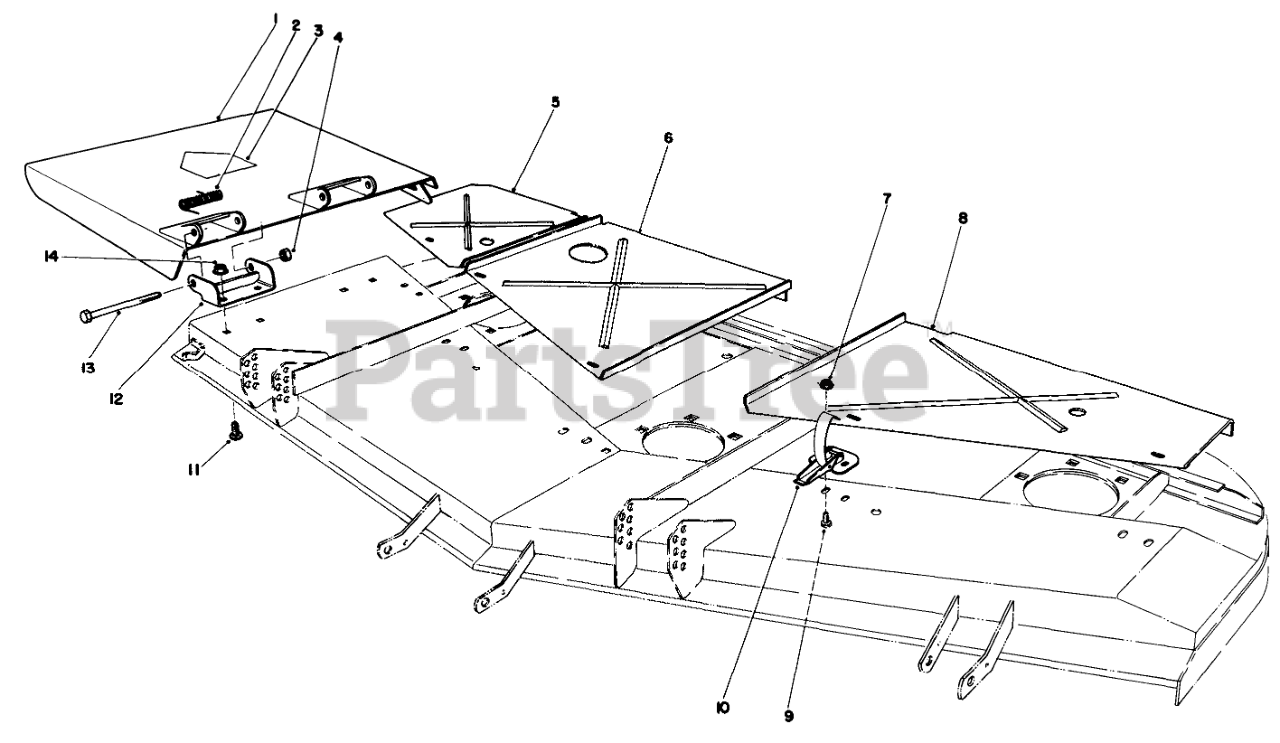

30575 - Toro 72" Side-Discharge Mower Deck (SN: 009000001 - 009999999) (1989) CUTTING UNIT MODEL NO. 30564 Parts Diagram

72" Side-Discharge Mower Deck

CUTTING UNIT MODEL NO. 30564 Parts Diagram

  • Title

1

Toro 52-5790

Deflector
(Superseded to 14-0909)

$403.99

$

Usually ships in 3-6 days

0

2

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0

3

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

4

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

5

Toro 63-9830

Cover-Deck R.H.
(Superseded to 63-9830-01)

$

$

Not available

6

Toro 65-5900

CTR DECK COVER R

$307.99

$

Usually ships in 3-6 days

0

7

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

8

Toro 44-6290

Cover-Deck L.H.
(Superseded to 44-6290-01)

$

$

Not available

9

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

11

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

12

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

13

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
