30575 - Toro 72" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) GRASS COLLECTOR MODEL NO. 30558 (OPTIOANL) Parts Diagram

72" Side-Discharge Mower Deck

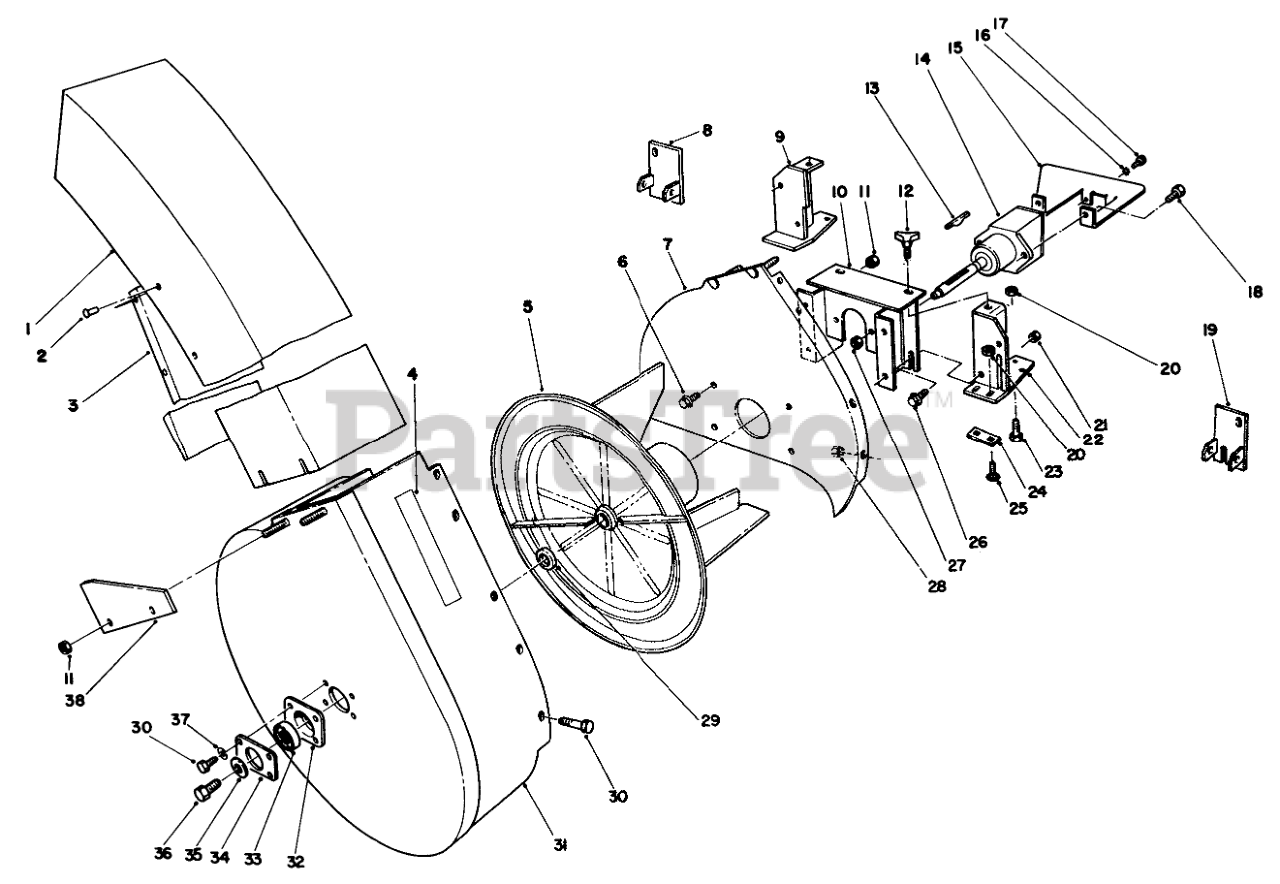

GRASS COLLECTOR MODEL NO. 30558 (OPTIOANL) Parts Diagram

  • Title

1

Toro 44-5300

Chute Assembly (Incl. Ref. #2 & 3
(Superseded to 94-2672)

$623.99

$

Usually ships in 3-6 days

0

2

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

3

Toro 44-5290

Deflector-Chute

$

$

Currently unavailable

4

Toro 43-1110

Decal-Waming
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 56-4780

Impeller
(Superseded to 56-4780-03)

$1068.99

$

Usually ships in 3-6 days

0

6

Toro 3234-5

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 59-5070

Mounting Plate
(Superseded to 59-5070-03)

$425.99

$

Usually ships in 3-6 days

0

8

Toro 59-4980

Bracket-Deflector L.H.
(Superseded to 74-0910-03)

$72.99

$

Usually ships in 3-6 days

0

9

Toro 59-5050

LH BRACKET ASM

$159.99

$

Usually ships in 3-6 days

0

10

Toro 59-5140

Blower Mount
(Superseded to 59-5140-03)

$200.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 62-6520

KNOB

$8.49

$

In Stock, only 1 left!

0

13

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

14

Toro 53-4530

Asm-Gear Box
(Superseded to 53-4530-03)

$1965.99

$

Usually ships in 3-6 days

0

15

Toro 59-5150

Cover-Gear Box
(Superseded to 59-5150-01)

$

$

Not available

16

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 59-5000

Bracket-Deflector R.H.
(Superseded to 74-0910-03)

$72.99

$

Usually ships in 3-6 days

0

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

22

Toro 59-5090

RH BRACKET ASM

$159.99

$

Usually ships in 3-6 days

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 44-5460

Plate-Bracket
(Superseded to 44-5460-03)

$18.99

$

Usually ships in 3-6 days

0

25

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 63-9710

SPACER-BEARING

$13.99

$

In Stock, only 1 left!

0

30

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 13-0059

Blower Housing (Incl. Ref. #4)
(Superseded to 13-0269)

$707.99

$

Usually ships in 3-6 days

0

32

Toro 37-6730

CUP-BEARING

$17.99

$

In Stock, only 2 left!

0

33

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

34

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 3 left!

0

35

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

36

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

37

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$21.99

$

Usually ships in 3-6 days

0
