30575 - Toro 72" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G ENGINE AIR HOUSING Parts Diagram

72" Side-Discharge Mower Deck

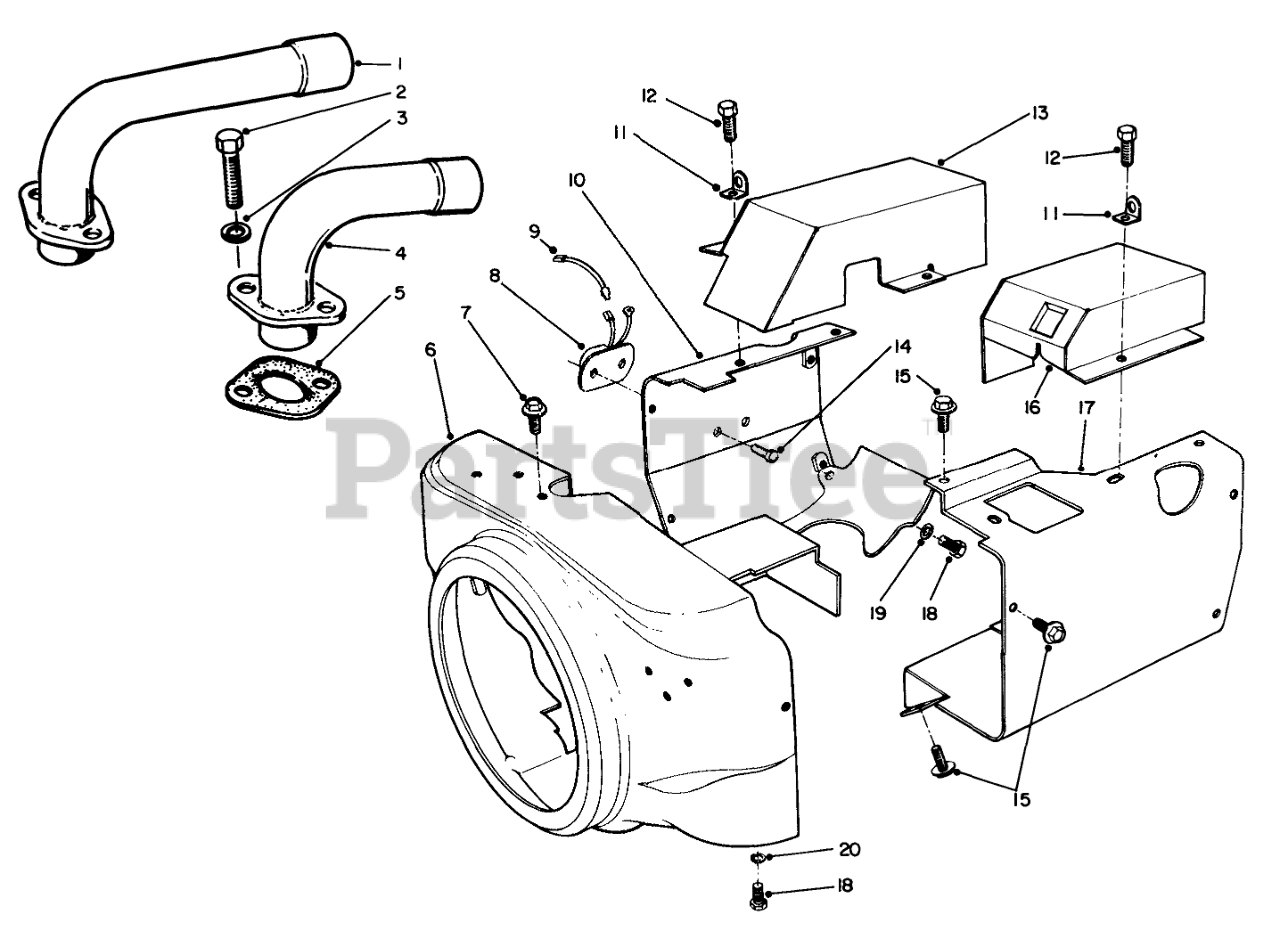

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G ENGINE AIR HOUSING Parts Diagram

  • Title
1

Toro 57-9240

EXHAUST TUBE

$

$

Not available

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 57-9230

EXHAUST TUBE

$

$

Not available

5

Toro 57-9210

GASKET

$17.99

$

In Stock, Qty 6

0

6

Toro 57-8700

Housing, Blower

$

$

Not available

7

Toro 59-0970

HEX HD CAPSCREW

$6.49

$

Usually ships in 3-6 days

0

8

Toro 57-9500

SWITCH ASM

$1049.99

$

Usually ships in 3-6 days

0

9

$

$

Not available

10

Toro 57-8680

CYLINDER HSG

$

$

Not available

11

Toro 59-0630

Bracket-Lift
(Superseded to 71-6080)

$27.99

$

Usually ships in 3-6 days

0

12

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

13

Toro 57-8640

Cover, Exhaust-Left

$

$

Not available

14

Toro 57-9780

Rivet, High Air Temp. Cut Off

$

$

Not available

15

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

16

Toro 57-8710

Cover, Exhaust-Right
(Superseded to 72-3980)

$

$

Not available

17

Toro 57-8690

RH CYL/ARM HSG

$

$

Not available

18

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

19

Toro 59-0830

WASHER-FLAT

$

$

Not available

20

Toro 59-0820

WASHER-FLAT

$

$

Not available
