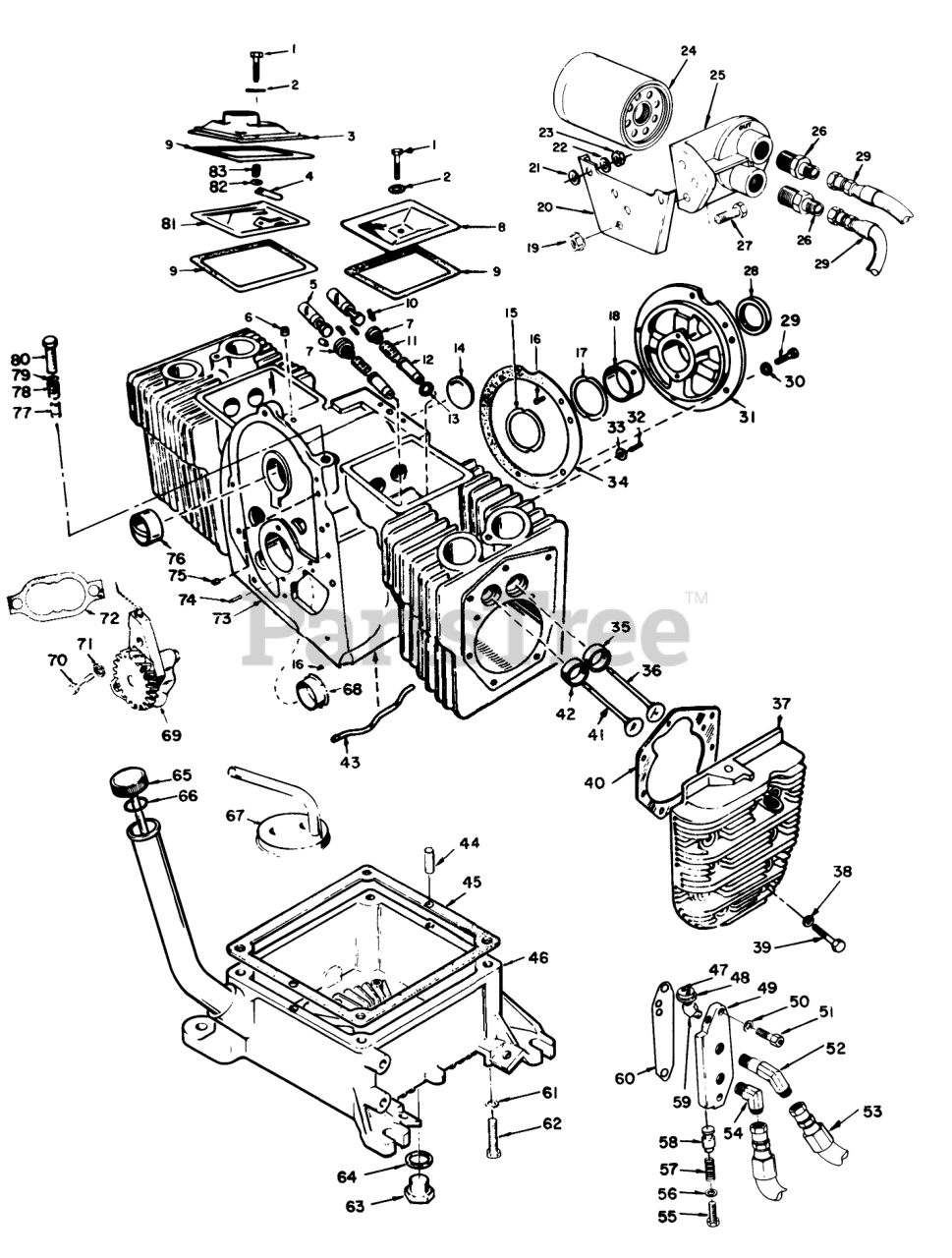

30575 - Toro 72" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G CYLINDER BLOCK AND OIL SYSTEM Parts Diagram

72" Side-Discharge Mower Deck

ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G CYLINDER BLOCK AND OIL SYSTEM Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 57-9740

WASHER

$

$

Not available

3

Toro 59-0160

VALVE COVER

$

$

Not available

4

Toro 57-8560

VALVE

$

$

Not available

5

Toro 57-8450

TAPPET

$

$

Not available

Toro 59-0260

TAPPET .002 OS

$

$

Not available

Toro 59-0270

.005" Oversize
(Superseded to 59-0260)

$

$

Not available

6

Toro 59-0770

PLUG-BREATHER HOLE

$

$

Not available

7

Toro 57-8270

ROTOCAP

$

$

Not available

8

Toro 59-0150

VALVE COVER

$

$

Not available

9

Toro 57-8280

GASKET

$11.99

$

In Stock, only 1 left!

0

10

Toro 57-8260

LOCK (SET OF 2)

$

$

Not available

11

Toro 57-8250

SPRING

$

$

Not available

12

Toro 57-8290

GUIDE

$

$

Not available

13

Toro 57-8240

GASKET

$

$

Not available

14

Toro 57-9690

PLUG

$8.49

$

Usually ships in 3-6 days

0

15

Toro 57-8160

WASHER

$

$

Not available

16

Toro 59-0730

PIN-DRIVE

$

$

Not available

17

Toro 57-8170

SHIM

$8.49

$

Usually ships in 3-6 days

0

18

Toro 57-8050

Bearing, Crankshaft Rear Standard (Incl. Ref. #15)

$236.99

$

Usually ships in 3-6 days

0

Toro 59-0020

Bearing, Crankshaft Rear .002 Undersize (Incl. Ref. #15)

$

$

Not available

Toro 57-8060

Bearing, Crankshaft Rear .010 Undersize (Incl. Ref. #15)

$

$

Not available

Toro 59-0030

Bearing, Crankshaft Rear .020 Undersize (Incl. Ref. #15)

$

$

Not available

Toro 59-0040

Bearing, Crankshaft Rear .030 Undersize (Incl. Ref. #15)

$

$

Not available

19

Toro 59-1150

SELF LOCKNUT

$

$

Not available

20

Toro 59-0300

BRACKET

$103.99

$

Usually ships in 3-6 days

0

21

Toro 50-0860

OIL SEAL

$

$

Not available

22

Toro 59-0840

WASHER

$

$

Not available

23

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

24

Toro 57-8530

FILTER-OIL
(Superseded to 108-3817)

$10.99

$

In Stock, only 3 left!

0

25

Toro 57-8540

BASE ASM

$

$

Not available

26

Toro 59-0660

MALE CONNECTOR

$

$

Not available

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 57-9590

SEAL

$41.99

$

In Stock, only 2 left!

0

29

Toro 59-0880

HEX HD CAPSCREW

$

$

Not available

30

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

31

Toro 57-8040

Plate-Bearing
(Superseded to 82-0020)

$

$

Not available

32

Toro 59-0780

STUD

$

$

Not available

33

Toro 57-9760

WASHER

$

$

Not available

34

Toro 57-8010

GASKET

$28.99

$

In Stock, only 2 left!

0

35

Toro 59-0050

STD INSERT

$

$

Not available

Toro 59-0060

Insert-Valve Seat .002" oversize
(Superseded to 59-0080)

$

$

Not available

Toro 59-0070

Plug-Breather Hole

$

$

Not available

Toro 59-0080

INSERT .010

$

$

Not available

Toro 59-0090

Insert-Valve Seat .025" oversize

$

$

Not available

36

Toro 57-8310

VALVE

$

$

Not available

37

Toro 59-0180

CYL RS HEAD

$

$

Not available

Toro 59-0170

Head, Cylinder-Left Side
(Superseded to 71-5810)

$609.99

$

Usually ships in 3-6 days

0

38

Toro 57-9770

WASHER

$

$

Not available

39

Toro 59-0890

HEX HD CAPSCREW

$

$

Not available

Toro 59-0900

Screw-HH
(Superseded to 71-6270)

$

$

Not available

40

Toro 57-8330

GASKET

$

$

Not available

41

Toro 57-8300

EXHAUST VALVE

$

$

Not available

42

Toro 59-0100

STD INSERT

$

$

Not available

Toro 59-0110

INSERT .002

$

$

Not available

Toro 59-0120

INSERT .005

$

$

Not available

Toro 59-0130

INSERT .010

$

$

Not available

Toro 59-0140

.025" Oversize
(Superseded to 79-6220)

$

$

Not available

43

Toro 59-0290

OIL TUBE

$

$

Not available

44

Toro 57-9680

DOWEL PIN

$

$

Not available

45

Toro 57-8090

GASKET

$37.99

$

Usually ships in 3-6 days

0

46

Toro 57-8100

OIL BASE ASM

$

$

Not available

47

Toro 59-0600

LEAD

$

$

Not available

48

Toro 57-9490

SWITCH

$

$

Not available

49

Toro 57-8510

Adapter,Oil Filter

$

$

Not available

50

Toro 57-9750

WASHER

$

$

Not available

51

Toro 59-0930

HEX SOCKET CAPSCREW

$

$

Not available

52

Toro 59-0680

MALE CONNECTOR

$87.99

$

Usually ships in 3-6 days

0

53

Toro 57-9520

FLEX HOSE ASM

$

$

Not available

54

Toro 59-0670

MALE CONNECTOR

$

$

Not available

55

Toro 3211-1

SCREW-HH

$

$

Currently unavailable

56

Toro 57-9760

WASHER

$

$

Not available

57

Toro 57-8500

Spring, Bypass
(Superseded to 59-0280)

$

$

Not available

58

Toro 57-8470

PLUNGER

$

$

Not available

59

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

60

Toro 57-8520

Gasket
(Superseded to 82-0520)

$

$

Not available

61

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

62

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

Usually ships in 3-6 days

0

63

Toro 57-8080

PLUG-OIL

$

$

Not available

64

Toro 57-8070

GASKET

$

$

Not available

65

Toro 57-8570

INDICATOR & CAP

$

$

Not available

66

Toro 57-9610

SEAL 0-RING

$7.99

$

In Stock, only 1 left!

0

67

Toro 57-8490

OIL CUP ASM

$

$

Not available

68

Toro 57-8020

KIT-BEARING, SLEEVE
(Superseded to 57-8030)

$

$

Not available

Toro 57-9360

BEARING-CRANKSHAFT

$

$

Not available

Toro 57-8030

BEARING KIT (.010)

$

$

Not available

Toro 57-9800

BEARING-CRANKSHAFT

$

$

Not available

Toro 59-0010

BEARING-CRANKSHAFT

$

$

Not available

69

Toro 57-8480

PUMP

$

$

Not available

70

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

71

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

72

Toro 57-8460

GASKET KIT

$

$

Not available

73

Toro 59-1190

Block Assy. (Incl. Ref. #6, 12-18, 29-31, 34-35, 42-43, 68, 74 & 76)
(Superseded to 114-2876)

$12052.99

$

Usually ships in 3-6 days

0

74

Toro 59-0750

PIN-GEAR COVER

$7.99

$

Usually ships in 3-6 days

0

75

Toro 59-0760

PLUG-CORE HOLE

$

$

Not available

76

Toro 57-8000

SLEEVE-BEARING

$153.99

$

Usually ships in 3-6 days

0

77

Toro 57-8470

PLUNGER

$

$

Not available

78

Toro 59-0280

SPRING

$

$

Not available

79

Toro 57-9760

WASHER

$

$

Not available

80

Toro 59-0910

SCREW-HH

$

$

Not available

81

Toro 59-0310

BAFFLE

$

$

Not available

82

Toro 59-0820

WASHER-FLAT

$

$

Not available

83

Toro 57-8550

SPRING

$

$

Not available

Toro 57-8320

Short Block
(Superseded to 114-2876)

$12052.99

$

Usually ships in 3-6 days

0

Toro 57-9370

GASKET KIT

$

$

Not available

Toro 57-9380

Gasket Kit, Complete Engine
(Superseded to 71-6290)

$

$

Not available
