30575 - Toro 72" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G CARBURETOR AND GOVERNOR CONTROL-VARIABLE SPEED (SIDE PULL) Parts Diagram

72" Side-Discharge Mower Deck

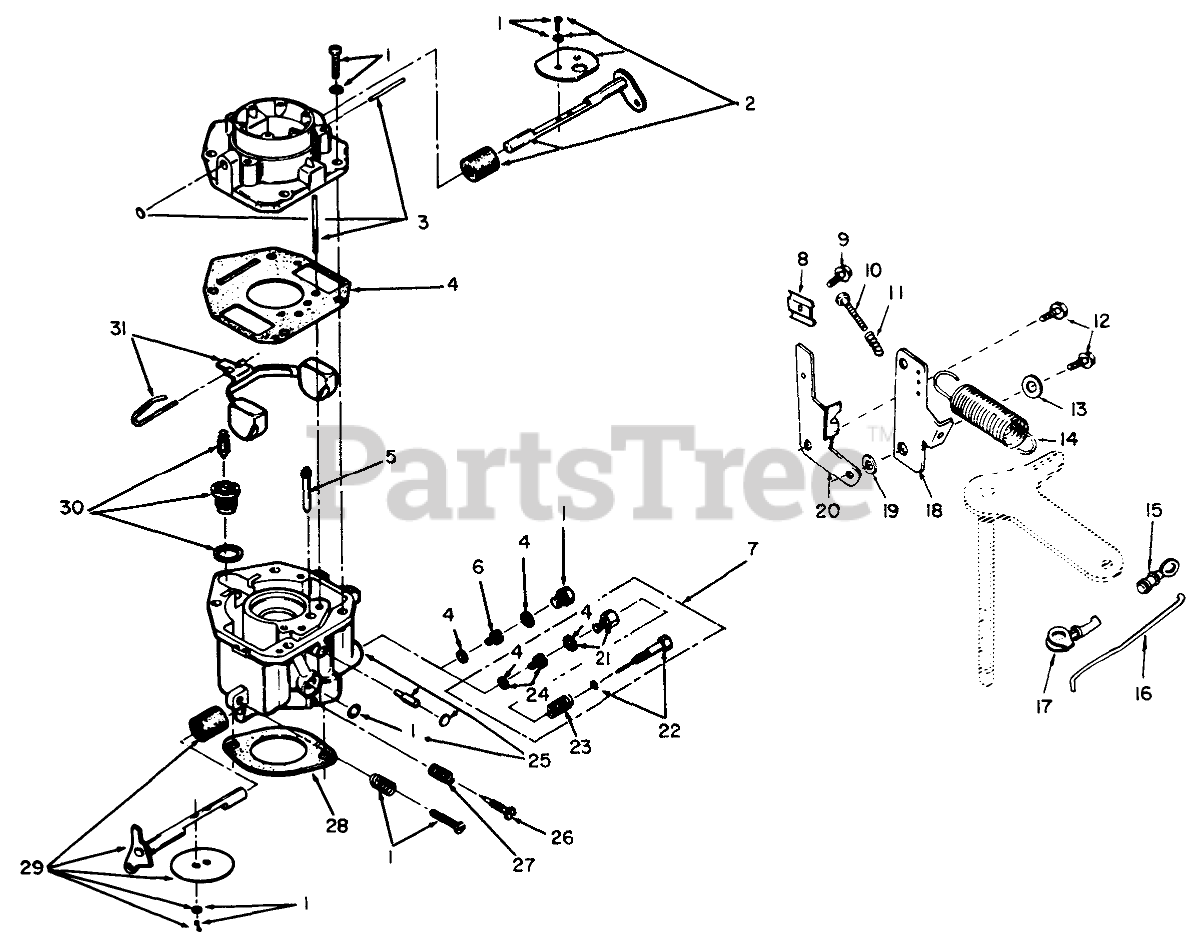

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G CARBURETOR AND GOVERNOR CONTROL-VARIABLE SPEED (SIDE PULL) Parts Diagram

  • Title

1

Toro 57-8910

SCREW & PLUG PKG

$

$

Not available

2

Toro 57-9030

Choke, Shaft Kit

$

$

Not available

3

Intake, Air

$

$

Not available

4

Toro 57-8940

GASKET PKG

$

$

Not available

5

Toro 62-2820

IDLE JET

$

$

Not available

6

Toro 57-9050

POWER JET

$

$

Not available

7

Toro 57-8950

Kit-Variable Jet

$

$

Not available

8

Toro 57-9190

CLIP

$

$

Not available

9

Toro 59-1000

TAPPING HEX HD CS

$

$

Not available

10

Toro 59-1030

SCREW-TAP

$

$

Not available

11

Toro 59-0430

SPRING

$

$

Not available

12

Toro 59-1010

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

13

Toro 59-0870

FLAT WASHER

$

$

Not available

14

Toro 57-9100

SPRING

$

$

Not available

15

Toro 57-9700

CLIP

$

$

Not available

16

Toro 57-9160

CONTROL ROD

$

$

Not available

17

Toro 57-9730

CLIP

$5.99

$

Usually ships in 3-6 days

0

18

Toro 57-9140

ARM

$

$

Not available

19

Toro 57-9120

BUSHING

$8.49

$

Usually ships in 3-6 days

0

20

Toro 57-9150

BRACKET-GOVERNOR

$

$

Not available

21

Toro 59-0320

Retainer, Power Needle (Incl. Gasket)

$

$

Not available

22

Toro 59-0340

NEEDLE

$

$

Not available

23

Toro 59-0330

SPRING

$

$

Not available

24

Toro 59-0350

PowerJet, Variable (Incl. Gasket)

$

$

Not available

26

Toro 57-8990

IDLE ADJ SCREW NEEDLE

$

$

Not available

27

Toro 57-8970

IDLE ADJ SPRING

$

$

Not available

28

Toro 57-9200

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

29

Toro 57-9060

Throttle Shaft Kit

$

$

Not available

30

Toro 57-8960

FLOAT VALVE

$

$

Not available

31

Toro 62-2800

FLOAT

$145.99

$

Usually ships in 3-6 days

0

Toro 57-9040

Carburetor, Complete (Incl. Mounting Gasket)
(Superseded to NN10204)

$

$

Not available

Toro 57-9020

Carburetor Kit

$

$

Not available

Toro 62-2810

Repair Kit
(Superseded to 82-0780)

$412.99

$

Usually ships in 3-6 days

0
