30575 - Toro 72" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) CUTTING UNIT MODEL NO. 30575 Parts Diagram

72" Side-Discharge Mower Deck

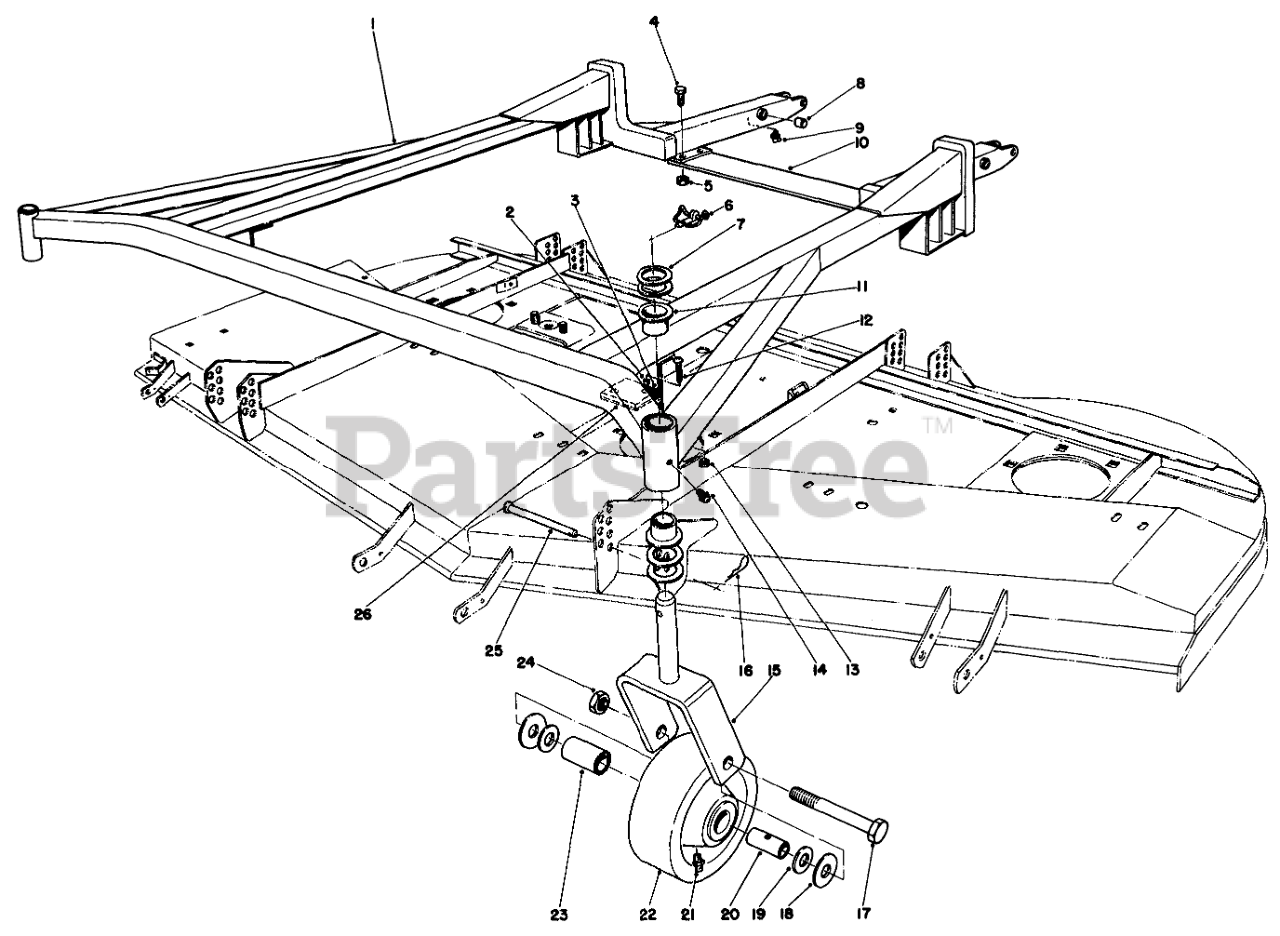

CUTTING UNIT MODEL NO. 30575 Parts Diagram

  • Title

1

Toro 57-0600

Suspension Frame (Incl. Ref. #4-5, 8-10 & 11)

$

$

Not available

2

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 40-0330

CUSHION-RUBBER

$10.99

$

Usually ships in 3-6 days

0

4

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

6

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

8

Toro 256-101

7/8 ID X 1.128 X 7/8 LG BSHG

$10.99

$

Usually ships in 3-6 days

0

9

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

10

Toro 57-0780

Plate-Lift Arm

$

$

Currently unavailable

11

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

12

Toro 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 40-0370

FORK-Castor
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

16

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

17

Toro 328-9

SCREW-HH

$21.99

$

In Stock, only 1 left!

0

18

Toro 27-1170

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

19

Toro 27-1180

BEARING RETAINER

$

$

Not available

20

Toro 27-1200

SPANNER BUSHING

$15.99

$

In Stock, only 3 left!

0

21

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

22

Toro 27-1050

Castor Wheel Assembly (Incl. Ref. #18-21 & 23)

$139.99

$

Usually ships in 3-6 days

0

23

Toro 27-1210

ROLLER BEARING

$

$

Not available

24

Toro 32153-6

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

25

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

26

Toro 42-6200

SHIM-CUSHION

$11.99

$

Usually ships in 3-6 days

0
