30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) PNEUMATIC CASTER WHEEL ASSEMBLY (OPTIONAL) Parts Diagram

72" Side-Discharge Mower Deck

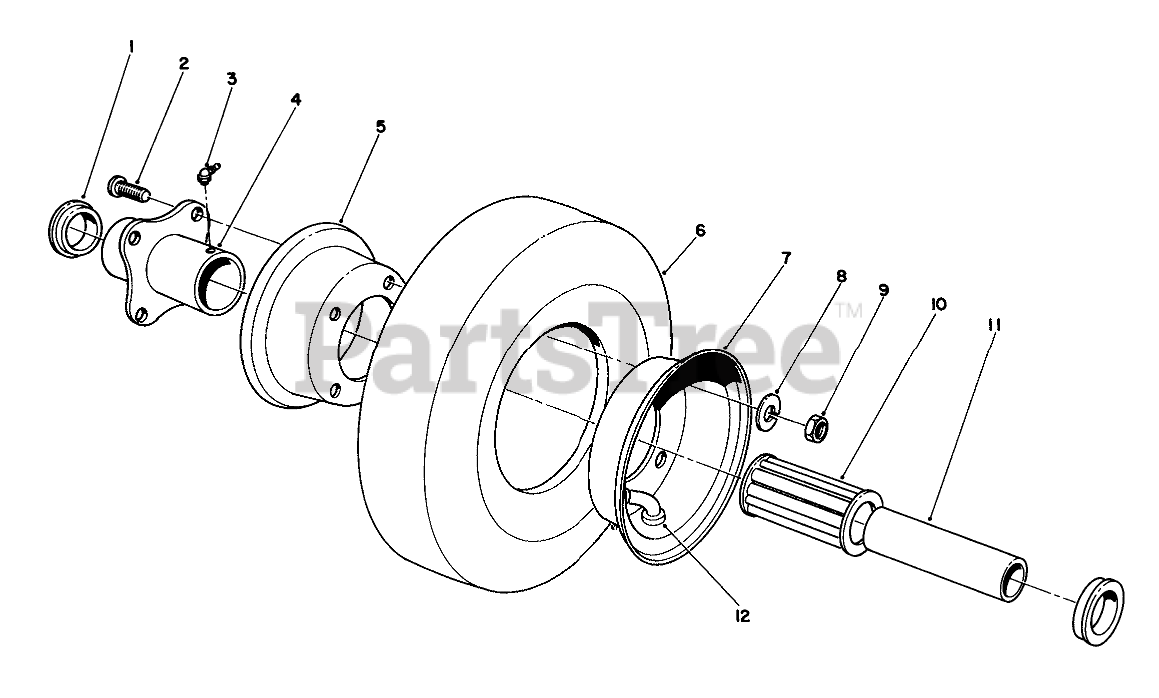

PNEUMATIC CASTER WHEEL ASSEMBLY (OPTIONAL) Parts Diagram

  • Title

1

Toro 54-8840

RETAINER

$6.99

$

In Stock, Qty 6

0

2

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 302-10

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

4

Toro 54-8830

HUB-CENTERED

$

$

Not available

5

Toro 54-8910

WHEEL HALF-FEMALE

$39.99

$

Usually ships in 3-6 days

0

6

Toro 54-8870

TIRE-8 Inch (4-PLY)

$82.99

$

Usually ships in 3-6 days

0

7

Toro 54-8900

WHEEL HALF-MALE

$39.99

$

Usually ships in 3-6 days

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

10

Toro 54-8850

BEARING-ROLLER

$29.99

$

In Stock, only 2 left!

0

11

Toro 54-8860

Bushing-Spanner
(Superseded to 27-1200)

$15.99

$

In Stock, only 1 left!

0

12

Toro 54-8880

TUBE

$

$

Not available

Toro 54-8820

Caster Assembly (Complete)
(Superseded to 12-1519)

Note: Not illustrated

$

$

Not available
