30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) HOOD ASSEMBLY Parts Diagram

72" Side-Discharge Mower Deck

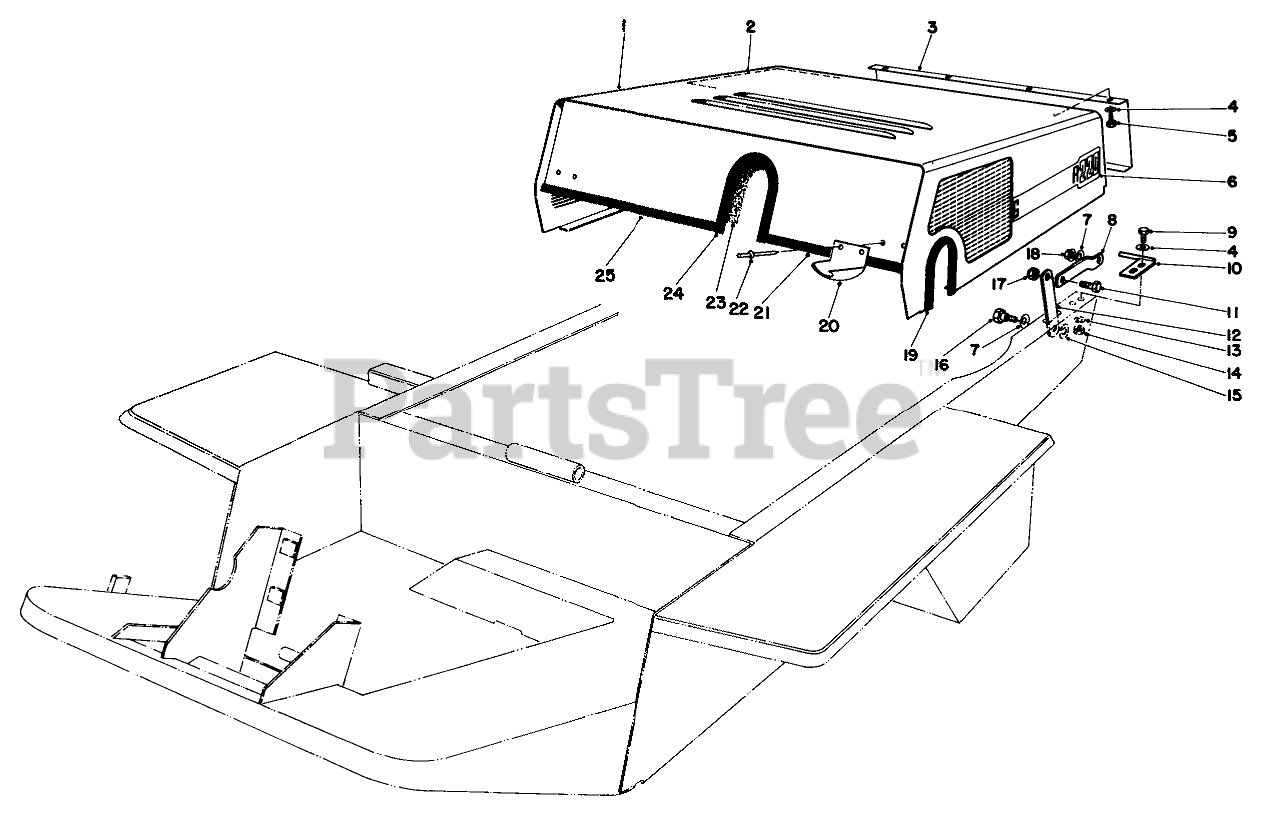

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5869

HOOD IN CARTON

$

$

Not available

2

Toro 44-9040

REAR HOOD FOAM STRIP

$108.99

$

Usually ships in 3-6 days

0

3

Toro 44-8830

Grille-Rear Panel
(Superseded to 44-8830-03)

$

$

Not available

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

6

Toro 52-1470

GM 220 DECAL

$

$

Not available

7

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

8

Toro 27-6800

Link Hood
(Superseded to 27-6800-01)

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 27-4830

PivotPin L.H.
(Superseded to 27-4830-01)

$

$

Not available

Toro 27-4800

Pin-Pivot R.H.
(Superseded to 27-4800-01)

Note: Not illustrated

$

$

Not available

11

Toro 3211-27

SCREW-HH

$

$

Not available

12

Toro 27-6810

Tie Hood
(Superseded to 27-6810-01)

$18.99

$

Usually ships in 3-6 days

0

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

15

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

16

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

17

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

18

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 44-9190

HOOD TRIM

$

$

Not available

20

Toro 60-8660

Keeper
(Superseded to 59-9740)

$39.99

$

Usually ships in 3-6 days

0

21

Toro 46-3320

HOOD TRIM

$

$

Not available

22

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

23

Toro 44-9030

FRT HOOD FOAM STRIP

$

$

Not available

24

Toro 38-4070

HOOD TRIM

$13.99

$

Usually ships in 3-6 days

0

25

Toro 38-4080

TRIM-HOOD

$

$

Not available
